Product Description

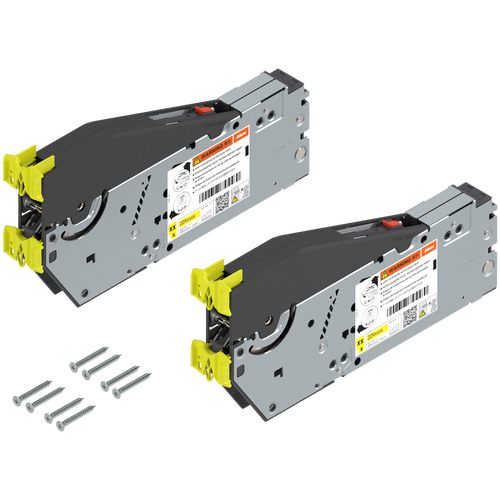

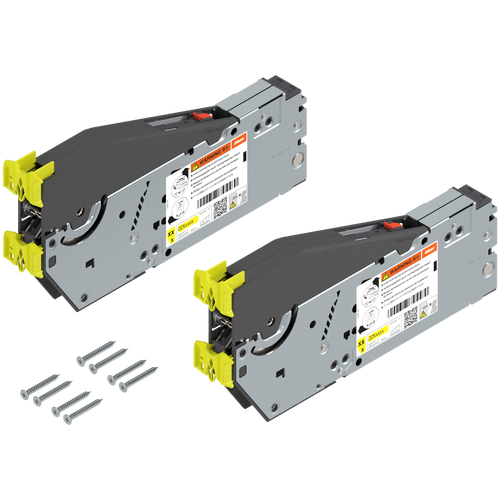

Blum AVENTOS HKi Standard Lift Mechanisms
Specifications:
‒ Cabinet heights from 162 mm (6-3/8") – 610 mm (24")
‒ Cabinet widths up to 1828 mm (72")
‒ Cabinet side panel thickness of minimum 16 mm (5/8")
Features:
Available fully integrated or semi-integrated, AVENTOS
HKi is easy to install, and no hinges are required.
A range of other features include:
‒ Soft and effortless closing, thanks to BLUMOTION
‒ Available with TIP-ON for handleless doors
‒ Light operating forces
‒ Integrated safety mechanism prevents lever arms
from opening or closing without door attached
‒ Three-dimensional door adjustment
The installation of AVENTOS HKi is made simple with a lift mechanism
that's secured into the cabinet side with the turn of a screw. Clip on
the door and use the three-dimensional adjustment feature to produce
perfect gap alignment.

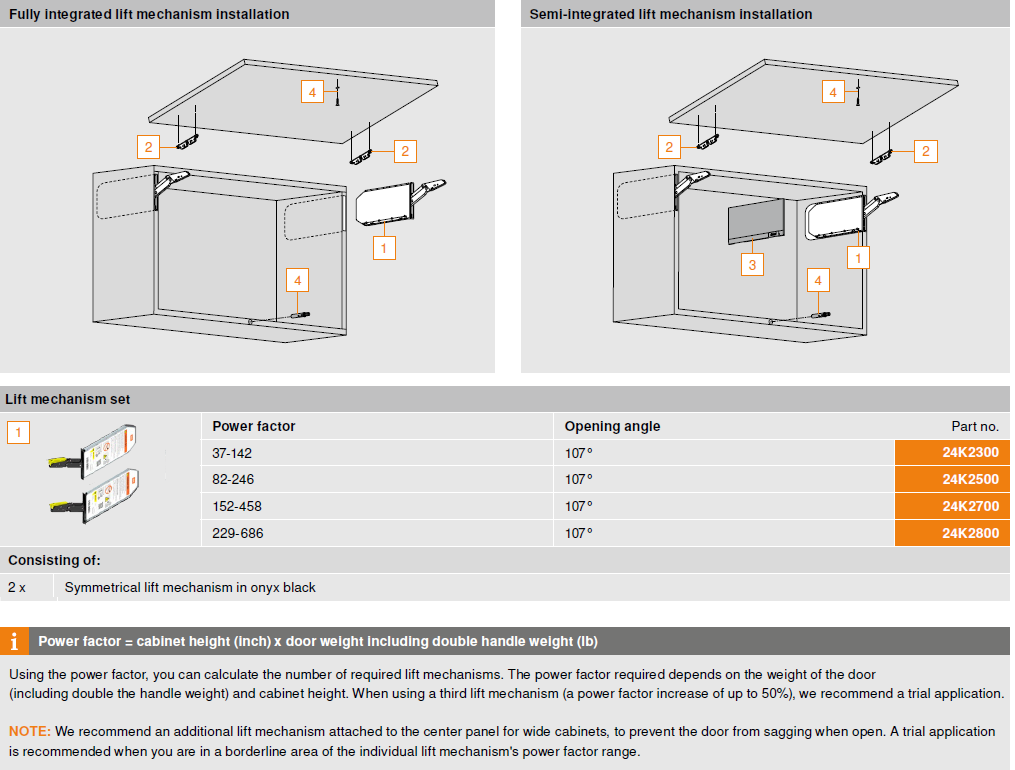

Using the power factor, you can calculate the number of required lift mechanisms. The power factor required depends on the weight of the door
(including double the handle weight) and cabinet height. When using a third lift mechanism (a power factor increase of up to 50%), we recommend a trial application.
NOTE: We recommend an additional lift mechanism attached to the center panel for wide cabinets, to prevent the door from sagging when open. A trial application
is recommended when you are in a borderline area of the individual lift mechanism's power factor range
