Product Description
SUGATSUNR HG-JG150 GRAVITY SOFT-CLOSE HINGE HANDED
• Lift-off hinges for easy installation and removal of a door. Automatically and quietly closes the doors without additional dampers or door closers.
• Sold in pairs/sets that includes a self-closing hinge and a soft-closing hinge.
• Automatically closes doors from its 65° open angle and features an adjustable damper to control the closing speed.
• The self-close function helps reduce the loss of energy by keeping doors shut for common applications such as cold storage equipment, laboratories, and food warmers.
• Includes covers to hide the mounting screws.
• Angled surface of covers designed to prevent dust and other particles to accumulate.
• Door position can be adjusted for depth and in a horizontal direction 1/8” (± 3 mm).
• Durability: passed 50,000 open/close cycles (private test).

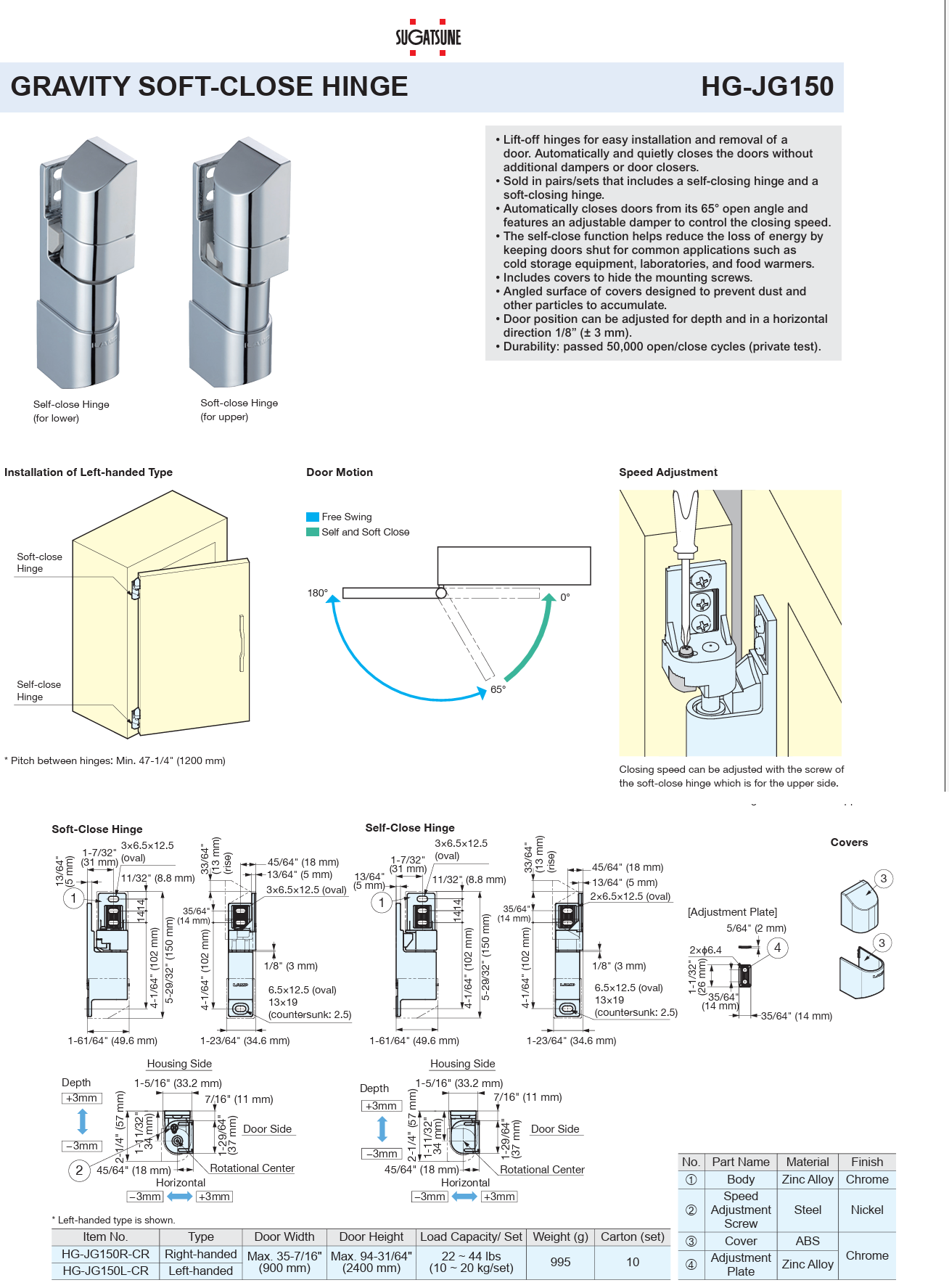

HG-JG150 Installation Instructions
