SUGATSUNE Inset pocket door systems Soft Close ALT-ST15 D360 SERIES
• Create a clean design with doors that can conveniently pocket away.
• Can manage doors up to 63” (1600mm) tall weighing up to 33 lbs (15 kg).
• 5-speed adjustable soft-closing dampers (Uses 360 Olympia Hinges).
• 5-stage angle adjustment eliminating sagging doors.
• L-Shaped connecting plate minimizing racking and reduces door sag.
• Available slide lengths: 16”, 19”, 22”, 24” and 28”.
• Durability: successfully passed 40,000 open/close private cycles.
Pocket Door System (Inset / Soft-Close) with door alignment adjustability.
Featuring Olympia soft-close hinges with 5-speed precision adjustability for door closing speed.
The damper hinges can be replaced with hinges with catch function.
The hanging angle of the door can be easily adjusted to counteract/balance and prevent door sag. When installing, the door can be lifted upward into 5 different positions.
The sliding system allows doors to recede inside cabinets. Doors will occupy minimal amount of space, providing full access to cabinet interior.
The fittings allow the door to retract further into the cabinet than the ALTST20-D360.
Durability: successfully passed 40,000 open/close private cycles.

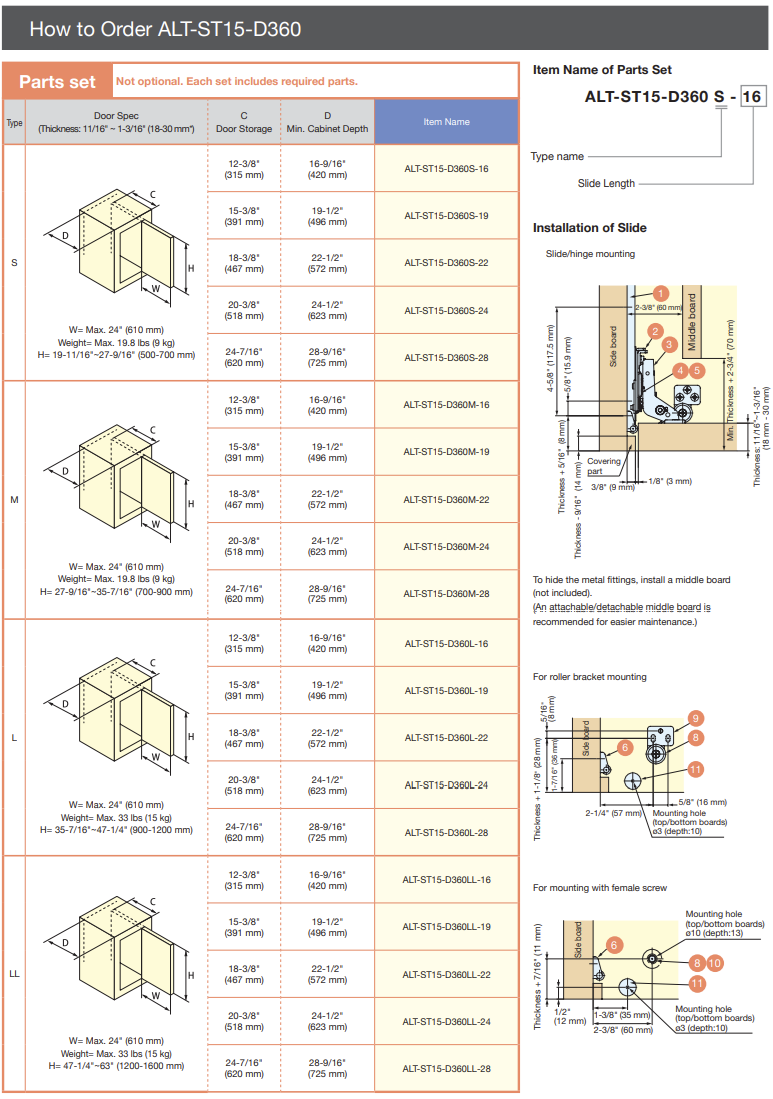

ALT-ST15-D360 COMPLETE DETAILS
