Product Description

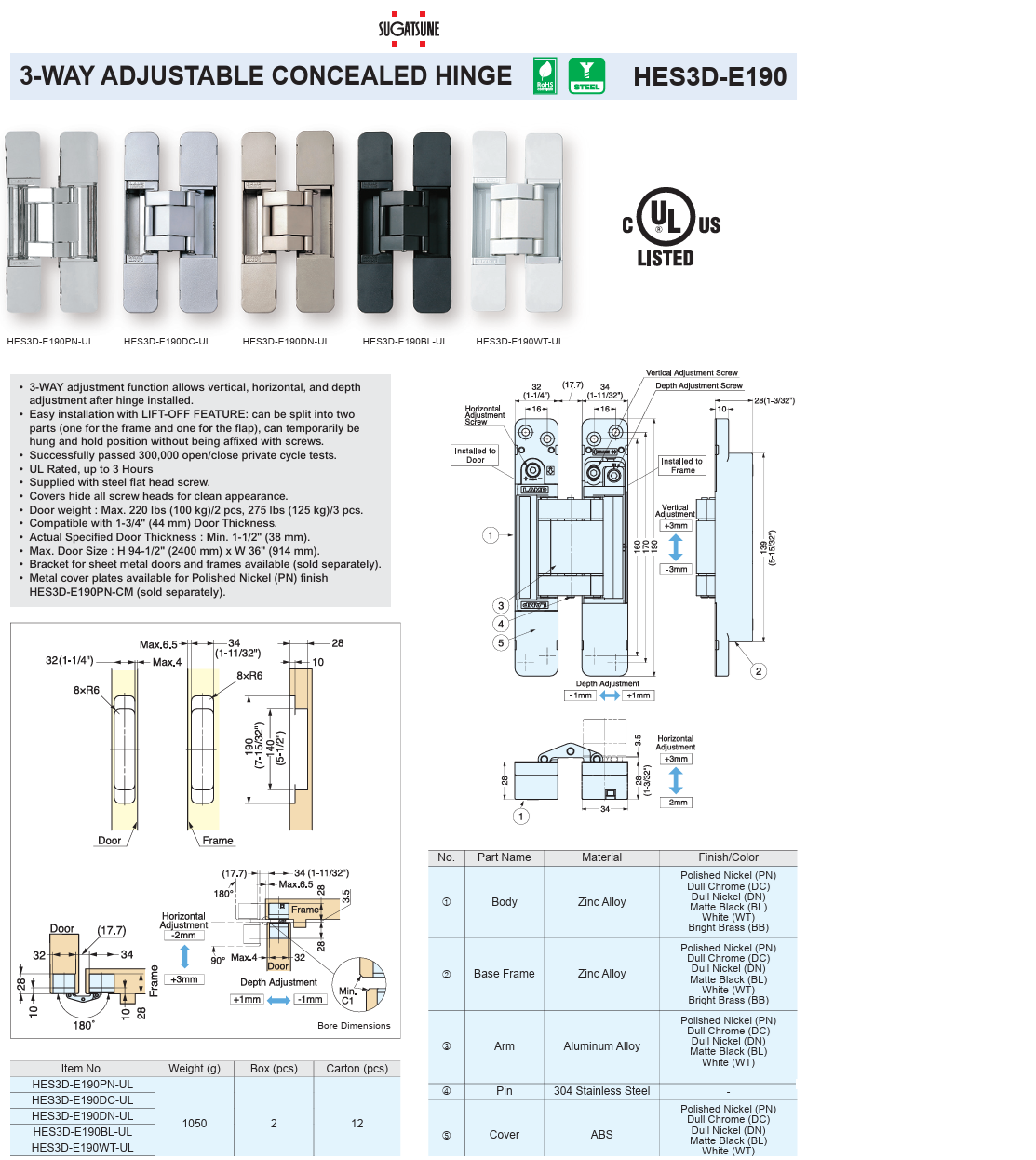

SUGATSUNE HES3D-E190 SERIES HINGES
• 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
• Easy installation with LIFT-OFF FEATURE: can be split into two parts (one for the frame and one for the flap), can temporarily be hung and hold position without being affixed with screws.
• Successfully passed 300,000 open/close private cycle tests.
• UL Rated, up to 3 Hours
• Supplied with steel flat head screw.
• Covers hide all screw heads for clean appearance.
• Door weight : Max. 100 kg (220 lbs)/2 pcs, 125 kg (275 lbs)/3 pcs.
• Door Thickness : Min. 38 mm (1-1/2″).
• Max. Door Size : H 2400 mm (94-1/2″) x W 900 mm (35-7/16″).
• Bracket for sheet metal doors and frames available (sold separately).
• Metal cover plates available for Polished Nickel (PN) finish HES3D-E190PN-CM (sold seprately).

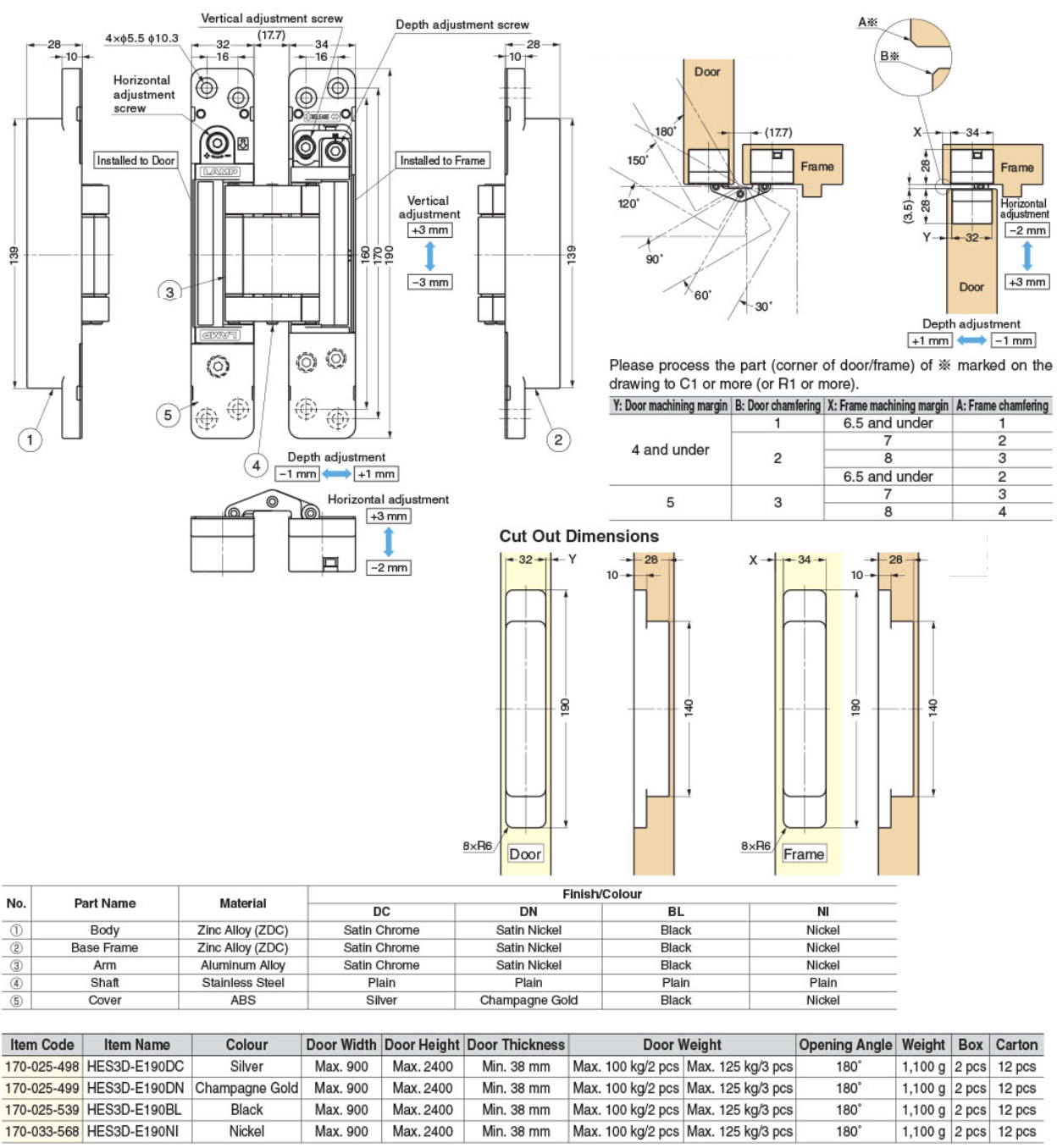

Has a long arm for a wider throw, allowing 3/8" (10 mm)
clearance for flush installation or 1/2" (13 mm) clearance for
installation with a molding. Opens to 180°
Features 3-way adjustability (vertical, horizontal and depth).
Flanges come apart for the door to be provisionally hung
for making adjustments. This provides a quick and easy
installation when ready for fixing screws.
Replacement screw covers available for all finishes.
*Only the HES3D-W190PN model includes metal cover
plates, all other models include plastic cover plates.
Supplied with steel flat head screw.
UL® Listed with 3 hour fire rating (DGR, DC, DN, WT, and BL)
