Product Description

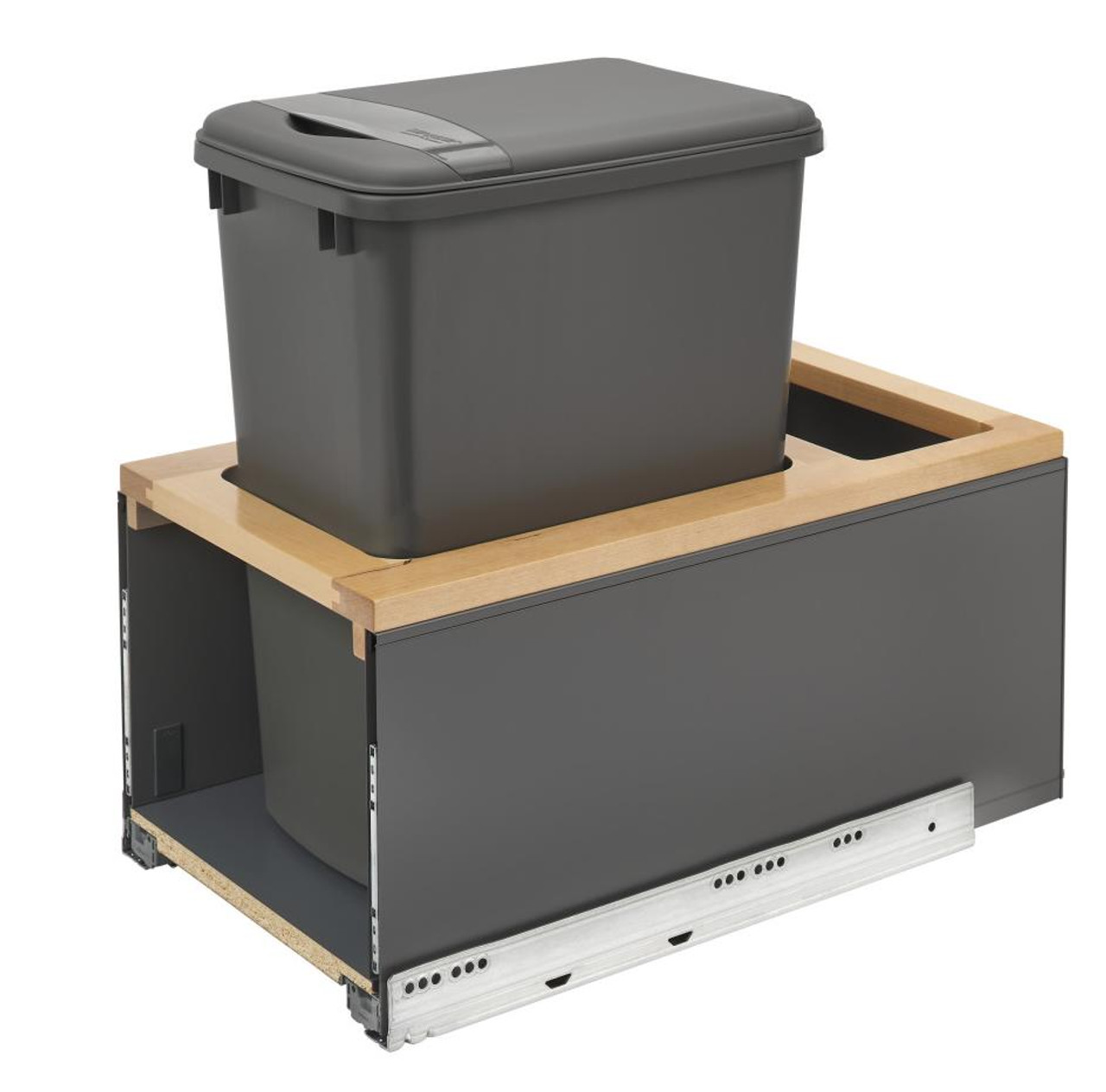

Rev-a-shelf Maple Bottom Mount LEGRABOX Waste Pullout w/Single Orion Gray 35 qt. Container and BLUMOTION Soft-Close for Full Access 15" Base 5LB-1535OGMA-113
The style possibilities are limitless with Rev-A-Shelf's 5LB Series LEGRABOX. Designed for full access 12", 15" and 18" base cabinets with 3/4" side panels, the LEGRABOX frame comes fully assembled in three configurations: orion gray with a natural maple semi-gloss finish insert, orion gray with a walnut satin finish insert or stainless steel with a painted black MDF insert. It features full-extension, TANDEM slides with BLUMOTION soft-close and could be used with TIP-ON or SERVO-DRIVE systems.
Series Name 5LB-1535OGMA-113
Short Description Maple Bottom Mount LEGRABOX Waste Pullout w/Single Orion Gray 35 qt. Container and BLUMOTION Soft-Close for Full Access 15" Base
Primary Color Maple
Frame Color Orion gray
Waste Container Color Orion gray
Primary Material Metal
Frame Material Metal
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 13 1/2"
Face Frame Min. Cab. Opening Depth (inches) 22"
Face Frame Min. Cab. Opening Height (inches) 20 5/8"
Frameless Min. Cab. Opening Width (inches) 13 1/2"
Frameless Min. Cab. Opening Depth (inches) 22"
Frameless Min. Cab. Opening Height (inches) 20 5/8"
Inset Min. Cab. Opening Width (inches) 13 1/2"
Inset Min. Cab. Opening Depth (inches) 22 3/4"
Inset Min. Cab. Opening Height (inches) 20 5/8"
Width (min to max): 13 1/2"
Depth (min to max): 21 23/32"
Height (min to max): 20 11/32"
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet door and side walls
Primary Finish Satin
TSCA Title VI Yes
Number of Waste Containers 1
Waste Container Capacity 35.000000
Lid Capacity 35.000000
Order Increment 1
Designed for full access 12", 15" and 18" base cabinets with 3/4" side panels
Single 30, 35 and 50 qt. and double 35 and 50 qt. polymer containers, black or orion gray
LEGRABOX frame, orion gray or stainless steel (9-1/2" F height)
Full-extension, LEGRABOX, 155 lb. rated, concealed slides with BLUMOTION soft-close
Top divider secures container(s), natural maple with semi-gloss finish, walnut with satin finish or painted black MDF
Fully assembled, just add your door front
Mounts to cabinet door and side walls
LEGRABOX door mount brackets
(1) matching lid*
TIP-ON or SERVO-DRIVE systems available (sold separately)
TSCA Title VI Compliant
