Product Description

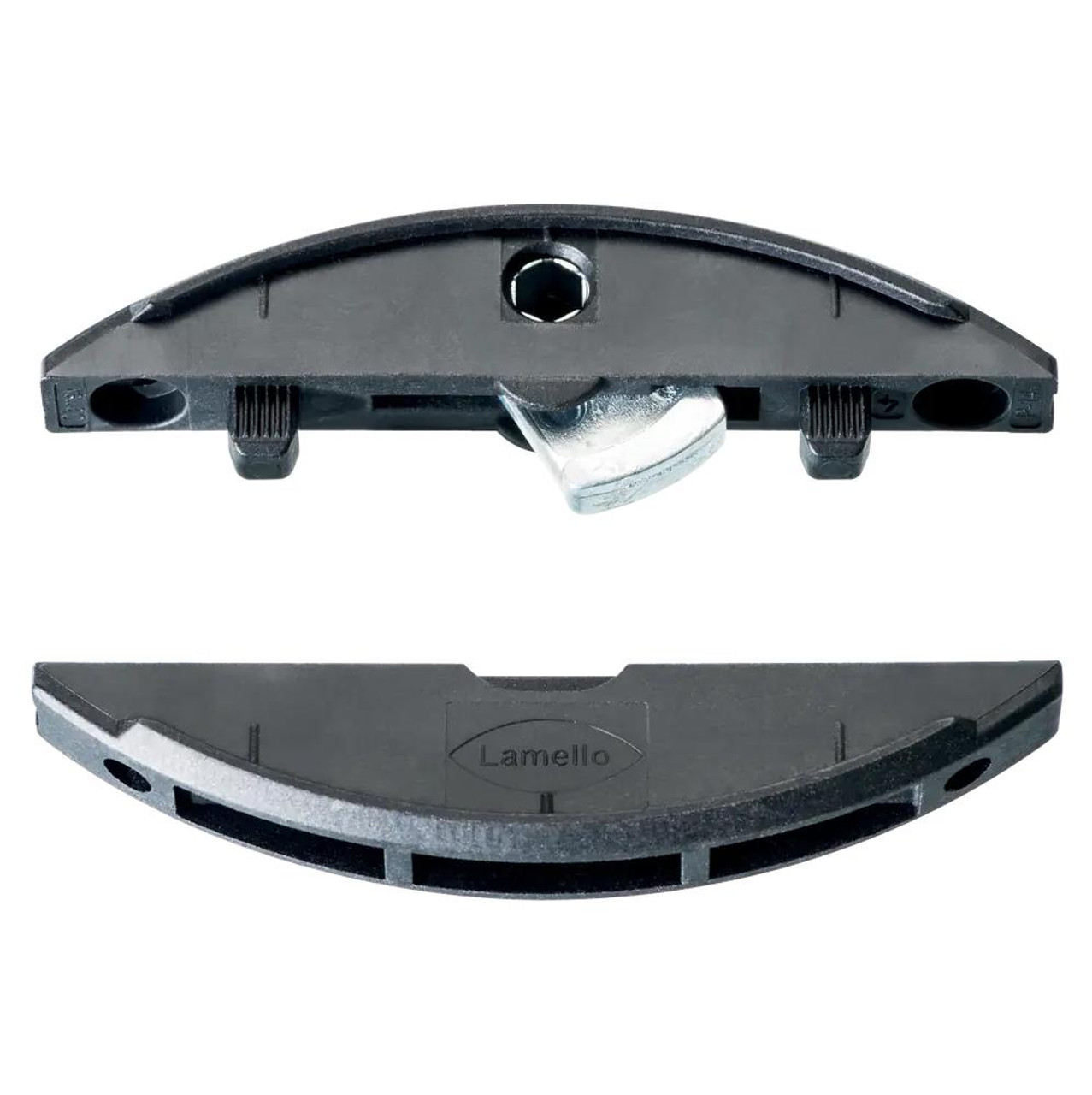

Lamello Clamex P-14 Detachable furniture connector
Detachable furniture connector, installed in seconds
Aesthetic look with the hardly visible 6 mm access hole
All-rounder for all angle and miter joints from 22.5° to 180°
High clamping force for perfectly closed joints
Ideal for open shelves, cupboards or wardrobes under sloping roofs
The Clamex P-14 is a detachable furniture connector and is anchored in the workpiece with the positively-locking P-System groove in a matter of seconds. Thanks to the minimalist 6 mm opening, the Clamex P-14 is powerfully tighjtened and released using a lever similar to a cam connector. The Clamex P-14 stands for perfect aesthetics due to the small access hole, which is just 6 mm in diameter and enables almost completely concealed joints. Designed for butt joints and mitre joints, the Clamex P-14 is also characterised by an extremely time-saving manufacturing process. The P-System groove is manufactured precisely either with the Zeta P2 biscuit joiner or with a CNC machining centre. The connectors can then be effortlessly inserted into the grooves, and the workpieces seamlessly assembled and firmly joined with a slight actuation of the lever. Waiting times are therefore completely eliminated and an assembled workpiece can be further processed straight away or prepared for shipping. Same as with the proven Lamello system, the Clamex P-14 can be used for wood joining at almost any angle and mitres. Unlike with a cam, obtuse, acute or flat angles can also be assembled and firmly joined. For this reason, the connector is often also used as a gluing aid for difficult-to-clamp workpieces.
Applications:
Detachable connecting fitting for panel materials in furniture construction
Gluing aid for mitres or difficult-to-clamp angles
In kitchen manufacturing for tall cupboards, carcass manufacturing or open shelf units
For interior fitting for built-in cupboards, wardrobes under stairs or sloping roofs
In furniture construction for high-quality furniture with mitre connections or special angles, wine racks or bookshelves
Powerful alternative to standard connecting fittings
Rapid prototype construction before starting a new furniture range
Butt joints from a material thickness of 15 mm
Mitre connections from a material thickness of 18 mm
Technical Specifications:
Installation tolerance longitudinal ± 1 mm
Installation tolerance radial ± 1 mm
Minimum workpiece width 75 mm
Minimum material thickness for edge cuts 12 mm
Minimum material thickness for surface cuts 15 mm
Minimum material thickness for centre wall machining 29 mm
Minimum material thickness for angle bisector 18 mm
Adjustment Lamello-System Max.
Adjustment P-System P-14
Tensile strength in particle board 1070 N
Tensile strength in MDF 1210 N
Tensile strength in beech 1870 N
Shear strength in particle board 490 N
Shear strength in MDF 600 N
Shear strength in beech 2940 N
Size (LxWxH) 64 x 27 x 9.7 mm
