Product Description

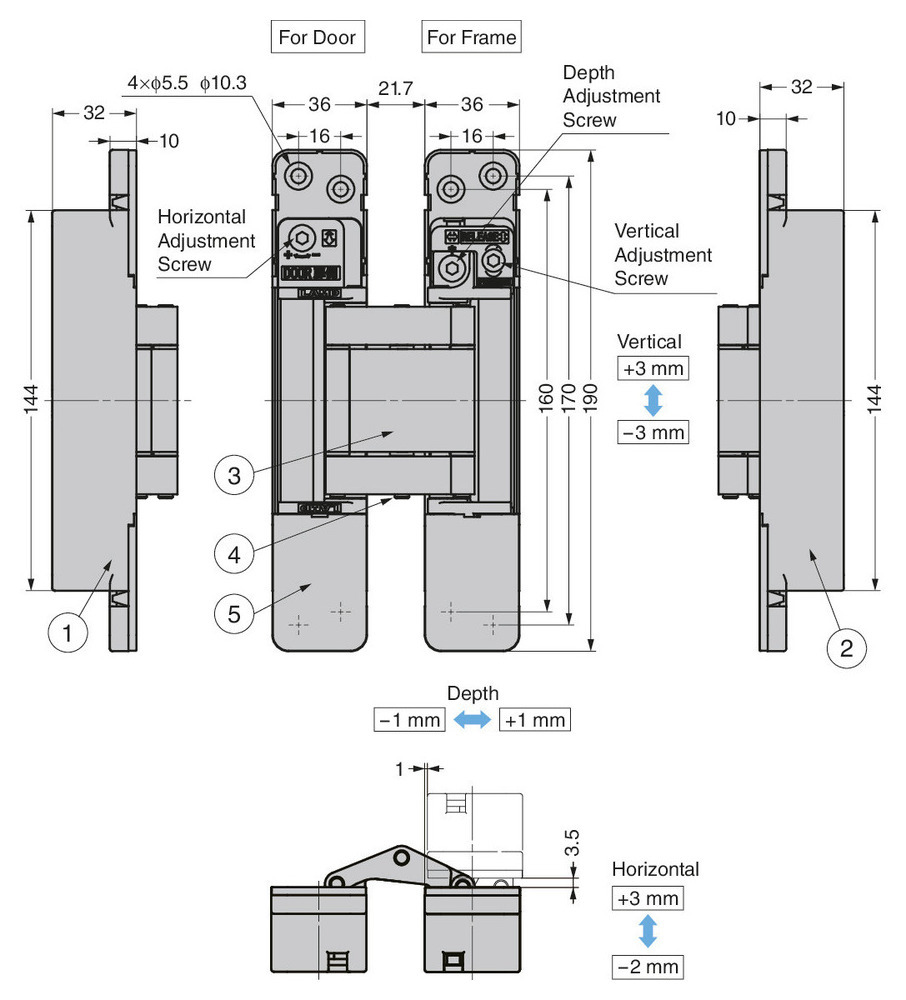

Sugatsune 3-WAY ADJUSTABLE CONCEALED HINGE FOR CLADDED DOORS
• Has a long arm for a wider throw, allowing 3/8″ (10 mm) clearance for flush installation or 1/2″ (13 mm) clearance for installation with a molding. Opens to 180°.
• Features 3-way adjustability (vertical, horizontal and depth).
• UL Rated, up to 3 Hours (DC, DN, and BL models only).
• Flanges come apart for the door to be provisionally hung for making adjustments. This provides a quick and easy installation when ready for fixing screws.
• Replacement screw covers available for all finishes.
• Only the HES3D-W190PN model includes metal cover plates*, all other models include plastic cover plates.
