Lid-Stays-Lifts-Supports-Dampers

Sugatsune L-FS140-BT MOUNTING BRACKET

Sugatsune L-FS140-BT MOUNTING BRACKET • Optional brackets for L-FS140 stay.• Insert the retainer and bracket firmly into the stay.* Do not re-use the bracket. Retainer may becomeloose once taken off from stay

Sugatsune L-SL140 MINI LID STAY (W/LOCK)

Sugatsune L-SL140 MINI LID STAY (W/LOCK) • Automatically locks lid/panel when fully opened.• Push button to release.• Can be installed individually or in pairs.• Non-Handed : Can be installed on left or right side.• Mounting...

Sugatsune L-SL140-BT MOUNTING BRACKET

Sugatsune L-SL140-BT MOUNTING BRACKET • Optional brackets for L-SL140 stay.• Insert the retainer and bracket firmly into the stay.* Do not re-use the bracket. Retainer may becomeloose once taken off from stay

Sugatsune LAD-BKT UNDER MOUNTING BRACKET

Sugatsune LAD-BKT UNDER MOUNTING BRACKET • Optional under mounting bracket for LAD-ST.

Sugatsune LB-CV215A LID STAY (CLEAN ROOM)

Sugatsune LB-CV215A LID STAY (CLEAN ROOM) • Holds lid or panel in fully opened position.• Plastic bushing and end cap minimizesparticles.• No metal-to-metal contact.• Ideal for clean room, semiconductor andfood industry applications...

Sugatsune LK LID STAY

Sugatsune LK LID STAY • Spring mechanism assists lifting door and holds inopen position.• Can be installed individually or in pairs.• Non-Handed : Can be installed on left or right side.

Sugatsune LSP LID STAY WITH LOCK

Sugatsune LSP LID STAY WITH LOCK • Automatically locks lid when fully opened.• Pull the locking knob to release lock.• Ideal for vibration or shock applications.• Can be installed individually or in pairs.• Non-Handed : Can be...

Sugatsune S-100T30 TORQUE LID STAY (FREE STOP)

Sugatsune S-100T30 TORQUE LID STAY (FREE STOP) • Friction torque lid stay holds lid open at any position.• Narrow profile for unobtrusive installation.• Torque Calculation :Torque = Door Height × 1/2 × Door Weight• Left-...

Sugatsune S-20 LID STAY

Sugatsune S-20 LID STAY • Lid stay with ball catch for lightweight doors.• Catch automatically holds lid in openedposition.• Can be installed individually or in pairs.• Handed: Specific left and right hand mounting.

Sugatsune S-21 LID STAY WITH CATCH

Sugatsune S-21 LID STAY WITH CATCH • Lid stay with ball catch for lightweight doors.• Catch automatically holds lid in opened position.• Can be installed individually or in pairs.• Handed: Specific left and right hand mounting.

Sugatsune S-AT01, S-AT02 SPRING LOADED LID STAY

Sugatsune S-AT01, S-AT02 SPRING LOADED LID STAY • Side wall mounted.• Spring mechanism assists in lifting door and holds in open position(10°~80°).• Can be installed individually or in pairs.• Non-Handed: Can be installed on...

Sugatsune S-ATJS BALANCE ADJUSTABLE SPRING LOADED LID STAY

Sugatsune S-ATJS BALANCE ADJUSTABLE SPRING LOADED LID STAY • Back panel mounted.• Spring mechanism assists in lifting door and holds in open position (10°~80°).• The balance adjustment allows for use in wider range of lids.•...

Sugatsune S-YT SPRING LOADED LID STAY

Sugatsune S-YT SPRING LOADED LID STAY • Spring mechanism assists in lifting door andholds in open position.• Handed: Specific left and right hand mounting.

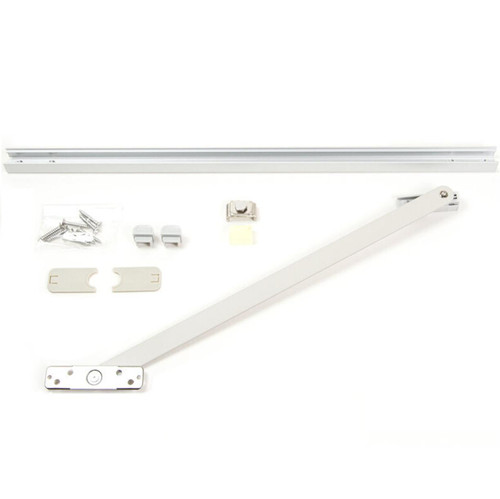

Sugatsune SAS-V450 OVERHEAD CONCEALED DOOR STOP MODELS

Sugatsune SAS-V450 OVERHEAD CONCEALED DOOR STOP MODELS • Adjustable opening angle between 0°-110°.• Non-handed.• Stop Only Type prevents door from overextending at yourpreferred angle.• Works with 1-3/8", 1-3/4", and 2" thick...

Sugatsune SAS-V450H OVERHEAD CONCEALED DOOR STOP & HOLDERS HOLD OPEN MODELS

Sugatsune SAS-V450H OVERHEAD CONCEALED DOOR STOP & HOLDERS HOLD OPEN MODELS Adjustable opening angle between 0°-110°.• Non-handed. • Hold Open Type holds door open at preferred angle andprovides stop function.• Works with...

Sugatsune SAS-V600 OVERHEAD CONCEALED DOOR STOP MODELS

Sugatsune SAS-V600 OVERHEAD CONCEALED DOOR STOP MODELS • Adjustable opening angle between 0°-110°.• Non-handed.• Stop Only Type prevents door from overextending at yourpreferred angle.• Works with 1-3/8", 1-3/4", and 2" thick...

Sugatsune SAS-V600H OVERHEAD CONCEALED DOOR STOP & HOLDERS HOLD OPEN MODELS

Sugatsune SAS-V600H OVERHEAD CONCEALED DOOR STOP & HOLDERS HOLD OPEN MODELS Adjustable opening angle between 0°-110°.• Non-handed. • Hold Open Type holds door open at preferred angle andprovides stop function.• Works with...

Sugatsune SDS-50G-CR FACE PLATE for DC-90 and DC-100 Damper Catch

Sugatsune SDS-50G-CR FACE PLATE for DC-90 and DC-100 Damper Catch Black or Chrome

Sugatsune SDS-C100 SOFT-DOWN STAY

Sugatsune SDS-C100 SOFT-DOWN STAY • For DOWNWARD-OPENING FLAP DOOR used withpiano, butt or drop hinges (SDH-001, SDH-P, P.238).• SDS-C100 (with catch) is designed to hold door inclosed position.• SDS-100 does not have a catch feature...

Sugatsune SDS-C301 FLAP STAY

Sugatsune SDS-C301N SOFT-DOWN STAY • For UPWARD-OPENING FLAP DOOR used withconcealed, piano or butt hinges.• SDS-C301N is designed to hold door in closedand opened position.• Non-handed.• Torque Calculation:Torque = Door Height...
