Invisible Door Hinges

Sugatsune 3-Way Adjustable Concealed Hinge HES3D-70

Sugatsune HES3D-70 3-WAY ADJUSTABLE CONCEALED HINGE Small HES series can be applied with Min. door thickness of 19 mm.Small bore depth, easy to cut out the door and frame.3-way adjustment function allows vertical, horizontal, and depth adjustment after...

Sugatsune 3-Way Adjustable Concealed Hinge HES3D-120

Sugatsune HES3D-120 3-WAY ADJUSTABLE CONCEALED HINGE This HES product has a minimal gap between the door and door frame for added safety. In Japan, it received the "Kids Design Award." The award program is run by a NPO called the Kids Design Association...

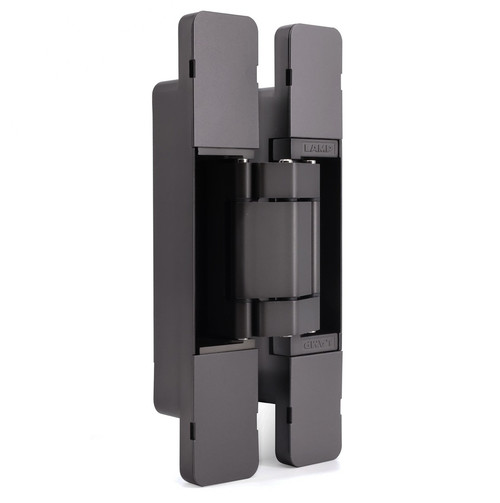

Sugatsune HES3D-E190 3-WAY ADJUSTABLE CONCEALED HINGE

SUGATSUNE HES3D-E190 SERIES HINGES• 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.• Easy installation with LIFT-OFF FEATURE: can be split into two parts (one for the frame and one for the...

Sugatsune HES2S-140-A125-XX 3-WAY ADJUSTABLE CONCEALED HINGE (SURFACE MOUNT)

SUGATSUNE HES2S-140-A125 Adjustable Concealed Hinge DESCRIPTION Surface mount on the door frame enables easy installation(no frame side mortising). Recommended Min. door thickness is 1-1/2” (38 mm). The opening angle is limited to 125°. Door...

HES3D-W190 3-WAY ADJUSTABLE CONCEALED HINGE for use on clad and thick doors

Sugatsune 3-WAY ADJUSTABLE CONCEALED HINGE FOR CLADDED DOORS• Has a long arm for a wider throw, allowing 3/8″ (10 mm) clearance for flush installation or 1/2″ (13 mm) clearance for installation with a molding. Opens to 180°.•...

Sugatsune HES3D-E160 3-WAY ADJUSTABLE CONCEALED DOOR HINGE

SUGATSUNE HES3D-E160 SERIES HINGES • Easy installation with symmetrical leaves and lift-off feature.• 3-WAY adjustment function allows vertical, horizontal, and depth adjustmentafter hinge installed.• Door Weight Capacity: Max. 55 kg (121...

Sugatsune BRACKET DOOR OR FRAME FOR HES3D-E190 FOR SHEET METAL HES3D-E190BKT

Sugatsune BRACKET OF HES3D-E190 FOR SHEET METAL HES3D-E190BKT Two Different Brackets DOOR HES3D-E190BKT-D or Frame HES3D-E190BKT-F

Sugatsune 3-Way Adjustable Concealed Hinge HES3D-90

Sugatsune HES3D-70 3-WAY ADJUSTABLE CONCEALED HINGE Small HES series can be applied with Min. door thickness of 19 mm.Small bore depth, easy to cut out the door and frame.3-way adjustment function allows vertical, horizontal, and depth adjustment after...

Sugatsune HGS3D-S160SH 3-WAY ADJUSTABLE STAINLESS STEEL CONCEALED DOOR HINGE HGS3D-S160SH

SUGATSUNE HGS3D-S160SH SERIES HINGES • 304 stainless steel construction for excellent resistance to corosion.• 3-way adjustable allowing for vertical, horizonta and depth adjustments after installation.• Hinge leaves are designed to...

Sugatsune SPECIALTY OVERLAY HINGE W/SOFT-CLOSE (25MM OVERLAY) (BLACK)

Our specialty soft-close overlay hinge (J160-D22-25T-BN), from our collection of European-style concealed cup hinges, offers 21-25 mm of overlay (with a bore distance of 8 mm). It is a wide angle hinge with 160 degrees of opening range and features a...

HES3D-120BKT STEEL DOOR BRACKET FOR HES3D-120

Sugatsune 3-WAY ADJUSTABLE CONCEALED HINGE HES3D-V135LGR

Sugatsune 3-WAY ADJUSTABLE CONCEALED HINGE HES3D-V135LGR Features• Small bore depth for compact assembly.• 3-way adjustment function allows vertical, horizontal, and depth adjustmentafter hinge installed.• Easy installation: Hinge can be...

Sugatsune HES-3030BR CONCEALED HINGE

Sugatsune CONCEALED HINGE HES-3030BR • Door weight: Max. 50 kg (110 lbs)/3 pcs• Door thickness: Min. 36 mm (1-7/16")• Suitable door size: H2000 mm × W900 mm(H78-3/4" × W35-7/16")• Successfully passed 200,000...

Sugatsune HES-3038BK CONCEALED HINGE

Sugatsune CONCEALED HINGE HES-3038BK • Door weight: Max. 45 kg (99 lbs)/3 pcs• Door thickness: Min. 36 mm (1-7/16")• Suitable door size: H2000 mm × W900 mm(H78-3/4" × W35-7/16")• Successfully passed 200,000...

Sugatsune HES3D-G120BKT GLASS DOOR BRACKET FOR HES3D-120

Sugatsune Glass Door Bracket for the HES3D-120 Series Hinges Allows the HES3D-120 hinge to be installed on glass doors.The silver and gold types come with screw covers in the same colours.For the black type, please use the ones included with HES3D-120BL.

Sugatsune HES3D-G90BKT GLASS DOOR BRACKET FOR HES3D-90

Sugatsune GLASS DOOR BRACKET HES3D-G90BKT • Glass door bracket for HES3D-90 series.• Hinge is completely hidden when looking through the glass.• Screw covers match the bracket with the hinge finish.• Glass thickness: 1/4" (5~6 mm)

Sugatsune HGS3D-S160SH 3-WAY ADJUSTABLE STAINLESS STEEL CONCEALED DOOR HINGE SQUARE COVER PLATE HGS3D-S160SH-SQ PLATE

SUGATSUNE HGS3D-S160SH SERIES HINGES SQUARE COVER PLATE HGS3D-S160SH-SQ PLATE • 304 stainless steel construction for excellent resistance to corosion.• 3-way adjustable allowing for vertical, horizonta and depth adjustments after installation...

Sugatsune SPECIALTY OVERLAY HINGE W/SOFT-CLOSE (25MM OVERLAY) (NICKEL)

Sugatsune SPECIALTY OVERLAY HINGE W/SOFT-CLOSE (25MM OVERLAY) (NICKEL) Our specialty soft-close overlay hinge (J160-D22-25T-NI), from our collection of European-style concealed cup hinges, offers 21-25 mm of overlay (with a bore distance of 8 mm). It is...
