Door Hardware

Sugatsune HES-3038BK CONCEALED HINGE

Sugatsune CONCEALED HINGE HES-3038BK • Door weight: Max. 45 kg (99 lbs)/3 pcs• Door thickness: Min. 36 mm (1-7/16")• Suitable door size: H2000 mm × W900 mm(H78-3/4" × W35-7/16")• Successfully passed 200,000...

Sugatsune HES3D-G120BKT GLASS DOOR BRACKET FOR HES3D-120

Sugatsune Glass Door Bracket for the HES3D-120 Series Hinges Allows the HES3D-120 hinge to be installed on glass doors.The silver and gold types come with screw covers in the same colours.For the black type, please use the ones included with HES3D-120BL.

Sugatsune HES3D-G90BKT GLASS DOOR BRACKET FOR HES3D-90

Sugatsune GLASS DOOR BRACKET HES3D-G90BKT • Glass door bracket for HES3D-90 series.• Hinge is completely hidden when looking through the glass.• Screw covers match the bracket with the hinge finish.• Glass thickness: 1/4" (5~6 mm)

Sugatsune HG-BF1 BUTT HINGE

Sugatsune BUTT HINGE HG-BF1 304 Stainless Steel In a Plain Finish • Rim on edges prevents pin removal.

Sugatsune HG-BH S/S DOUBLE ACTION HINGE

Sugatsune DOUBLE ACTION HINGE HG-BH • Opens 180° in both left and right direction.• Door Size: Max. W450 × H700 mm(W17-3/4" × H27-9/16")• Door Weight: Max. 2.6 kg/pair (5.7 lbs/pair).

SUGATSUNE HG-CHJ70 ANGLE ADJUSTABLE DETENT HINGE Black or White

SUGATSUNE HG-CHJ70 ANGLE ADJUSTABLE DETENT HINGE Black or White • Holds at 4 angles: -3˚, -90˚, 90˚ and 177˚ (factory setting). • The holding angle of 90˚ can be switched to 45˚ or 135˚. • Can be used both vertically and horizontally...

SUGATSUNE HG-CSH63 DETENT HINGE (WITH, WITHOUT DAMPER)

SUGATSUNE HG-CSH63 DETENT HINGE (WITH, WITHOUT DAMPER) • Detent hinge with built-in damper as anoption.• Detent will hold lid in open/closed positionwithout secondary support, and optionaldamper will provide soft closing.• Operating angle:...

SUGATSUNE HG-CV CLEAN ROOM HINGE (W/BUSHING)

SUGATSUNE HG-CV CLEAN ROOM HINGE (W/BUSHING) • No metal-to-metal contact.• Polyacetal bushings minimize particles.• Ideal for clean room application.• Door weight:HG-CV 65 Max. 8 kg/pair (17.6 lbs/pair)HG-CV100 Max. 13 kg/pair (28.6...

Sugatsune HG-CV127 HEAVY DUTY CLEAN ROOM LIFT-OFF HINGES

Sugatsune HG-CV127 HEAVY DUTY CLEAN ROOM LIFT-OFF HINGES • No metal-to-metal contact.• Special bearings minimize particles.• Successfully passed 200,000 open cycle test atthe following door size.- Door Weight: MAX. 100 kg/pair (220...

Sugatsune HG-CV65N CLEAN ROOM LIFT-OFF HINGE LEFT OR RIGHT HANDED

Sugatsune HG-CV65N CLEAN ROOM LIFT-OFF HINGE LEFT OR RIGHT HANDED • No metal-to-metal contact. • Polyacetalz bushings minimize particles. • Ideal for clean room application.

SUGATSUNE HG-CVT CLEAN ROOM TORQUE HINGE

SUGATSUNE HG-CVT CLEAN ROOM TORQUE HINGE • Holds the door at any angle. • Plastic caps prevent metal-to-metal friction and metal powder scattering. • Ideal for cleanroom application. • Can be used horizontally or vertically.

SUGATSUNE HG-ITHP HEAT RESISTANTTORQUE HINGE

SUGATSUNE HG-ITHP HEAT RESISTANTTORQUE HINGE • Suitable for use in heat-generating environments. Mounts externally to the machinery. • Operating temperature: 32ºF~212ºF • Recommended for dryers, lighting equipment,...

Sugatsune HG-ITM amd HT-ITS Covers

Sugatsune HG-ITM amd HT-ITS Covers

SUGATSUNE HG-JC70 SOFT CLOSE BI FOLDING HINGE

SUGATSUNE HG-JC70 SOFT CLOSE BI FOLDING HINGE • Center hinge integrates a self-closing and damping function to gently and reliably close folding doors. • Soft-closing speed can be adjusted with a hex key. • Quiet Folding Door Operation:...

SUGATSUNE HG-JH210 LIFT ASSIST HINGE

SUGATSUNE HG-JH210 LIFT ASSIST HINGE • Designed for industrial access panels.• Built-in damper keeps lid from slamming shut.• Passed private 30,000 open/close cycle tests.• Maximum torque: 210 kgf·cm (182 lbs·in)...

SUGATSUNE HG-KNT LIFT-OFF TORQUE HINGE

SUGATSUNE HG-KNT LIFT-OFF TORQUE HINGE • Hinge with friction torque lift off feature foreasy removal. Can be used vertically and horizontally.• Passed 20,000 open/close cycle tests. Application:—Laboratory equipment, OA equipment, FA...

Sugatsune HG-LSH HEAVY-DUTY STAINLESS STEEL LIFT-OFF HINGES (WELD-ON)

Sugatsune HG-LSH HEAVY-DUTY STAINLESS STEEL LIFT-OFF HINGES (WELD-ON) Lift-off, weld on hinge. Made from 1/4" (6 mm) thick stainless steel. Designed with greased bearings for smooth movement. Durability: passed 200,000 open/close private cycle test...

SUGATSUNE HG-MF COMPACT TORQUE HINGE Polyacetal MATERIAL WITH A 304 Stainless Steel Shaft

SUGATSUNE HG-MF COMPACT TORQUE HINGE Polyacetal MATERIAL WITH A 304 Stainless Steel Shaft • Free stop hinge in compact profile. • Passed 20,000 open/close cycle tests.

Sugatsune HG-MH TABLETOP PIANO HINGE

Sugatsune TABLETOP PIANO HINGE HG-MH Series Features• Opening angle 180Ëš thanks to the double joint mechanism.• Can be cut easily.• In case of cutting the hinge, attention should be paid to prevent the pin fromcoming out.

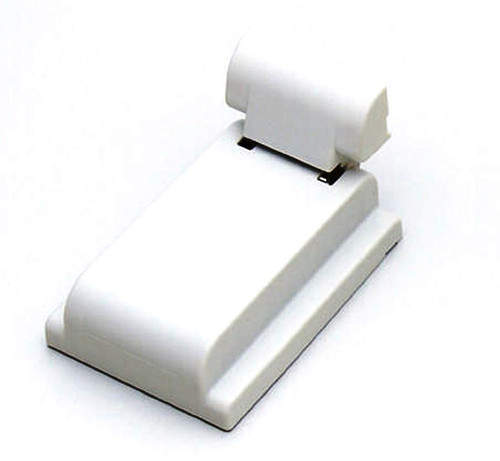

SUGATSUNE HG-PA180-9 Lift Assist Hinge, External Surface Mount

SUGATSUNE HG-PA180-9 Lift Assist Hinge, External Surface Mount • Powerassisthingetoreducetheefforttoopenthelid/door. • Externalsurfacemounted. • Softclosing. • Torqueadjustable(±11%). HG-PA180-9 & HG-PA210-9 PDF
