Torque Hinges

SUGATSUNE HG-KNT LIFT-OFF TORQUE HINGE

SUGATSUNE HG-KNT LIFT-OFF TORQUE HINGE • Hinge with friction torque lift off feature foreasy removal. Can be used vertically and horizontally.• Passed 20,000 open/close cycle tests...

SUGATSUNE HG-MF COMPACT TORQUE HINGE Polyacetal MATERIAL WITH A 304 Stainless Steel Shaft

SUGATSUNE HG-MF COMPACT TORQUE HINGE Polyacetal MATERIAL WITH A 304 Stainless Steel Shaft • Free stop hinge in compact profile. • Passed 20,000 open/close cycle tests.

SUGATSUNE HG-PTH30 PIVOT TORQUE HINGE

SUGATSUNE HG-PTH30 PIVOT TORQUE HINGE hg-pth30 Complete Details and Instructions

SUGATSUNE HG-RT TORQUE HINGE CONCEALED OR INVISIBLE 2 Torque Options

SUGATSUNE HG-RT TORQUE HINGE (CONCEALED)  Hinge is completely concealed when the door is closed. • Torque decreases as the opening angle increases, making easier to open the lid, refer to: Torque...

SUGATSUNE HG-S-HR50 HIGH-RIGIDITY SWIVEL TORQUE HINGE (Unbalanced Load Type) 3 Torque Options

SUGATSUNE HG-S-HR50 HIGH-RIGIDITY SWIVEL TORQUE HINGE (Unbalanced Load Type) 3 Torque Options • High rigidity swivel torque hinge supports unbalanced loads in a hanging installation. • Hinge can be...

SUGATSUNE HG-T70S30 TORQUE HINGE (DUAL AXIS)

SUGATSUNE HG-T70S30 TORQUE HINGE (DUAL AXIS) • Dual Axis: Free stop between 0°~200° (Tilting) and 360° (swiveling).• Provides torque stability in both directions.• Suitable for monitor screens.

SUGATSUNE HG-TA TORQUE HINGE

SUGATSUNE HG-TA TORQUE HINGE Passed 20,000 open/close private cycle test*Passed 50,000 open/close private cycle test**Free Stop Specification: —Operating temperature: 0°C~40°C Application: —LCD,...

SUGATSUNE HG-TA45HL & HG-TA45HR TORQUE HINGE With Wiring Hole

SUGATSUNE HG-TA45HL & HG-TA45HR TORQUE HINGE With Wiring Hole Free stop hinge with friction torque Consistent torque through out working range Opening angle 0°~180° Applications Ideal for indoor...

SUGATSUNE HG-TAS Series All Stainless Torque Hinges 3 Sizes and Handed

SUGATSUNE HG-TAS Series All Stainless Torque Hinges 3 Sizes and Handed • Torque hinge made entirely from stainless steel, making it suitable for use in corrosive environments. • For pair use. When...

SUGATSUNE HG-TASJ40 Series Adjustable All Stainless Torque Hinges 1 Size,Handed

SUGATSUNE HG-TASJ40 Series Adjustable All Stainless Torque Hinges 1 Size,Handed • Torque adjustable from 0 to 4 N•m (0 to 35.4 lbf•in). Factory setting is at 4.0 N•m. • For pair use: Please use the...

SUGATSUNE HG-TAWJ40 SPRING ASSIST Bi-Directional 180° Lift - HG-TAWJ40

SUGATSUNE HG-TAWJ40 SPRING ASSIST Bi-Directional 180° Lift - HG-TAWJ40 • Featuring free stop with lift-assist for lid opening & closing directions (0 ~ 180°), giving full access to the inside of...

SUGATSUNE HG-TBS Series All Stainless Torque Hinges 3 Sizes and Handed

SUGATSUNE HG-TBS Series All Stainless Torque Hinges 3 Sizes and Handed • Torque hinge is made entirely from stainless steel, making it suitable for use in corrosive environments. • For pair use. When...

SUGATSUNE HG-TBSJ40 Stainless Steel Torque Hinge HANDED

SUGATSUNE HG-TBSJ40 Stainless Steel Torque Hinge HANDED • Torque adjustable from 0 to 4 N•m (0 to 35.4 lbf•in). Factory setting is at 4.0 N•m. • For pair use: Please use the same torque in both...

SUGATSUNE HG-TC45HL & HG-TC45HR TORQUE HINGE With Wiring Hole

SUGATSUNE HG-TC45HL & HG-TC45HR TORQUE HINGE With Wiring Hole  Hole in hinge knuckle allows for management of cable wire.  Passed 50,000 open/close cycle test.

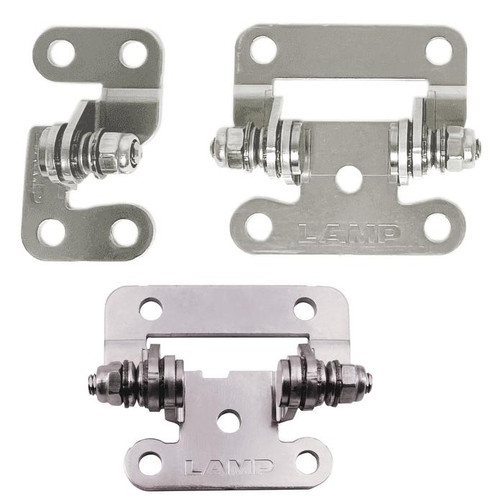

SUGATSUNE HG-TE TORQUE HINGES

SUGATSUNE HG-TE TORQUE HINGES Free-stop (Holds lid in place at any angle) • Torque hinge that can be used for horizontal or vertical applications. • Featuring free stop: holds lid or cover at any...

Sugatsune HG-TLS30-50-300 TORQUE PIANO HINGE

Sugatsune HG-TLS30-50-300 TORQUE PIANO HINGE • Unique long type torque piano hinge. • Free stop function maintains a safe working environment. • Reduces gaps between housings and doors for TORQUE...

SUGATSUNE HG-TQA 1-WAY TORQUE HINGE

SUGATSUNE HG-TQA 1-WAY TORQUE HINGE • Friction in one direction only:HG-TQA90-A: free rotation when turnedcounterclockwise, constant torque is applied whenturned clockwise.HG-TQA90-B: free rotation...

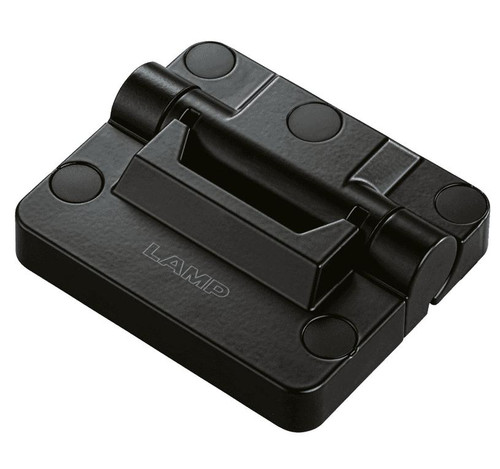

SUGATSUNE HG-TQJD50 ONE WAY DAMPER TORQUE HINGES (ADJUSTABLE) Internal and External Mounting Options

SUGATSUNE HG-TQJD50 ONE WAY DAMPER TORQUE HINGES (ADJUSTABLE) Internal and External Mounting Options • Torque hinge with damper. • The torque adjustment feature enables lids and doors to stop at any...

SUGATSUNE HG-TQS15 One Way Torque Hinges Opening or Closing Direction Torque Options

SUGATSUNE HG-TQS15 One Way Torque Hinges Opening or Closing Direction Torque Options • Two options for torque direction: - Type A: has torque (free stop) in opening direction. - Type B: has torque...

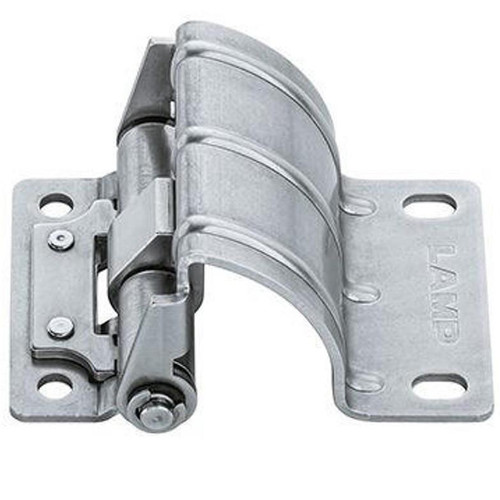

SUGATSUNE HG-TQU15 ONE WAY CONCEALED TORQUE HINGE - Torque option in Opening or Closing Direction

SUGATSUNE HG-TQU15 ONE WAY CONCEALED TORQUE HINGE - Torque option in Opening or Closing Direction • Two options for torque direction: - Type A: has torque (free stop) in opening direction. - Type B:...
