Product Description

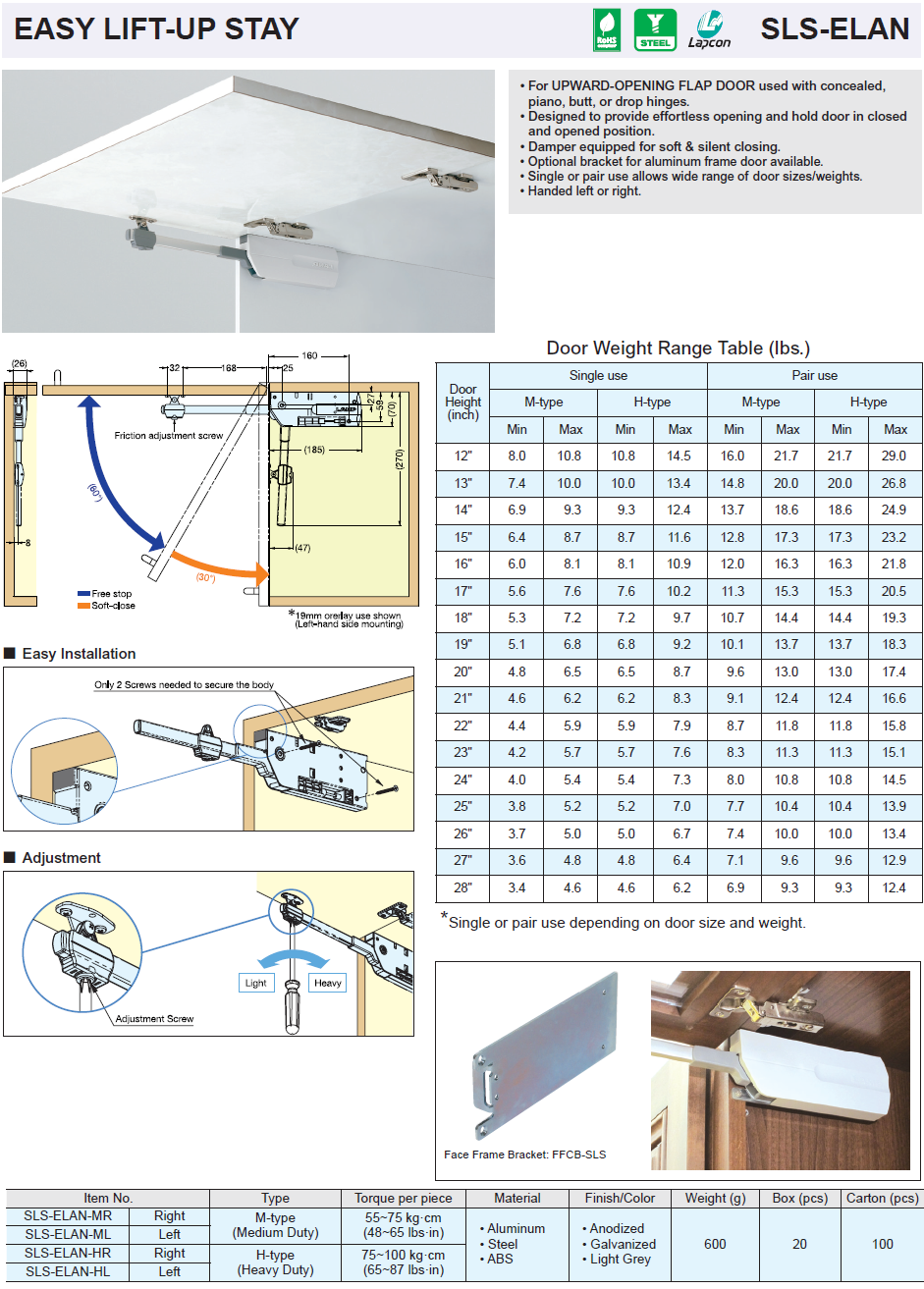

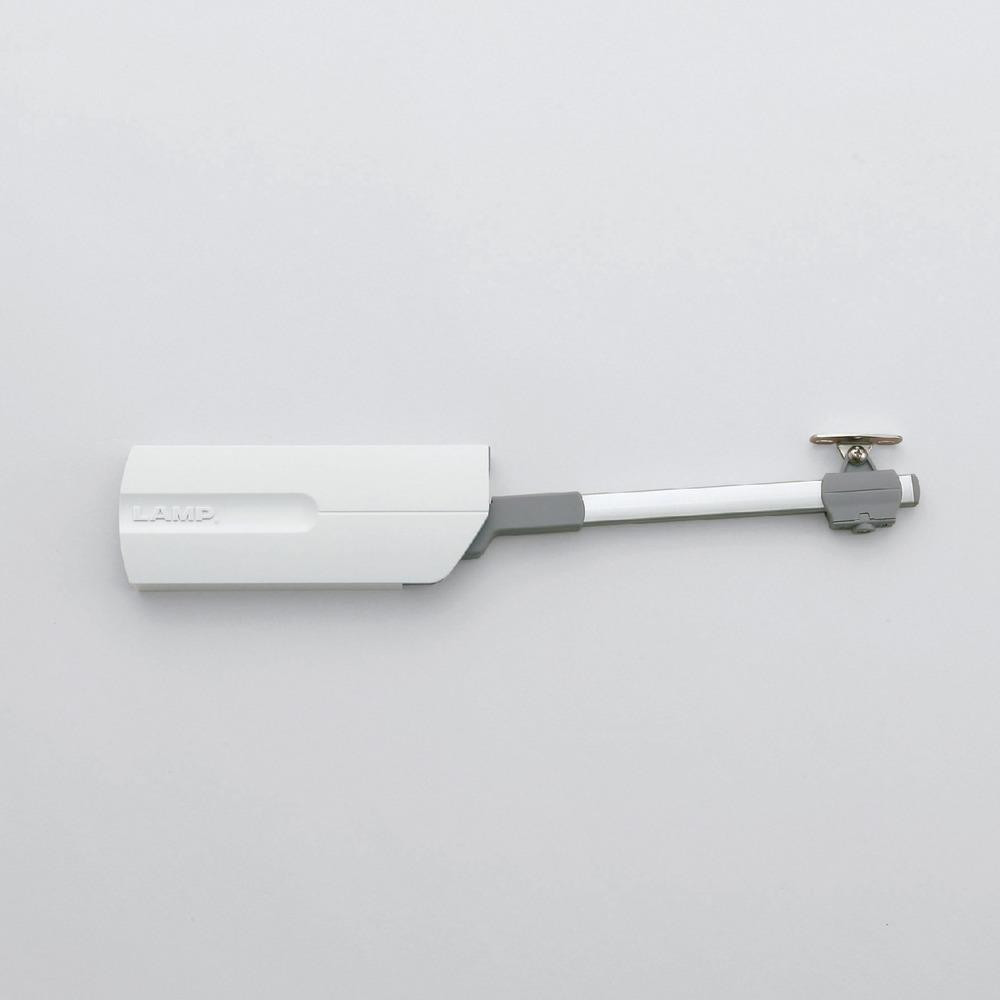

Sugatsune SLS-ELAN EASY LIFT-UP STAY
• For UPWARD-OPENING FLAP DOOR used with concealed,
piano, butt, or drop hinges.
• Designed to provide effortless opening and hold door in closed
and opened position.
• Damper equipped for soft & silent closing.
• Optional bracket for aluminum frame door available.
• Single or pair use allows wide range of door sizes/weights.
• Handed left or right.
For upward-opening flap doors.
Equipped with:
-Lift assist (to make flap doors feel lighter)
-Free stop (holds position at any angle from 30° to fully open)
- Soft-closing (slows down closing speed to prevent slamming between 0° and 30°)
Recognized by LGA for 40,000 cycles
Easy alignment: When doing an 19mm overlay install, simply press the body to the top of the interior of the cabinet and align the front plate flush with the cabinet.
Easy installation: Can be installed on both sides from the front.
Can be used singly or in pairs to accomodate a wide range of door sizes/weights
Bracket (sold separately) available for aluminium frame flap doors.
Please contact us directly for information about what types of hinges can be used with SLS-ELAN
