Product Description

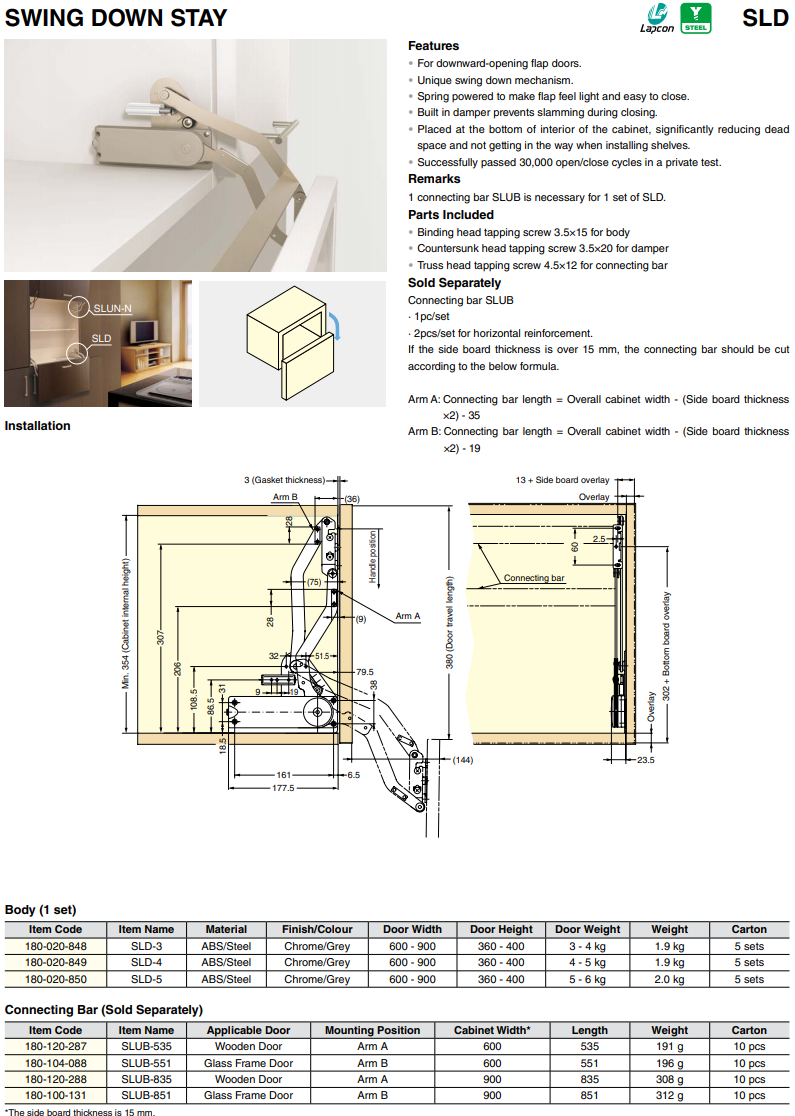

Sugatsune SLD SWING DOWN STAY
Features
• For downward-opening flap doors.
• Unique swing down mechanism.
• Spring powered to make flap feel light and easy to close.
• Built in damper prevents slamming during closing.
• Placed at the bottom of interior of the cabinet, significantly reducing dead
space and not getting in the way when installing shelves.
• Successfully passed 30,000 open/close cycles in a private test.
Remarks
1 connecting bar SLUB is necessary for 1 set of SLD.
Parts Included
• Binding head tapping screw 3.5×15 for body
• Countersunk head tapping screw 3.5×20 for damper
• Truss head tapping screw 4.5×12 for connecting bar
Sold Separately
Connecting bar SLUB
· 1pc/set
· 2pcs/set for horizontal reinforcement.
If the side board thickness is over 15 mm, the connecting bar should be cut
according to the below formula.
Arm A: Connecting bar length = Overall cabinet width - (Side board thickness
×2) - 35
Arm B: Connecting bar length = Overall cabinet width - (Side board thickness
×2) - 19
