Product Description
Sugatsune SAS-V450H OVERHEAD CONCEALED DOOR STOP & HOLDERS HOLD OPEN MODELS
Adjustable opening angle between 0°-110°.
• Non-handed.
• Hold Open Type holds door open at preferred angle and
provides stop function.
• Works with 1-3/8", 1-3/4", and 2" thick doors.
• Works on Door Widths of 22-27/32" thru 36"
• Combine the SAS-V with our HES2S hinges to achieve a
flush, door design. (See installation guide for compatible
combinations.)

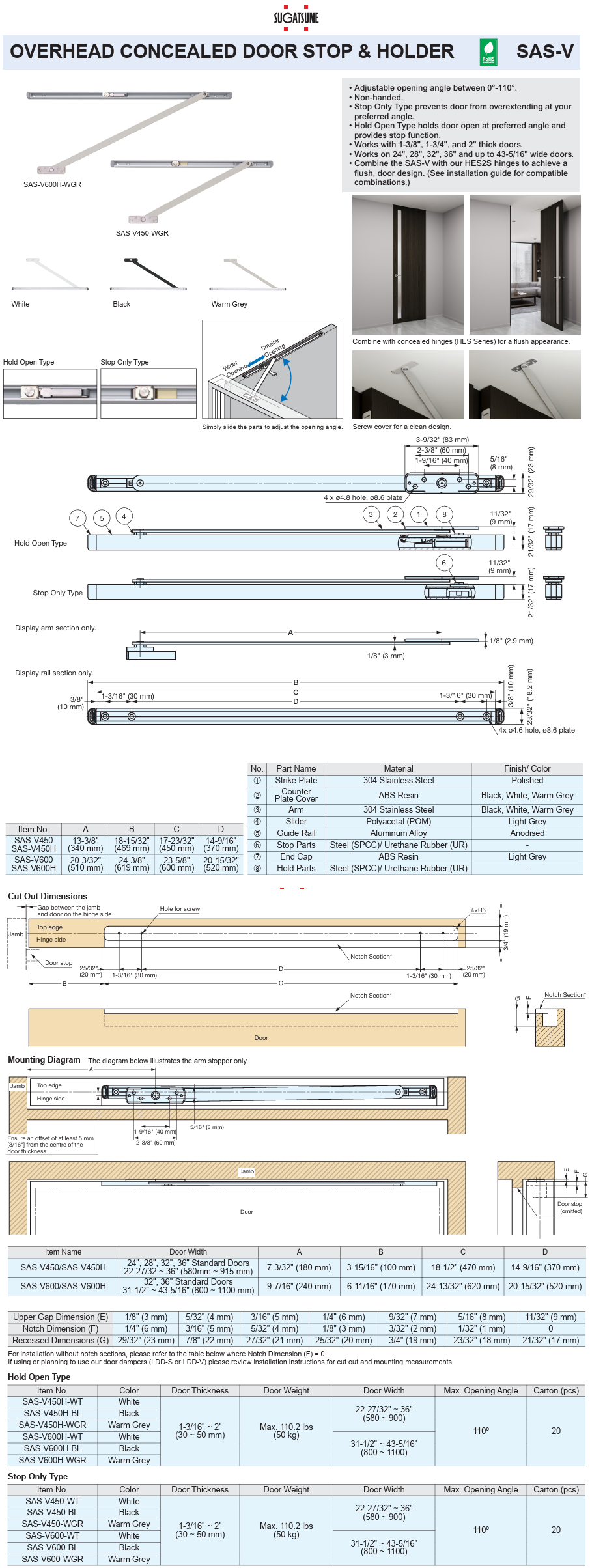

SAS-V Series Installation Instructions
