Product Description

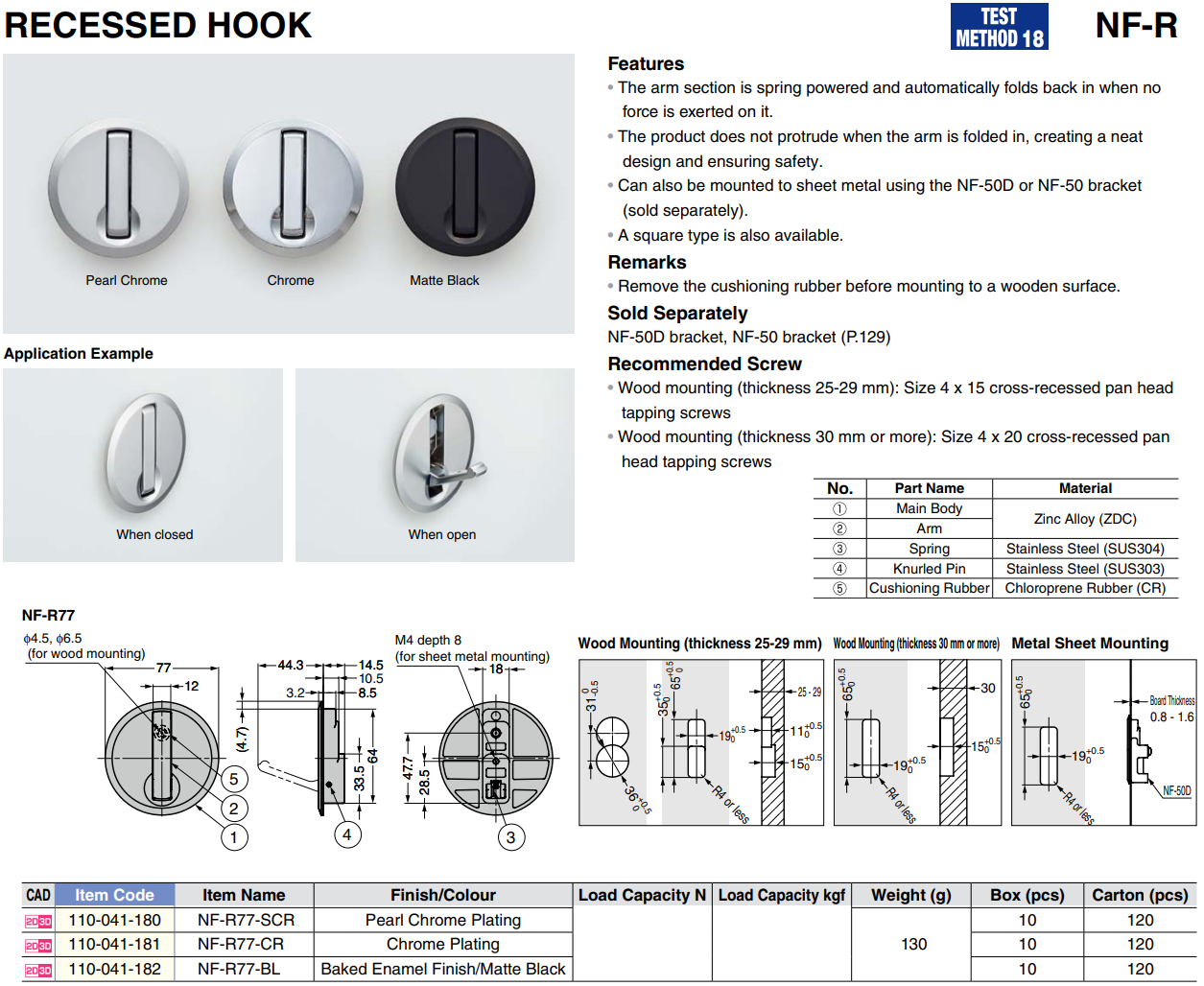

Sugatsune RECESSED HOOK NF-R Series
Features
• The arm section is spring powered and automatically folds back in when no
force is exerted on it.
• The product does not protrude when the arm is folded in, creating a neat
design and ensuring safety.
• Can also be mounted to sheet metal using the NF-50D or NF-50 bracket
(sold separately).
• A round type is also available.
Remarks
Remove the cushioning rubber before mounting to a wooden surface
Sold Separately NF-50D bracket, NF-50 bracket
Recommended Screw
• Wood mounting (thickness 25-29 mm): Size 4 x 15 cross-recessed pan head
tapping screws
• Wood mounting (thickness 30 mm or more): Size 4 x 20 cross-recessed pan
head tapping screws
