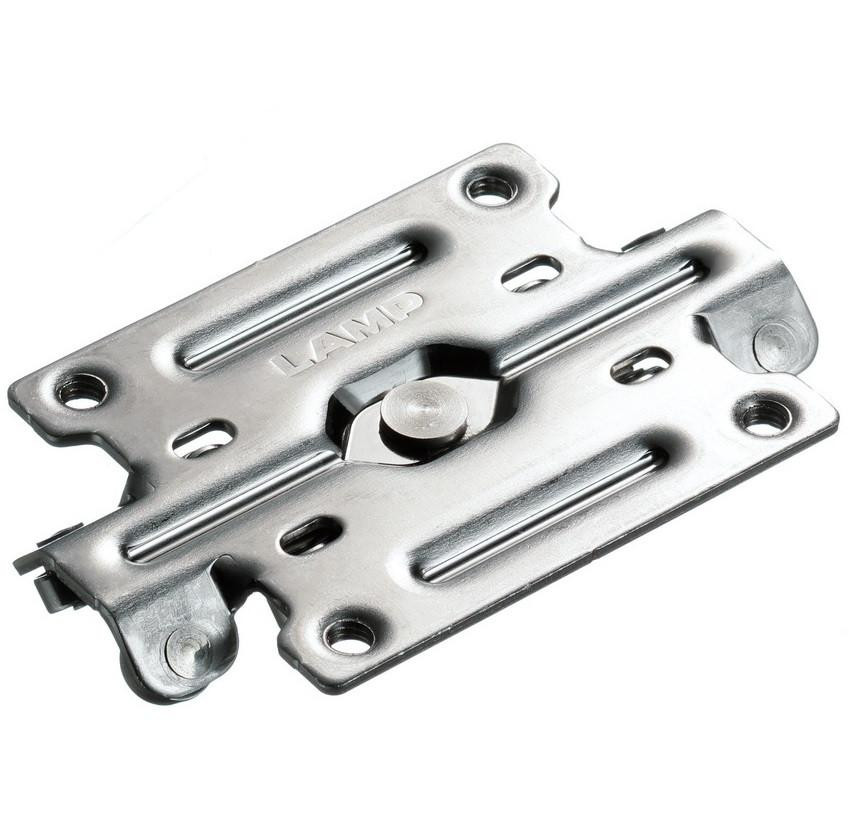

SUGATSUNE MLGX25 MULTI-ROLLER LINEAR SLIDE SYSTEM For Medium Load
- â—The unique structure called "Dual X" allows for smooth movement even when the load is applied horizontally or vertically.

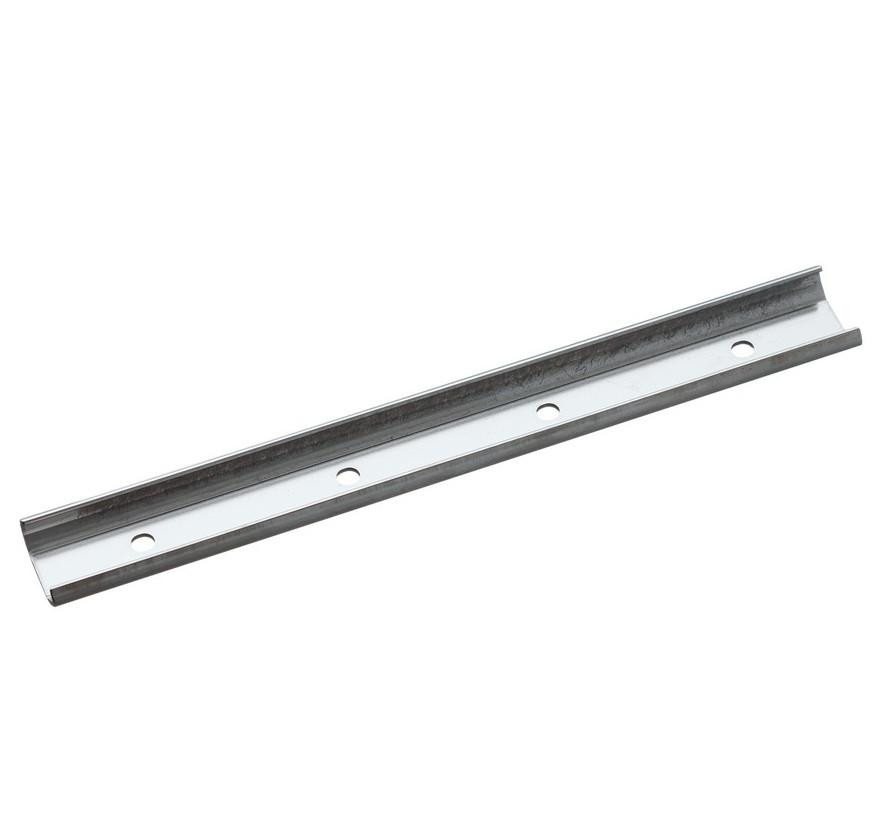

â—The rail is for medium load, designed to withstand an operating load of up to 120 N in either a horizontal or vertical direction.
â—Passed a 500,000 cycle test (round trips / 100 mm one way / 200 mm per second).
â—Since there is no ball creep, it can be used together with a motor drive.
â—Moves smoothly even when moment load occurs.
â—The guide block is a preloaded type with minimal backlash. - Application
- â—Automatic machine, medical equipment, analytical instrument, machine tool.

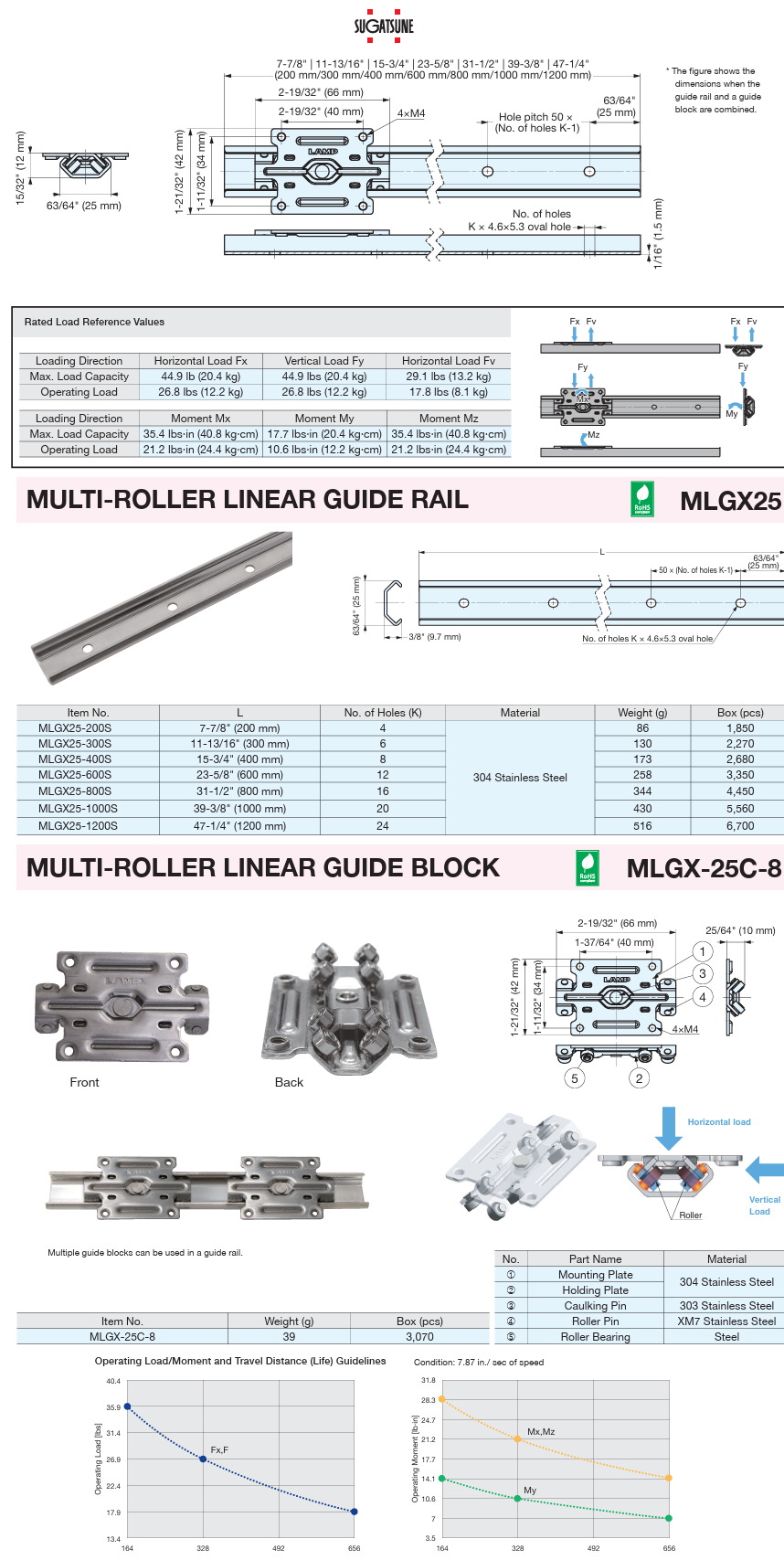

- MLGX25 PDF
Product Videos
Custom Field
Family MLGX25 Series
