Product Description

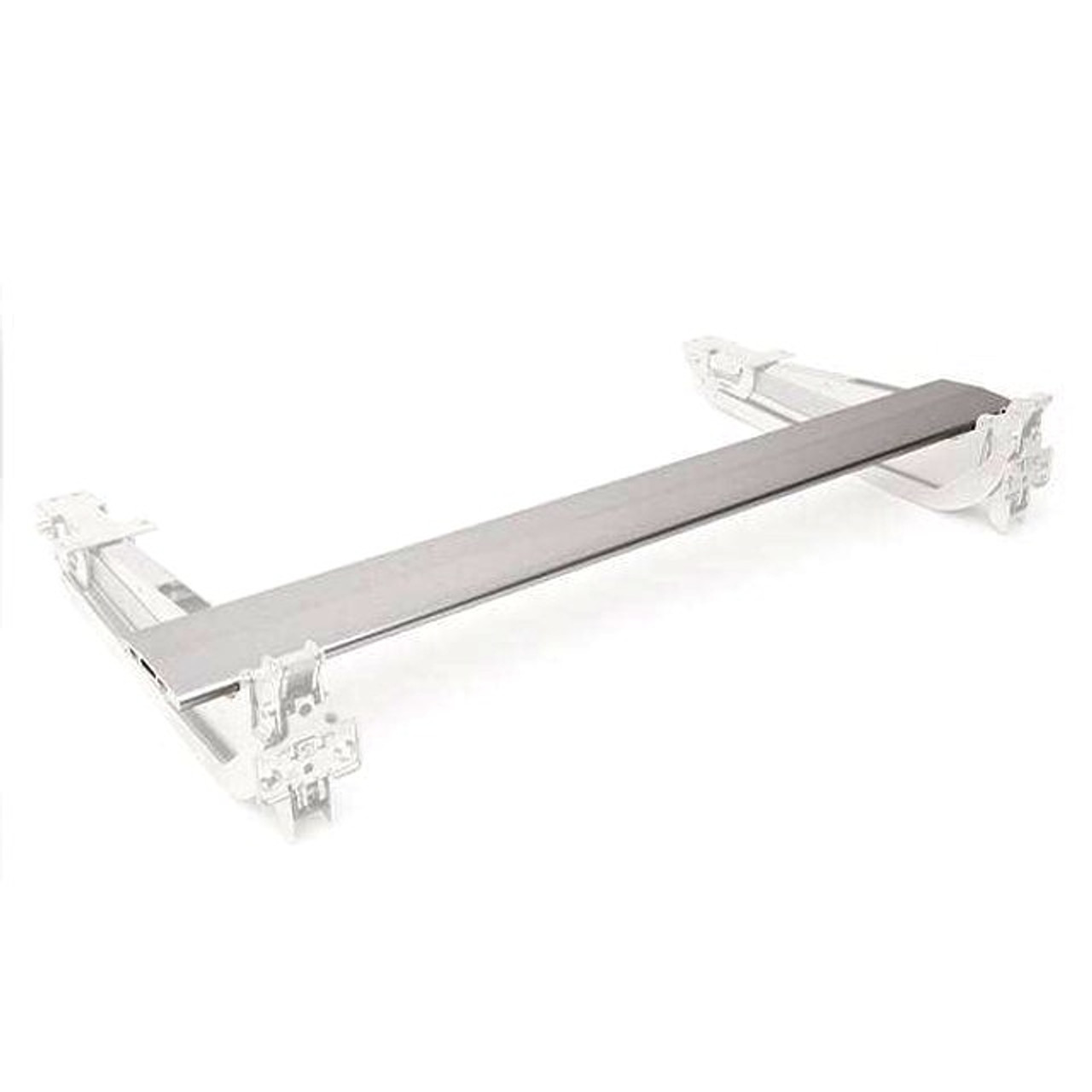

- SUGATSUNE LIN-X450 MONOFLAT LATERAL OPENING DOOR SYSTEMS
- Door does not get in the way even when fully opened
- When opening or opened, cabinet doors will not get in the way. Unique and innovative design.
Overlay installation that is flush with wall on both sides.
Easy access to cabinet interior.
Smooth operation: door is easy to move with little resistance no matter the position.
Soft-closing: built-in damper makes door close gently, preventing slamming.
Easy installation: Snap-in type installation. Same type of surface installation as concealed hinge mounting plate.
Various applications including corner doors, double doors, overlapping doors. - Specification
- Door Width : 400-500 mm
Door Height: 600-2400 mm
Door Thickness: 15-24 mm
Door Weight : Max. 17kg/Door
Overlay : 19 mm

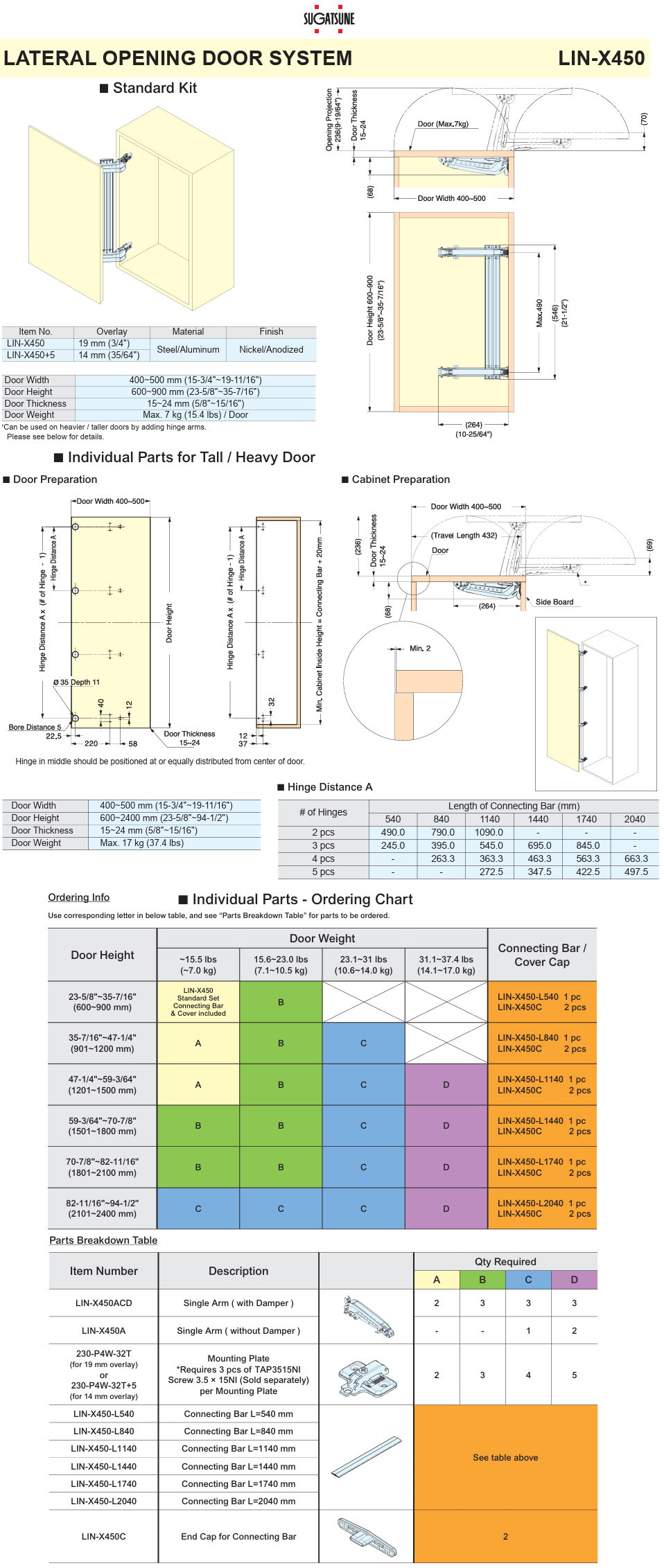

Product specifications : Single door specification ( Overlay ) - LIN-X450 PDF
- LIN-X450 INSTALLATION
Product Videos
Custom Field
Family Lin-x450 Series
