Product Description
Sugatsune LDD Series DOOR DAMPER Surface Mount
Surface mount that can be retrofitted onto current door installations.
Easy to align to proper positioning, speeding up installation.
Slim profile (body height only 16 mm) can handle doors up to 40 kg in weight.
Self and soft-closes within a 15° radius of closing. Closes gently, preventing slamming.
Doors feel lighter to open compared to standard door closers.
Successfully passed 100,000 open/close cycles in private test.
Counter plate position can be adjusted after installation.
Damper force can be adjusted post-installation.
Recommended Door Specifications:
-Width : Max. 900 mm
-Weight : 15 - 40 kg
Successfully passed 100,000 open/close cycles in private test.
Available in 4 colours to match your door: White (WT), Light Grey (LGR), Light Brown (LBR) or Dark Brown (DBR).
Recommended hinge: HES series

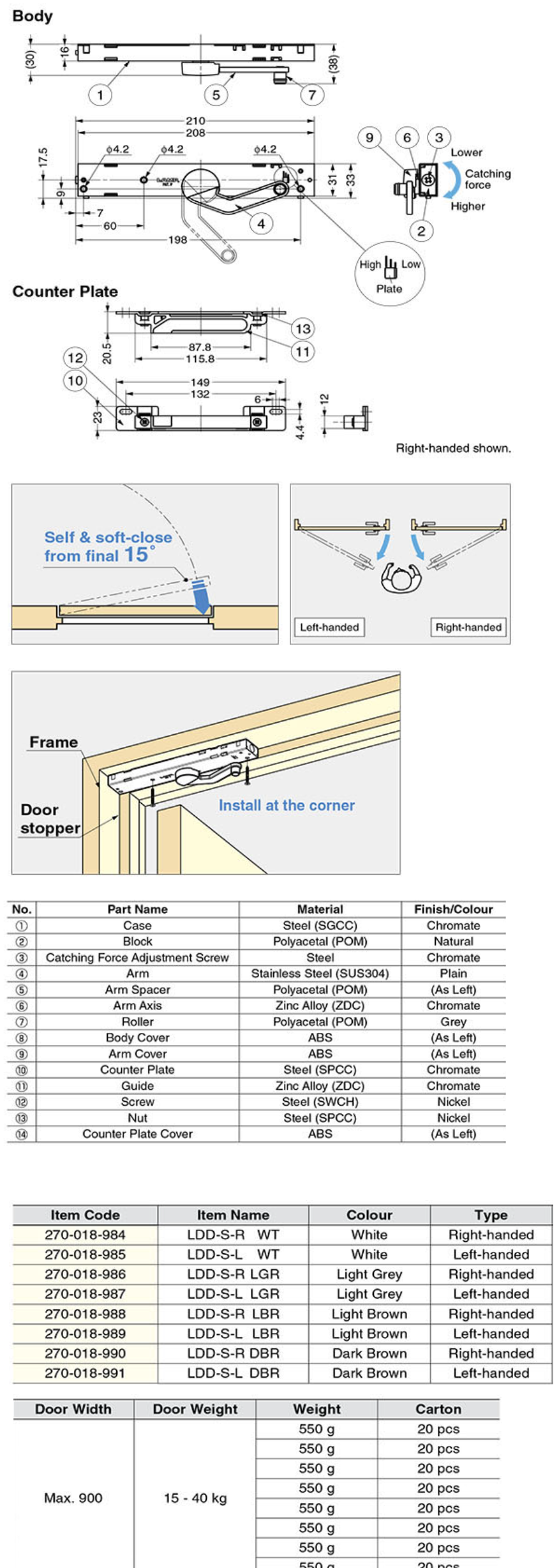

Specification
—Passed 100,000 open/close private cycle test.
Accessories
—Countersunk head tapping screw 3.5×30
—Binding head tapping screw 4×16
