Product Description

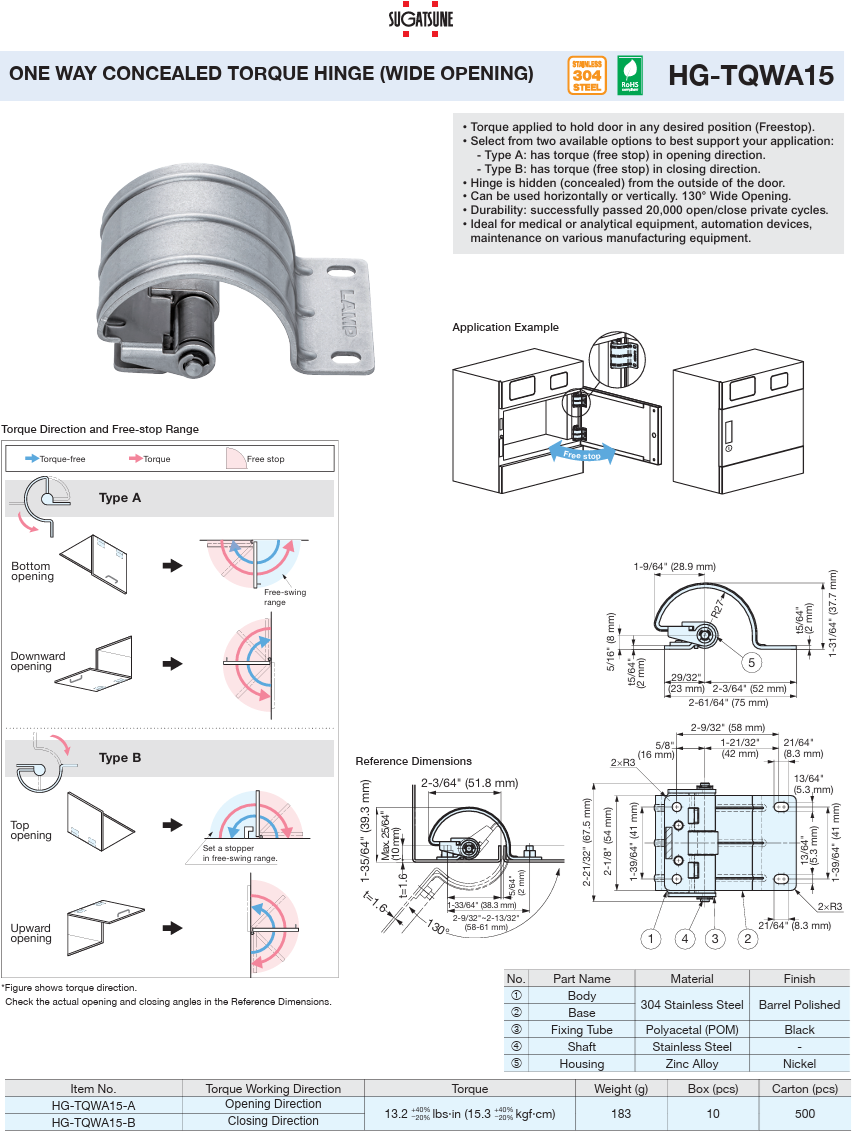

SUGATSUNE HG-TQWA15 ONE WAY CONCEALED TORQUE HINGE (WIDE OPENING- Torque option in Opening or Closing Direction
• Torque applied to hold door in any desired position (Freestop).
• Select from two available options to best support your application:
- Type A: has torque (free stop) in opening direction.
- Type B: has torque (free stop) in closing direction.
• Hinge is hidden (concealed) from the outside of the door.
• Can be used horizontally or vertically. 130° Wide Opening.
• Durability: successfully passed 20,000 open/close private cycles.
• Ideal for medical or analytical equipment, automation devices, maintenance on various manufacturing equipment.
Product Videos
Custom Field
Family HG-TQWA15 Series
