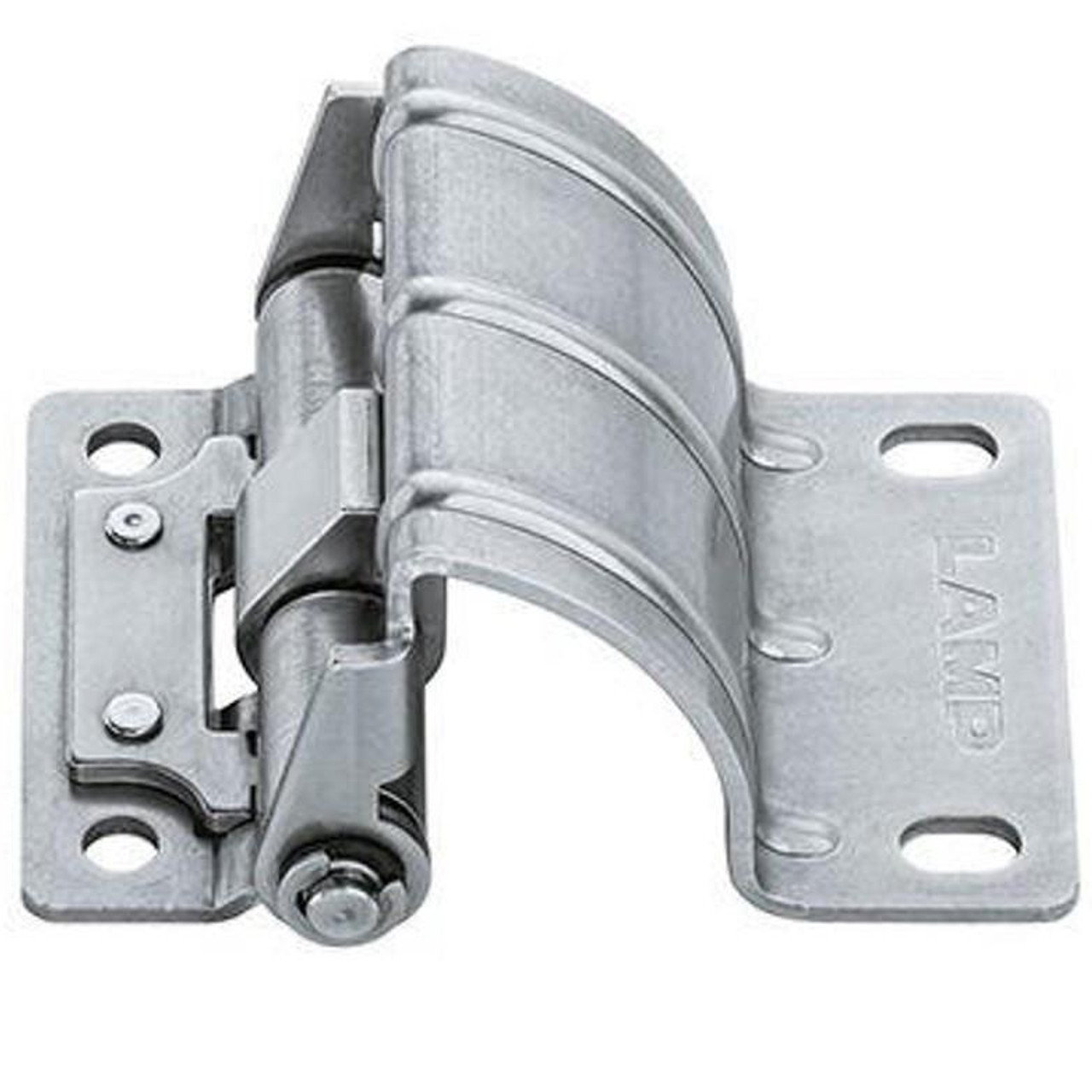

SUGATSUNE HG-TQU15 ONE WAY CONCEALED TORQUE HINGE - Torque option in Opening or Closing Direction

Product Description

SUGATSUNE HG-TQU15 ONE WAY CONCEALED TORQUE HINGE - Torque option in Opening or Closing Direction

• Two options for torque direction:

- Type A: has torque (free stop) in opening direction.

- Type B: has torque (free stop) in closing direction.

• Allows for frictionless handling of doors in opposite direction of torque.

• Concealed hinge avoids tampering or exposure to external elements.

• Hinge is hidden (concealed) from the outside of the door.

• Can be used horizontally or vertically.

• Install a catch or latch to keep lids or doors from opening.

• Durability: successfully passed 20,000 open/close private cycle test.

• Ideal for medical or analytical equipment, automation devices, maintenance on various manufacturing equipment.

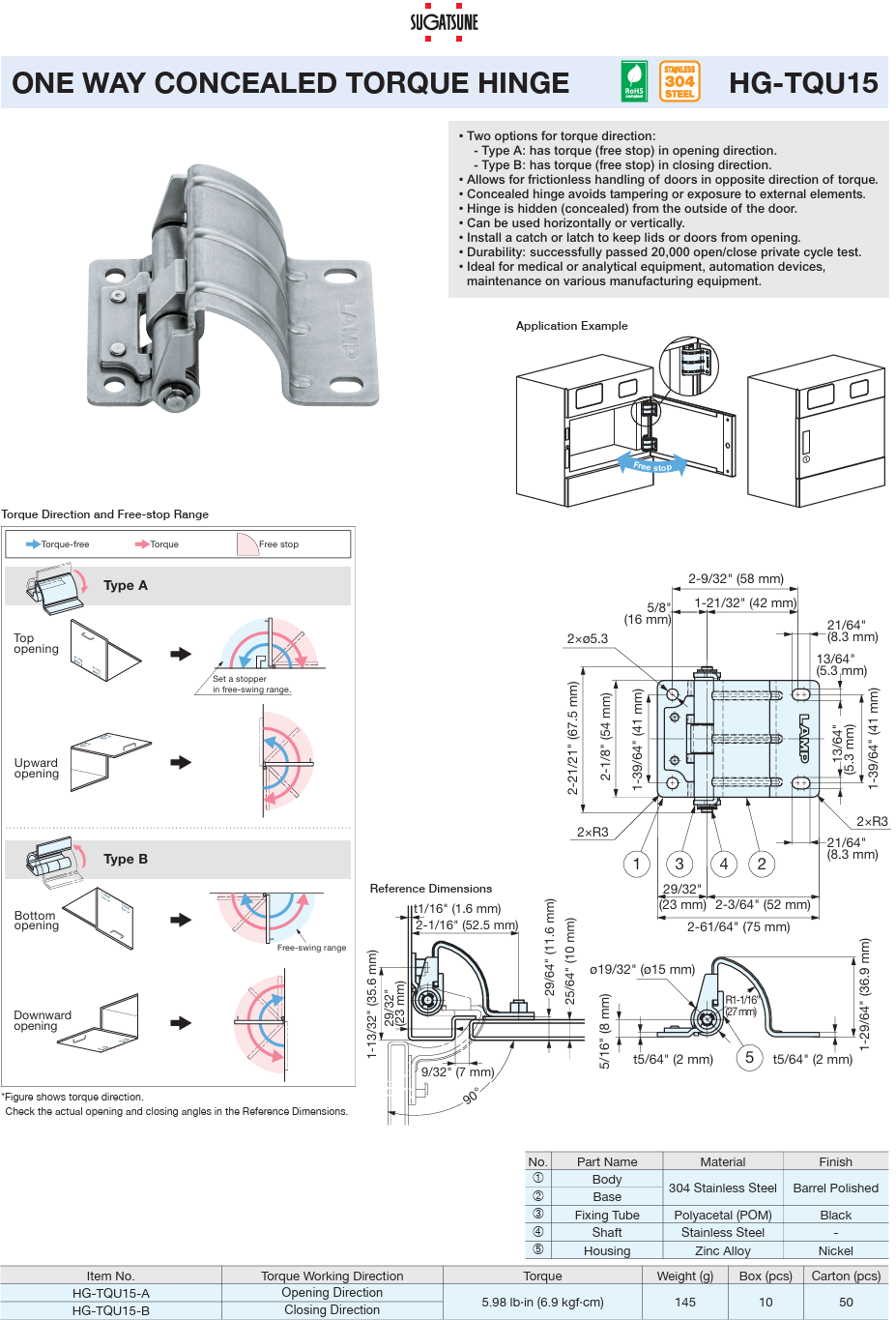

HG-TQU15 PDF
