Product Description

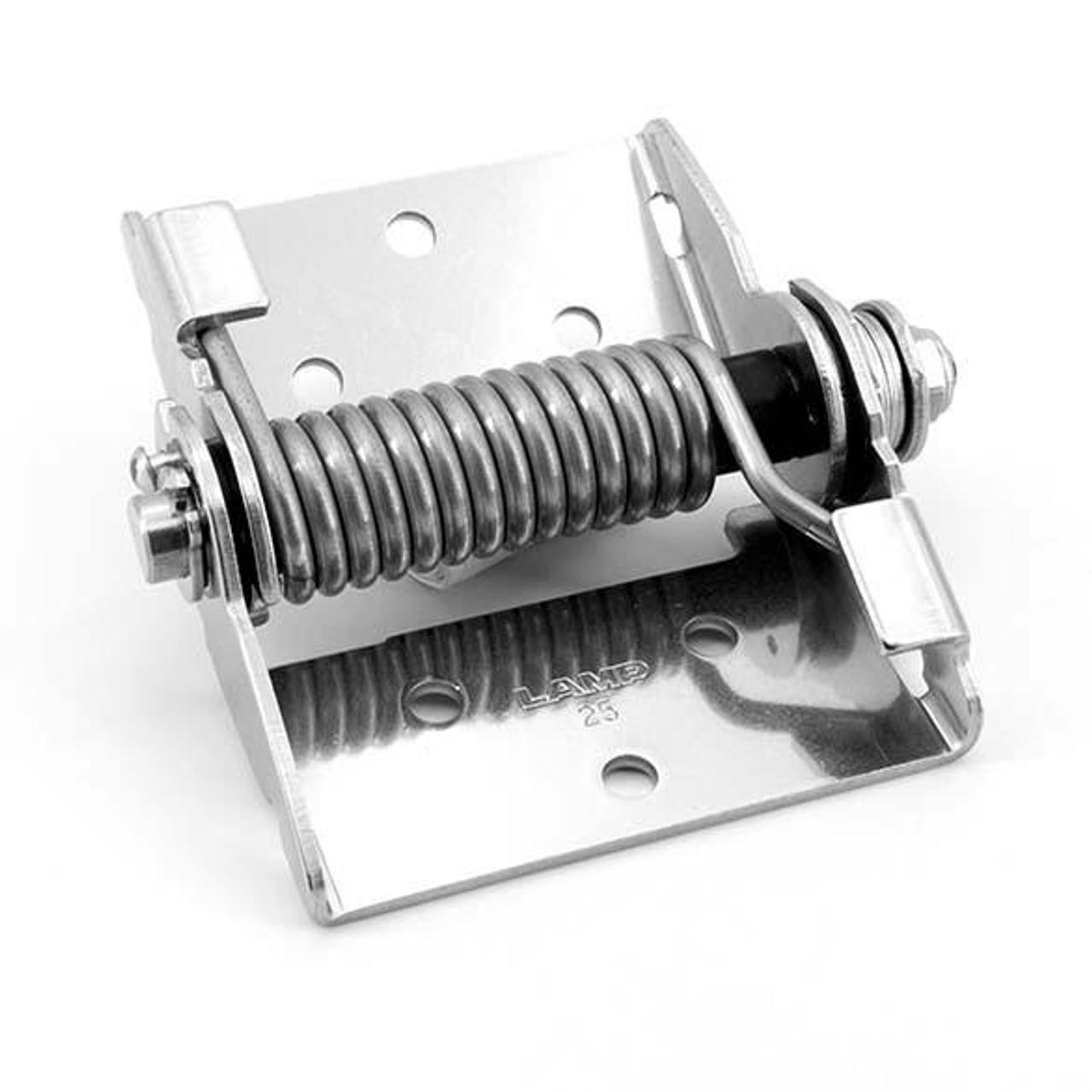

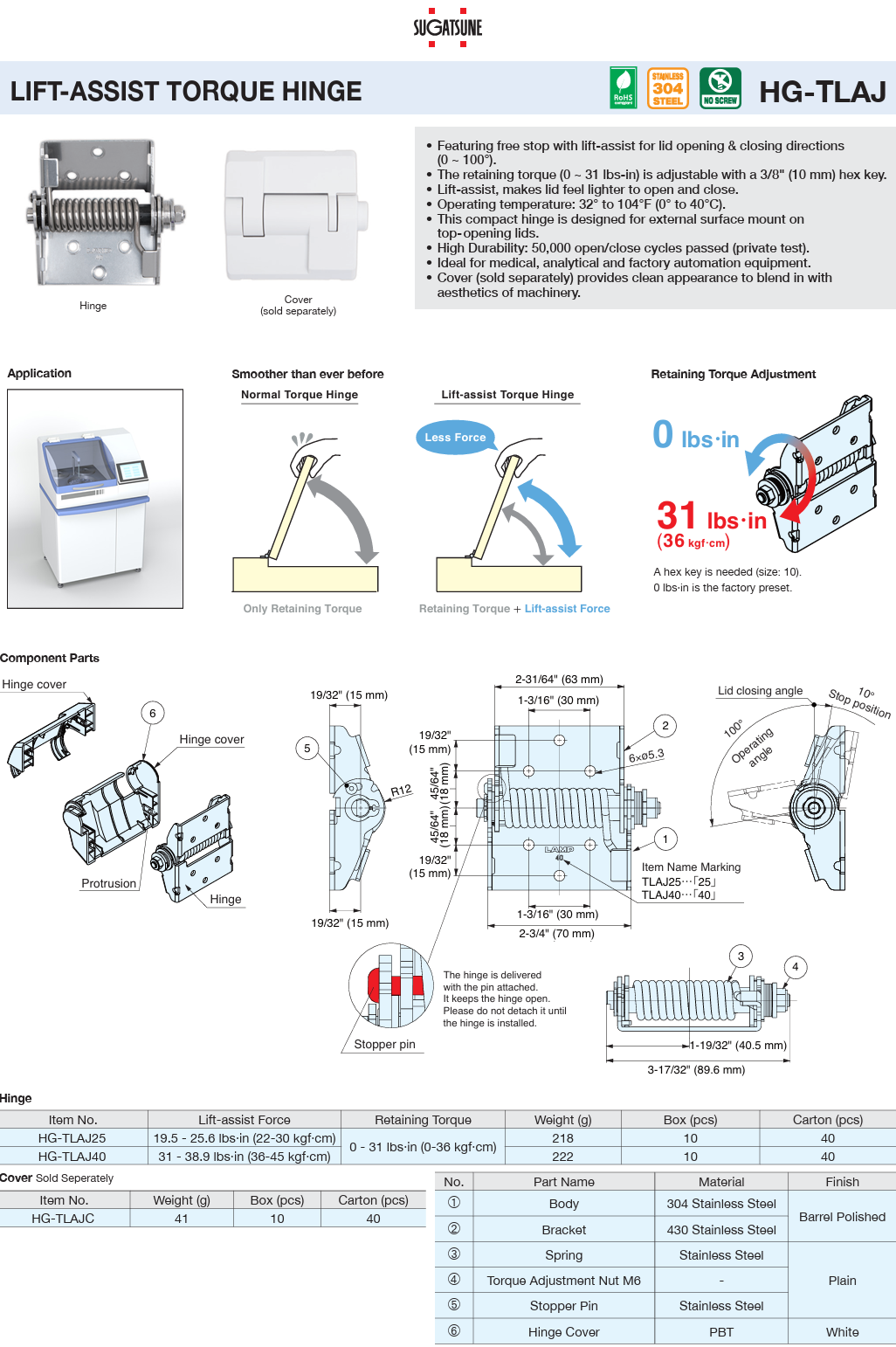

SUGATSUNE HG-TLAJ LIFT-ASSIST TORQUE HINGES
• Featuring free stop with lift-assist for lid opening & closing directions (0 ~ 100°).
• The retaining torque (0 ~ 31 lbs-in) is adjustable with a 3/8" (10 mm) hex key.
• Lift-assist, makes lid feel lighter to open and close.
• Operating temperature: 32° to 104°F (0° to 40°C).
• This compact hinge is designed for external surface mount on top- opening lids.
• High Durability: 50,000 open/close cycles passed (private test).
• Ideal for medical, analytical and factory automation equipment.
• Cover (sold separately) provides clean appearance to blend in with aesthetics of machinery.
Product Videos
Custom Field
Family HG-TLAJ Series
