Product Description

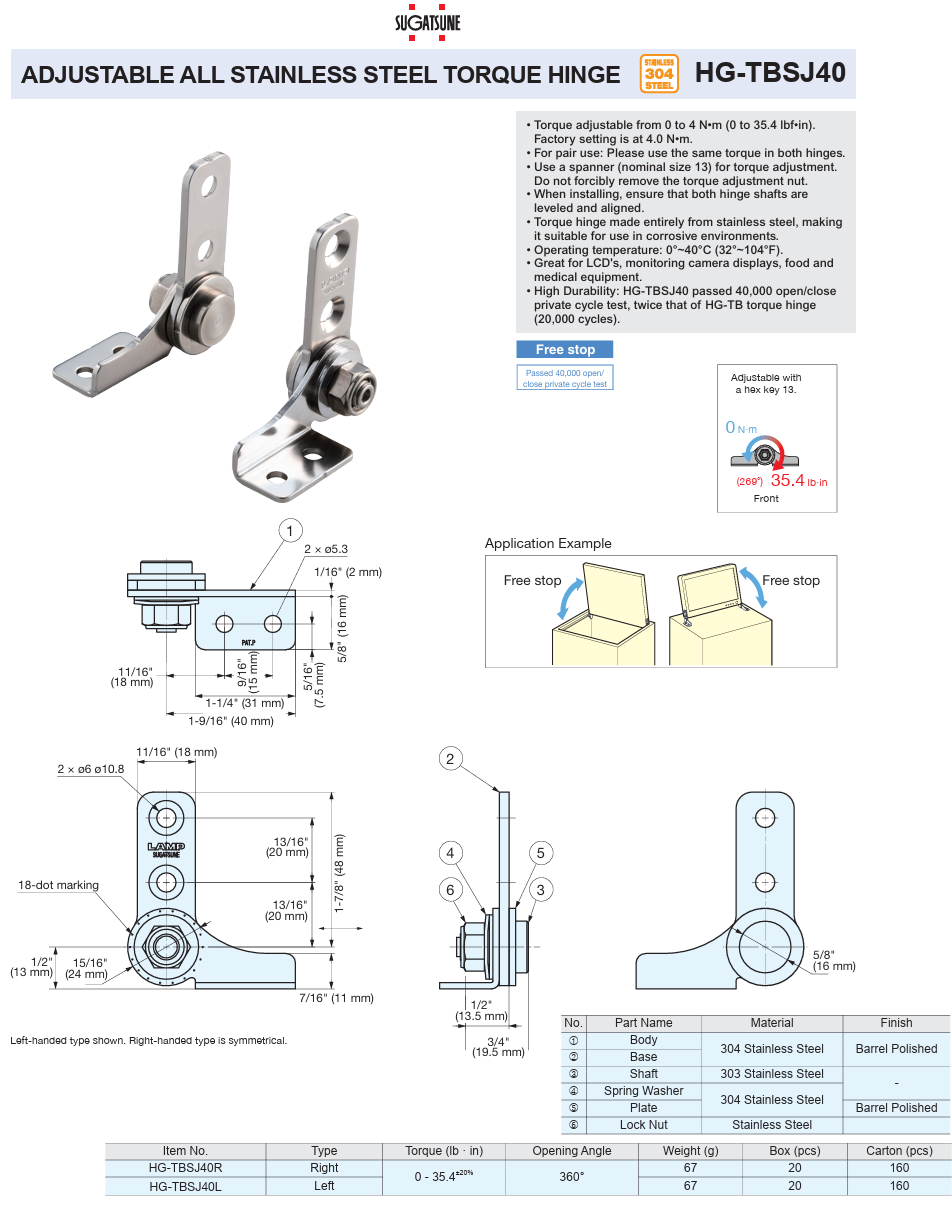

SUGATSUNE HG-TBSJ40 Stainless Steel Torque Hinge HANDED
• Torque adjustable from 0 to 4 N•m (0 to 35.4 lbf•in). Factory setting is at 4.0 N•m.
• For pair use: Please use the same torque in both hinges.
• Use a spanner (nominal size 13) for torque adjustment. Do not forcibly remove the torque adjustment nut.
• When installing, ensure that both hinge shafts are leveled and aligned.
• Torque hinge made entirely from stainless steel, making it suitable for use in corrosive environments. • Operating temperature: 0°~40°C (32°~104°F).
• Great for LCD's, monitoring camera displays, food and medical equipment.
• High Durability: HG-TBSJ40 passed 40,000 open/close private cycle test, twice that of HG-TB torque hinge (20,000 cycles).
Product Videos
Custom Field
Family HG-TBSJ40 Series
