Product Description

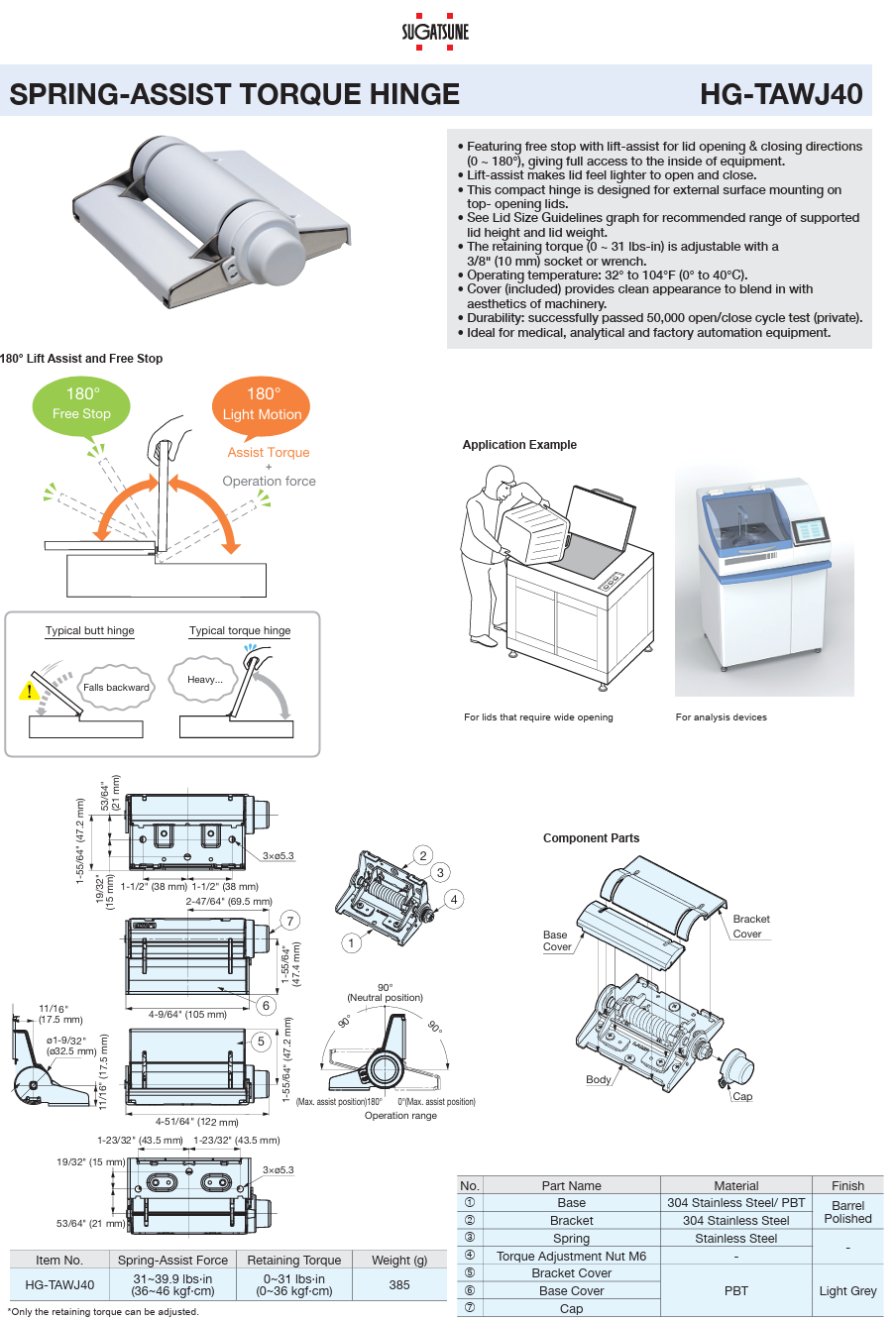

SUGATSUNE HG-TAWJ40 SPRING ASSIST Bi-Directional 180° Lift - HG-TAWJ40
• Featuring free stop with lift-assist for lid opening & closing directions (0 ~ 180°), giving full access to the inside of equipment.
• Lift-assist makes lid feel lighter to open and close.
• This compact hinge is designed for external surface mounting on top- opening lids. • See Lid Size Guidelines graph for recommended range of supported lid height and lid weight.
• The retaining torque (0 ~ 31 lbs-in) is adjustable with a 3/8" (10 mm) socket or wrench. • Operating temperature: 32° to 104°F (0° to 40°C).
• Cover (included) provides clean appearance to blend in with aesthetics of machinery.
• Durability: successfully passed 50,000 open/close cycle test (private).
• Ideal for medical, analytical and factory automation equipment.
