Product Description

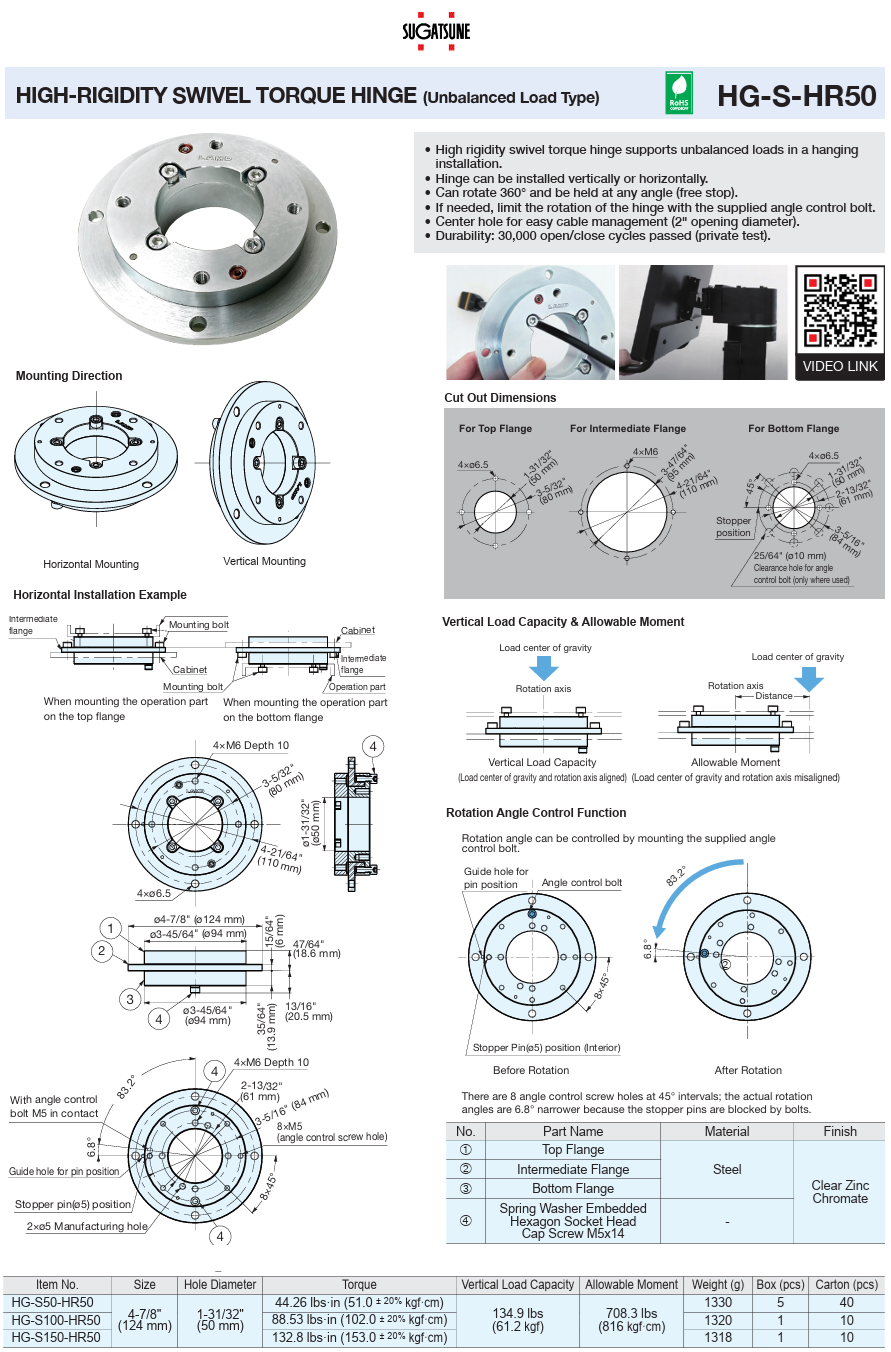

SUGATSUNE HG-S-HR50 HIGH-RIGIDITY SWIVEL TORQUE HINGE (Unbalanced Load Type) 3 Torque Options
• High rigidity swivel torque hinge supports unbalanced loads in a hanging installation.
• Hinge can be installed vertically or horizontally.
• Can rotate 360° and be held at any angle (free stop).
• If needed, limit the rotation of the hinge with the supplied angle control bolt.
• Center hole for easy cable management (2" opening diameter).
• Durability: 30,000 open/close cycles passed (private test).
Product Videos
Custom Field
Family HG-S-HR50 Series
