Product Description

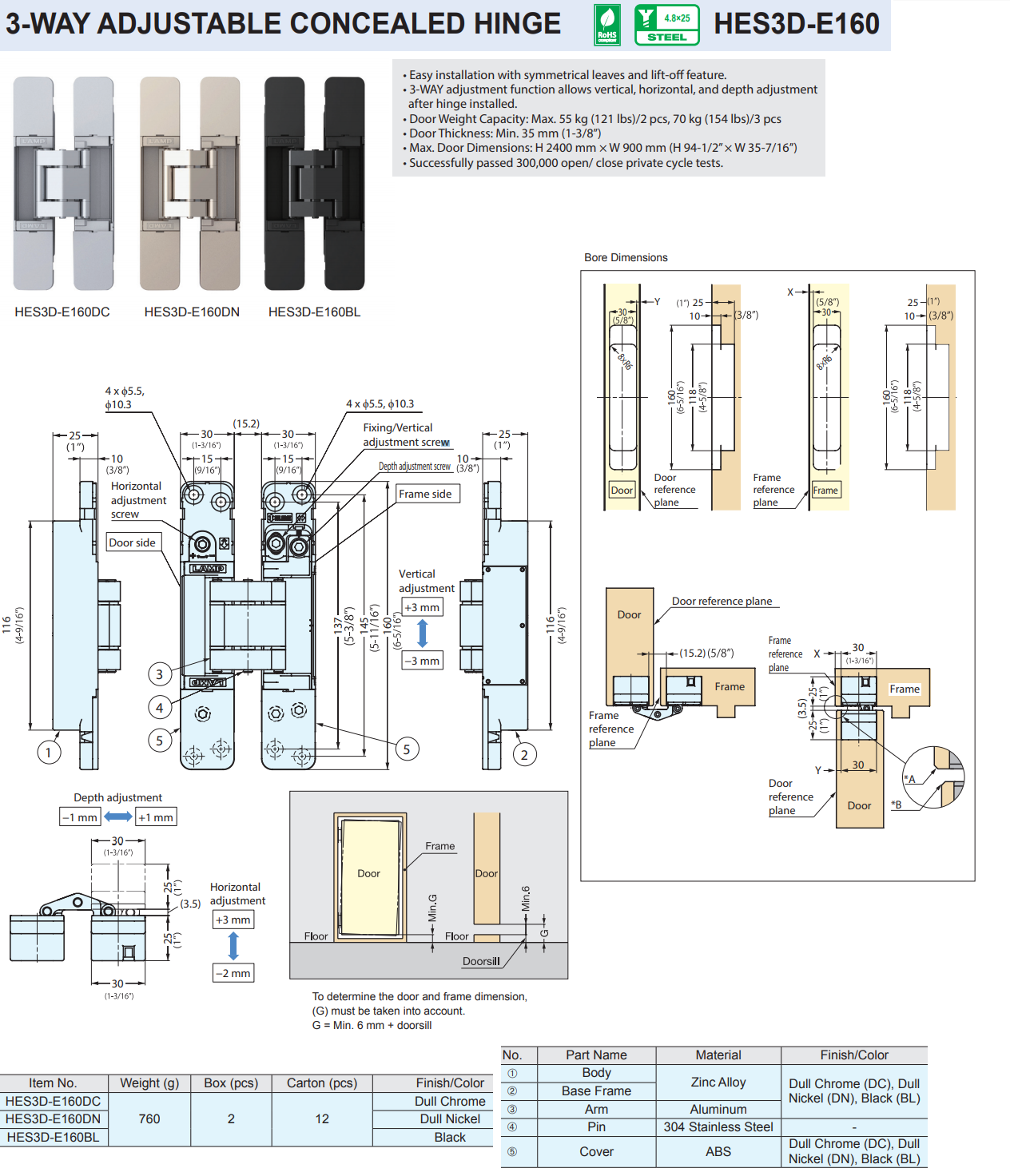

SUGATSUNE HES3D-E160 SERIES HINGES
• Easy installation with symmetrical leaves and lift-off feature.
• 3-WAY adjustment function allows vertical, horizontal, and depth adjustment
after hinge installed.
• Door Weight Capacity: Max. 55 kg (121 lbs)/2 pcs, 70 kg (154 lbs)/3 pcs
• Door Thickness: Min. 35 mm (1-3/8”)
• Max. Door Dimensions: H 2400 mm × W 900 mm (H 94-1/2” × W 35-7/16”)
• Successfully passed 300,000 open/ close private cycle tests.
