Product Description

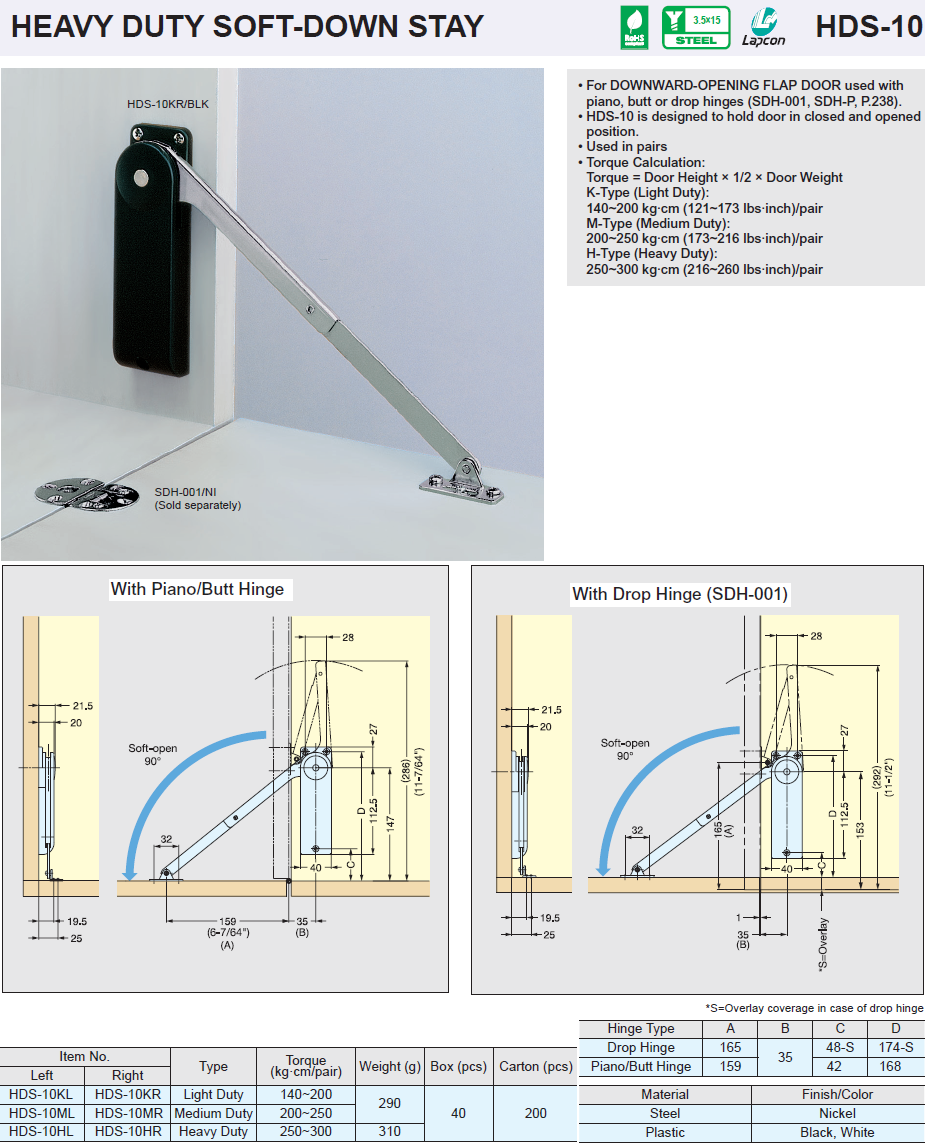

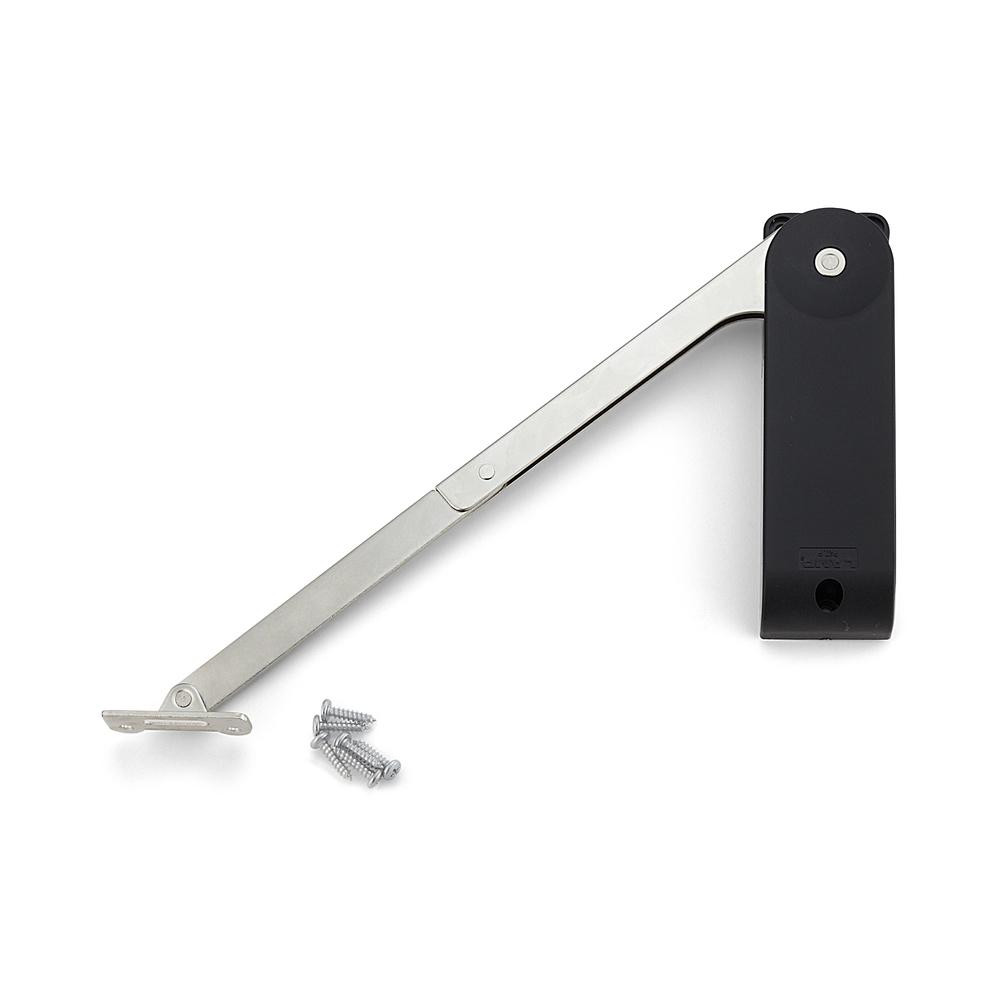

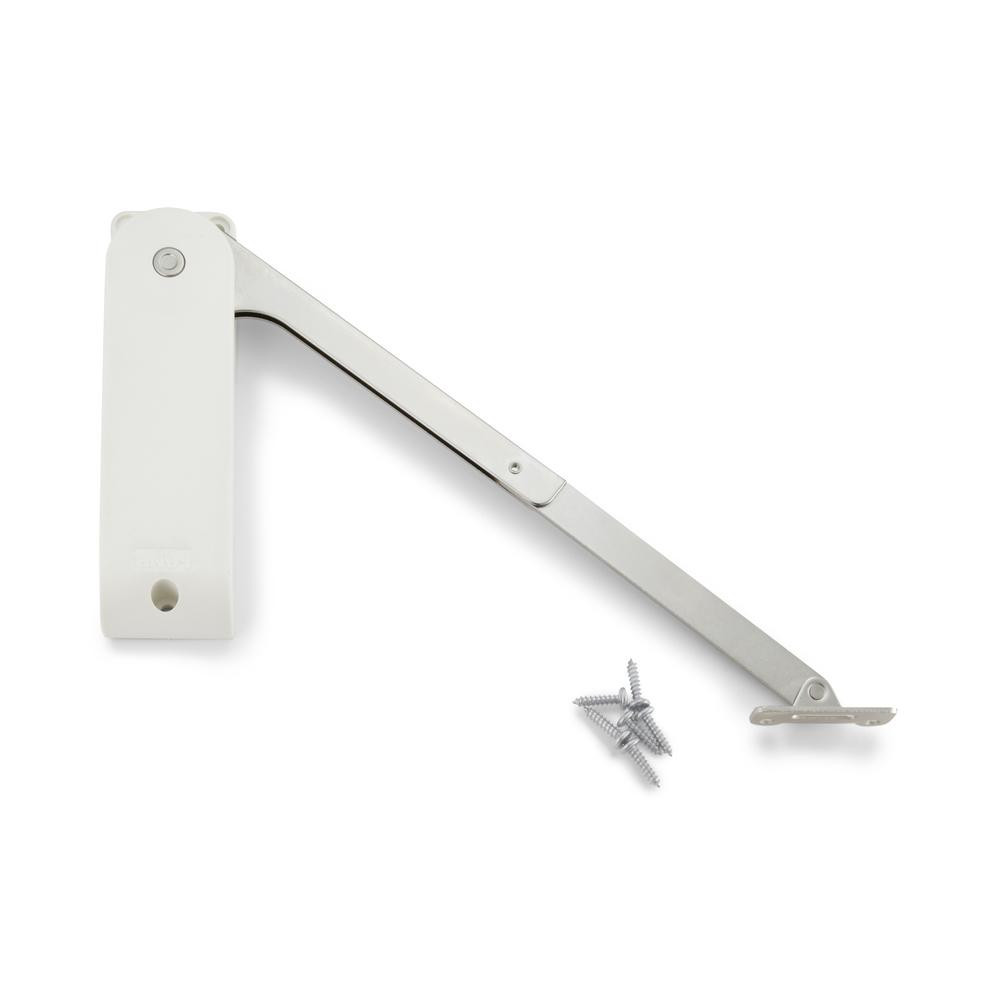

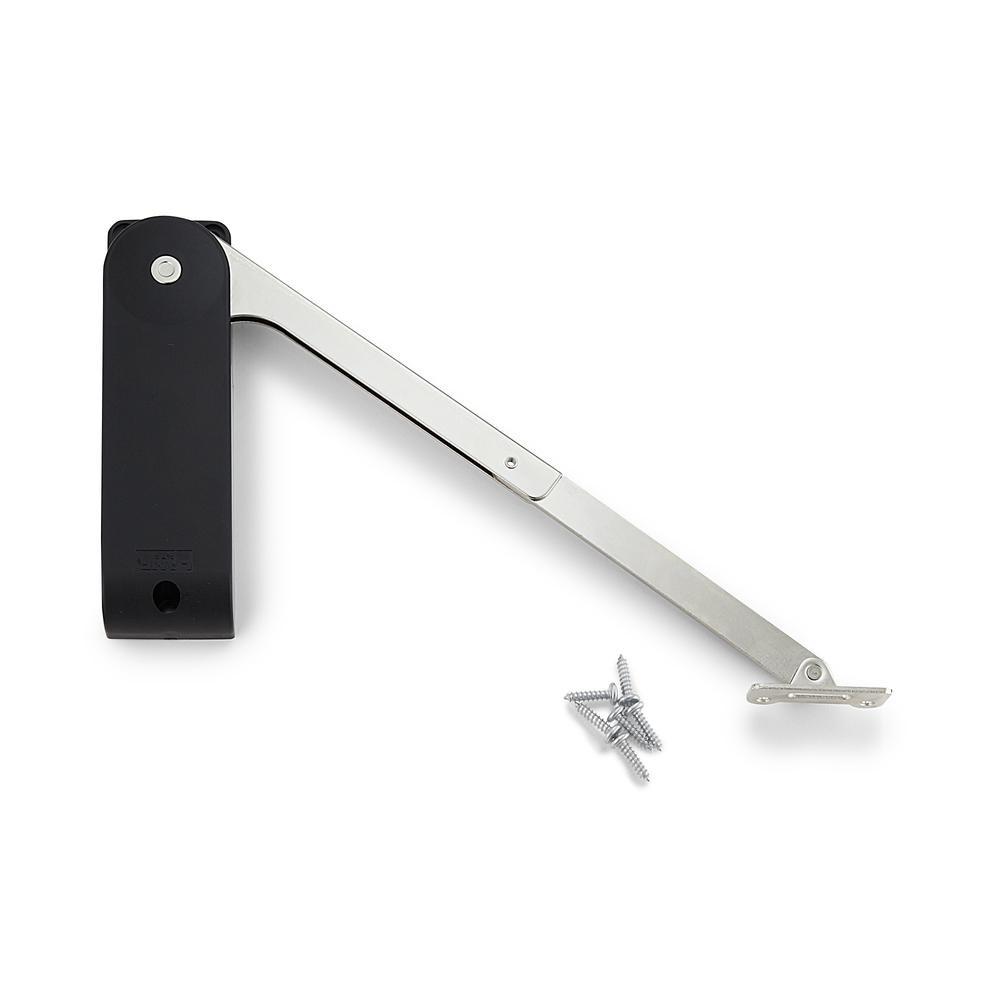

Sugatsune HDS-10 SELF CLOSE STAY
• For DOWNWARD-OPENING FLAP DOOR used with
piano, butt or drop hinges (SDH-001, SDH-P, P.238).
• HDS-10 is designed to hold door in closed and opened
position.
• Used in pairs
• Torque Calculation:
Torque = Door Height × 1/2 × Door Weight
K-Type (Light Duty):
140~200 kg·cm (121~173 lbs·inch)/pair
M-Type (Medium Duty):
200~250 kg·cm (173~216 lbs·inch)/pair
H-Type (Heavy Duty):
250~300 kg·cm (216~260 lbs·inch)/pair
