Product Description

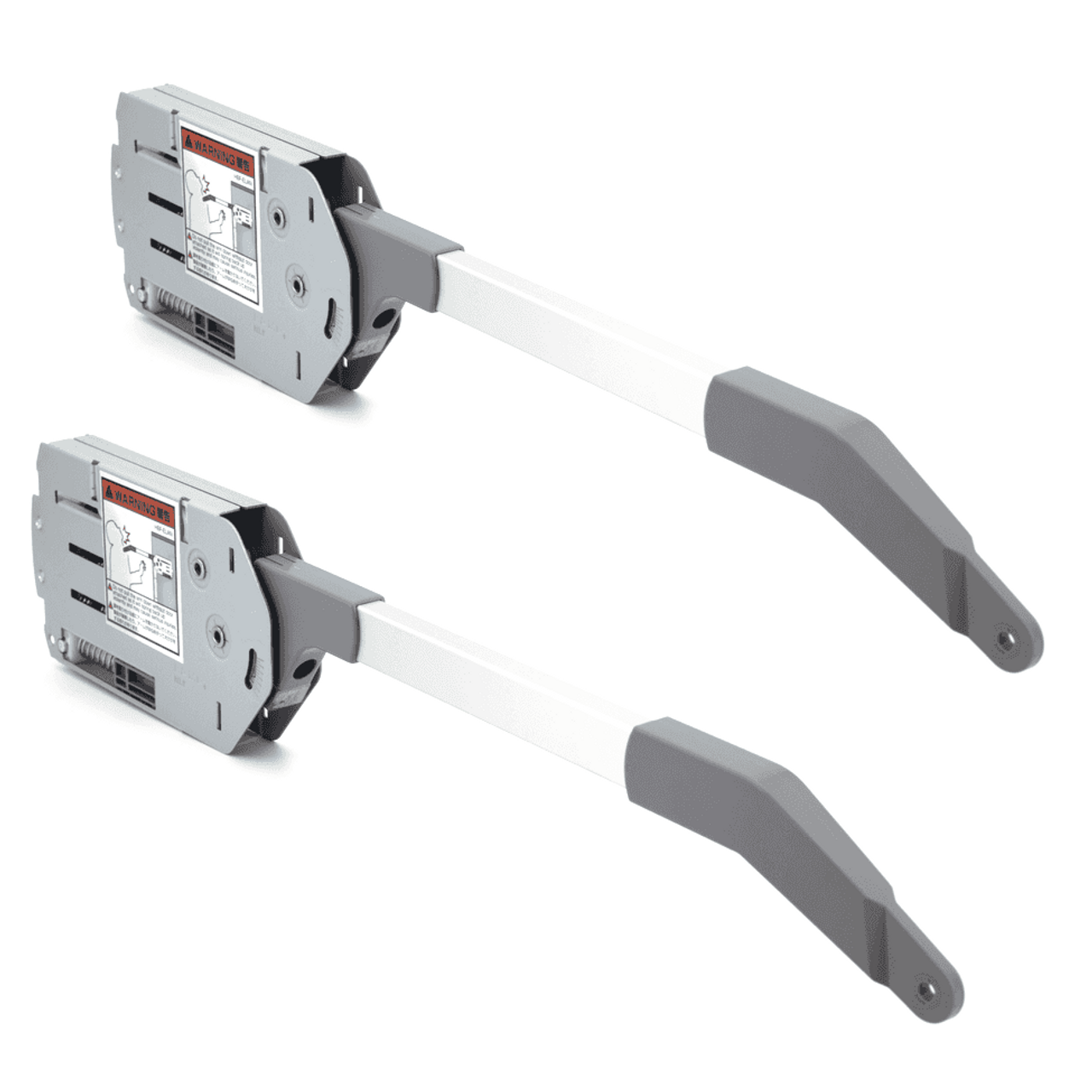

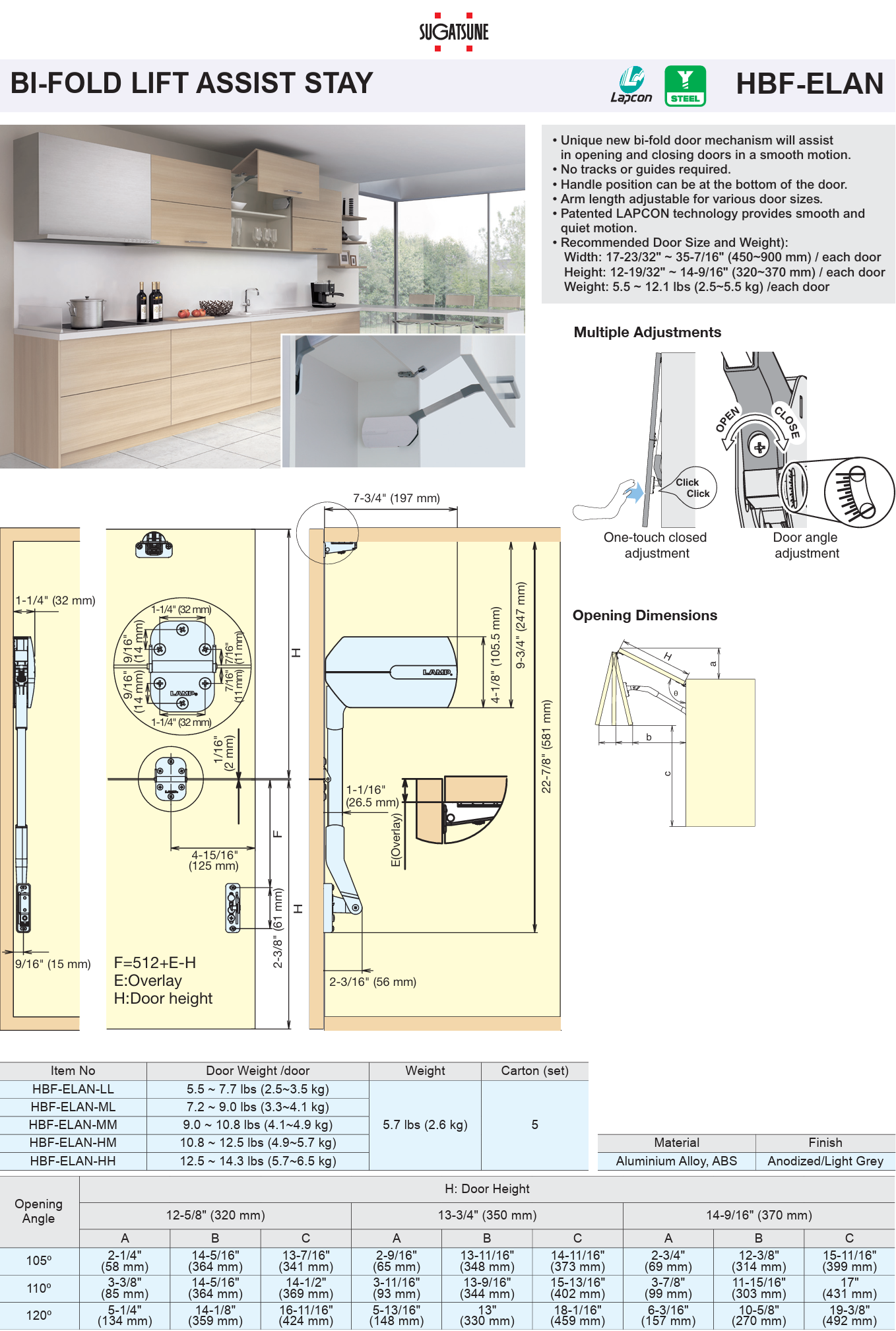

Sugatsune HBF-ELAN BI-FOLD LIFT ASSIST STAYS
• Unique new bi-fold door mechanism will assist in opening and closing doors in a smooth motion.
• No tracks or guides required.
• Handle position can be at the bottom of the door.
• Arm length adjustable for various door sizes.
• Patented LAPCON technology provides smooth and quiet motion.
• Recommended Door Size and Weight): Width: 17-23/32" ~ 35-7/16" (450~900 mm) / each door Height: 12-19/32" ~ 14-9/16" (320~370 mm) / each door Weight: 5.5 ~ 12.1 lbs (2.5~5.5 kg) /each door
For upward-opening flap doors
Equipped with: Lift assist (to make flap doors feel lighter), Free stop (holds position at any angle from 50° to fully open), Soft-closing (slows down closing speed to prevent slamming between 0° and 40°), Successfully passed 30,000 open/close cycles in a private test, Easy to adjust opening angle (must be used together with concealed hinge with appropriate opening degree)
Fast installation through vertical adjustment function on mounting plate (on flap)
Installation is simple using the template (included)
