Product Description

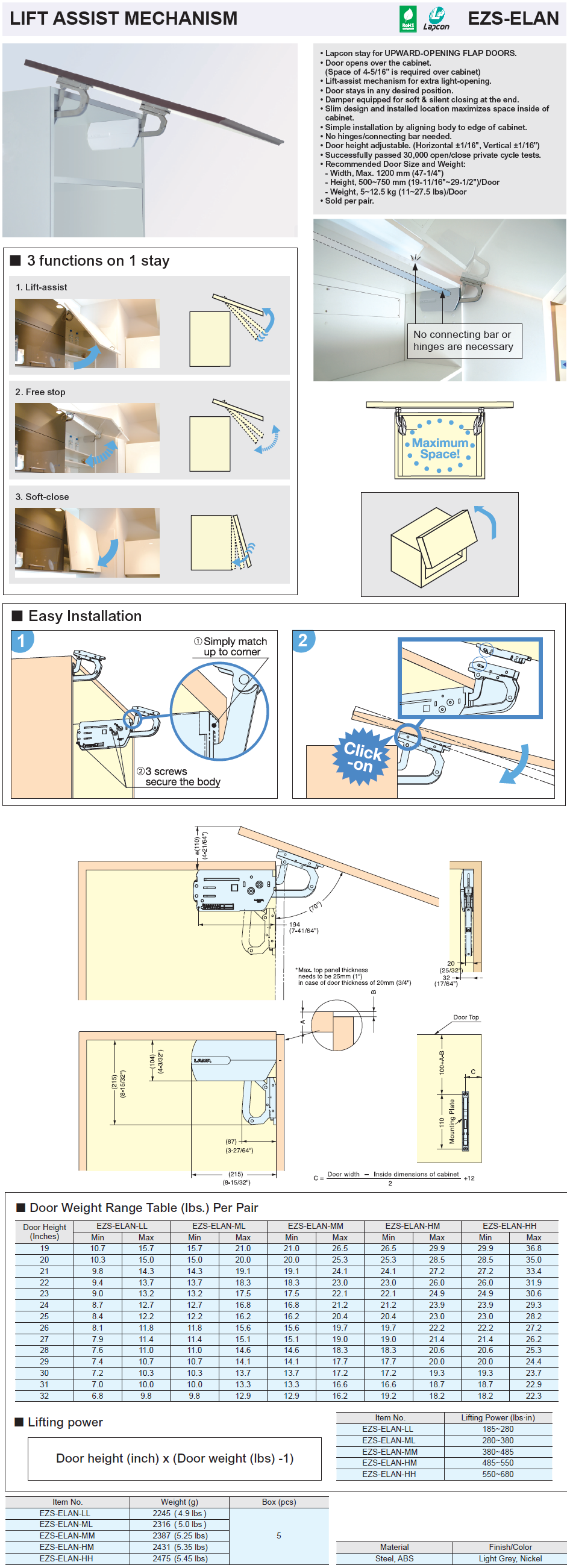

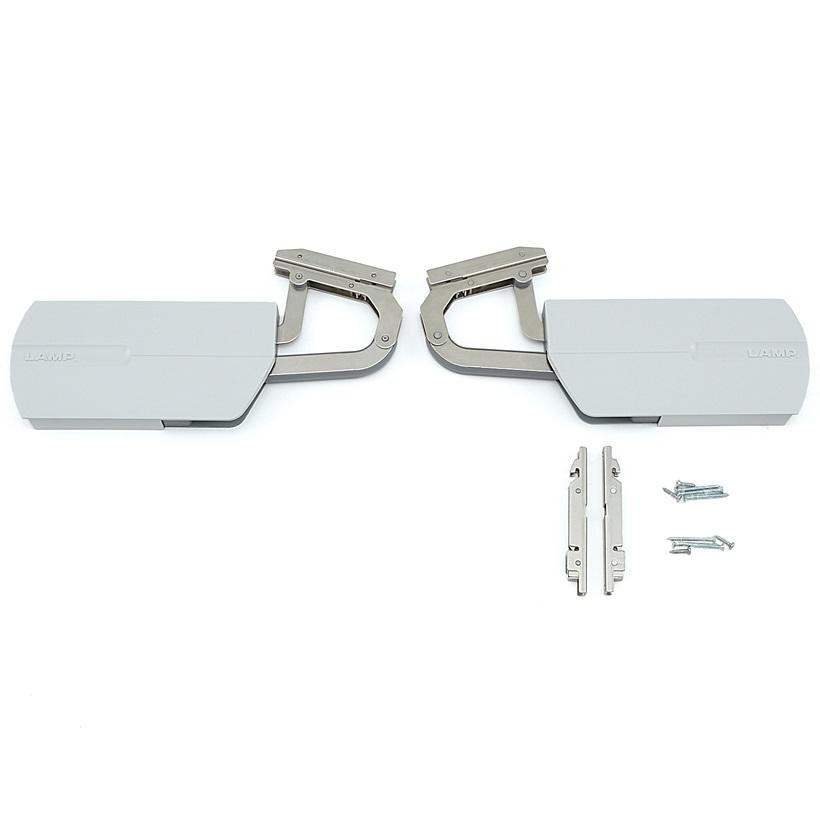

Sugatsune EZS-ELAN LIFT ASSIST MECHANISM
• Lapcon stay for UPWARD-OPENING FLAP DOORS.
• Door opens over the cabinet.
(Space of 4-5/16" is required over cabinet)
• Lift-assist mechanism for extra light-opening.
• Door stays in any desired position.
• Damper equipped for soft & silent closing at the end.
• Slim design and installed location maximizes space inside of
cabinet.
• Simple installation by aligning body to edge of cabinet.
• No hinges/connecting bar needed.
• Door height adjustable. (Horizontal ±1/16", Vertical ±1/16")
• Successfully passed 30,000 open/close private cycle tests.
• Recommended Door Size and Weight:
- Width, Max. 1200 mm (47-1/4")
- Height, 500~750 mm (19-11/16"~29-1/2")/Door
- Weight, 5~12.5 kg (11~27.5 lbs)/Door
• Sold per pair.
