Product Description

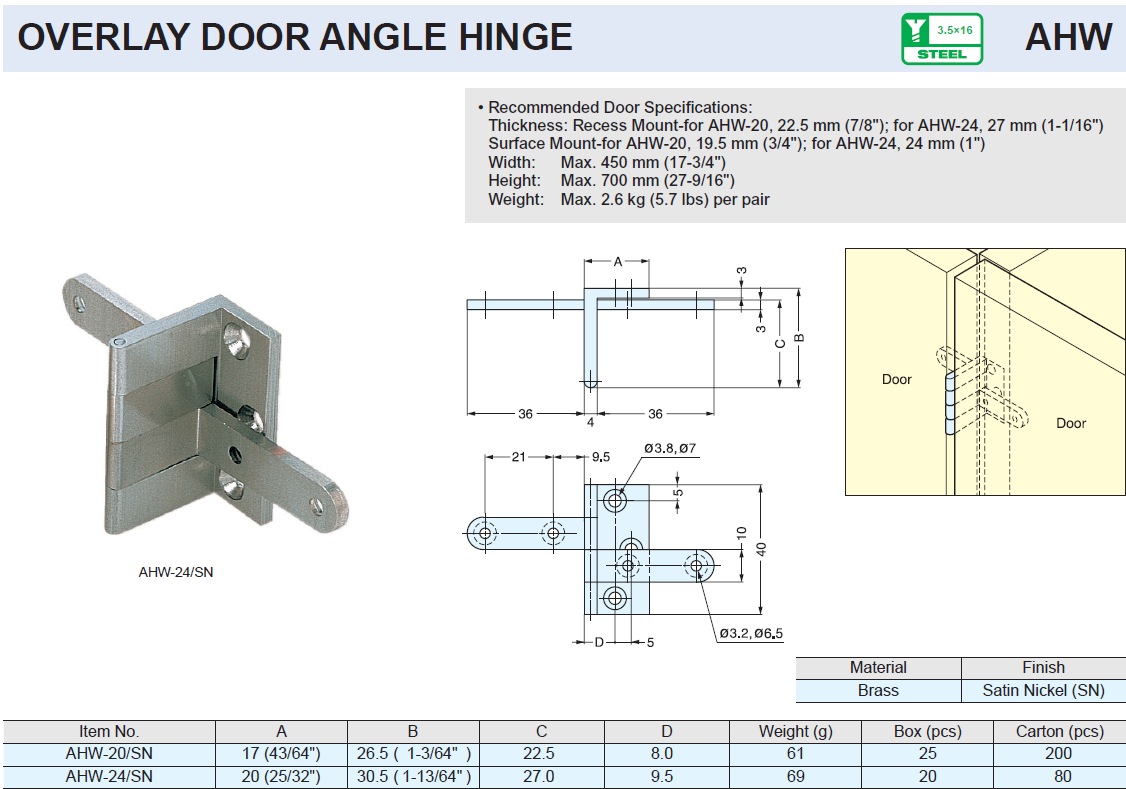

SUGATSUNE OVERLAY DOOR ANGLE HINGE AHW
• Recommended Door Specifications:
Thickness: Recess Mount-for AHW-20, 22.5 mm (7/8"); for AHW-24, 27 mm (1-1/16")
Surface Mount-for AHW-20, 19.5 mm (3/4"); for AHW-24, 24 mm (1")
Width: Max. 450 mm (17-3/4")
Height: Max. 700 mm (27-9/16")
Weight: Max. 2.6 kg (5.7 lbs) per pair
