Product Description

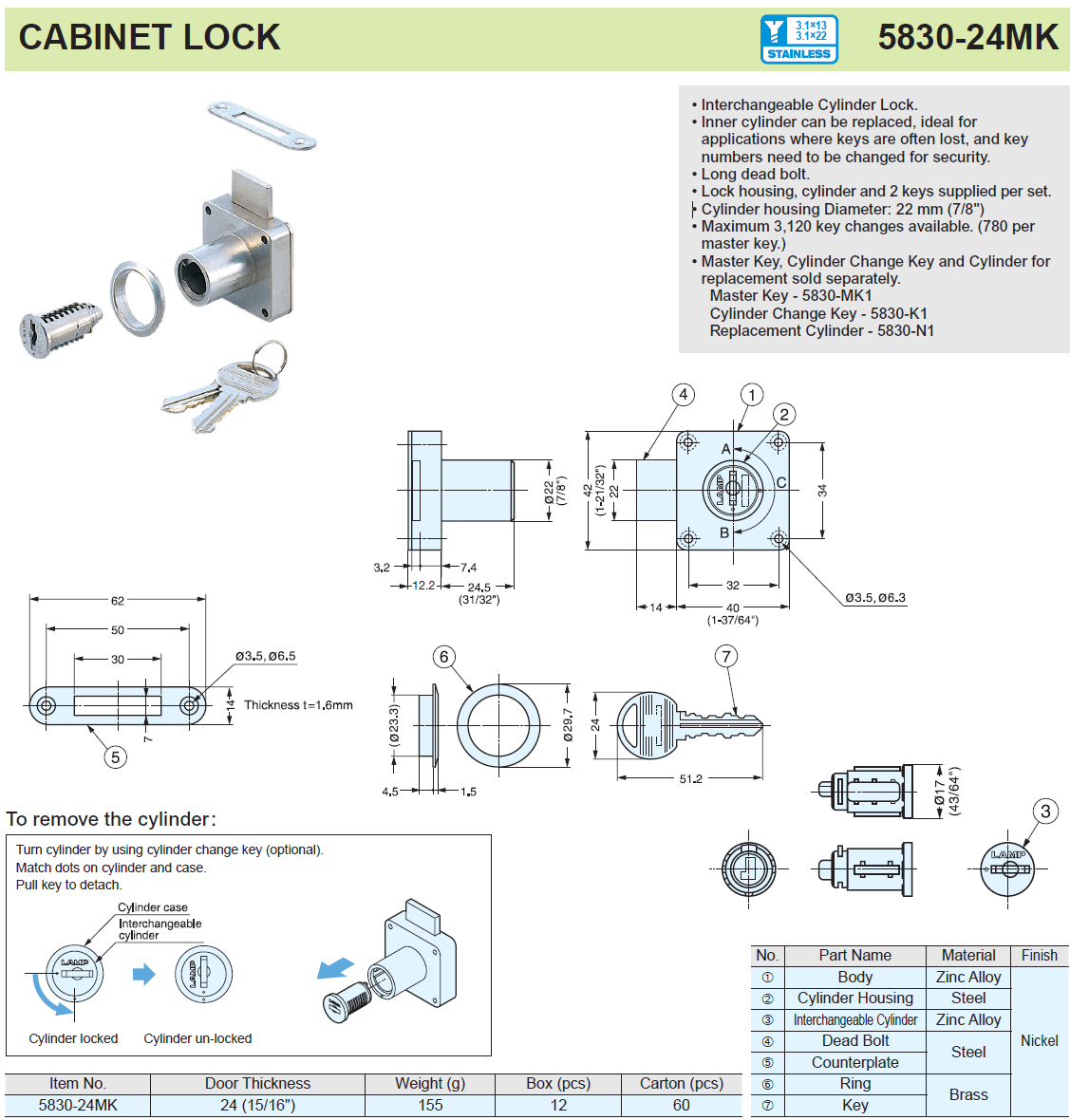

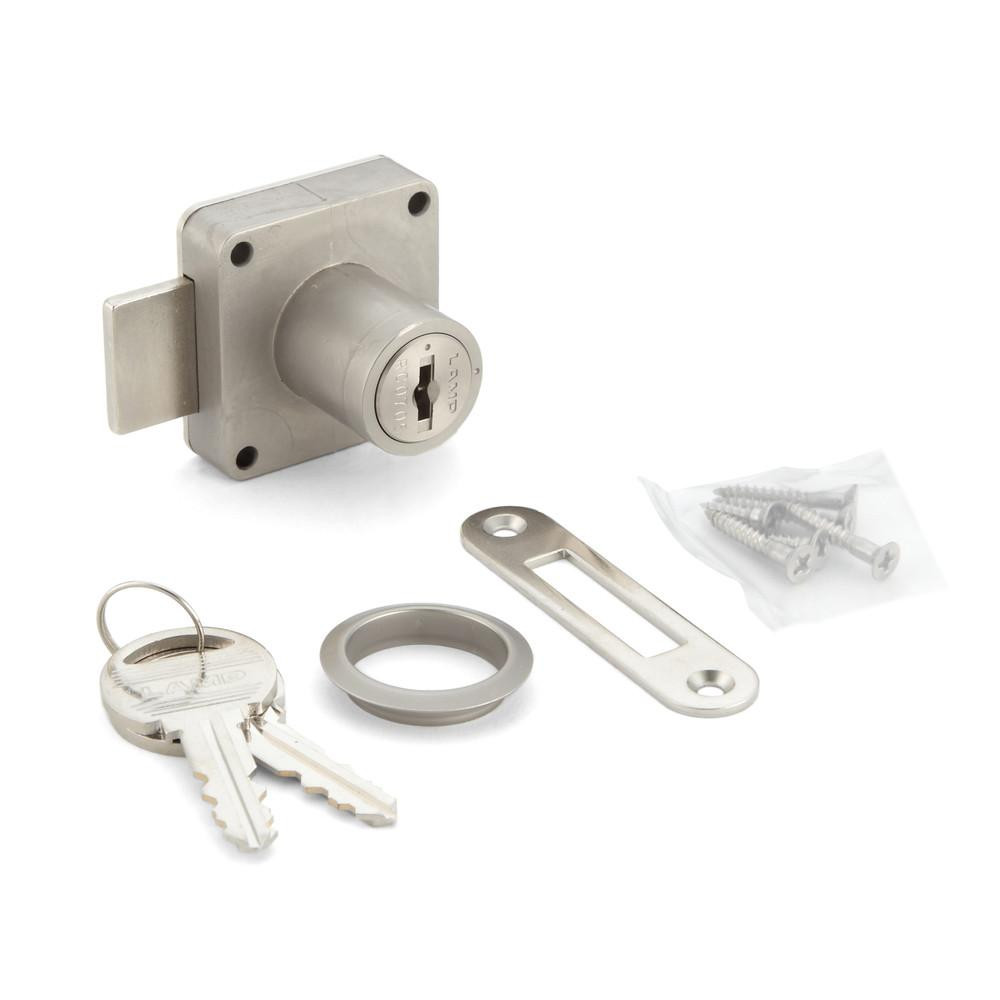

Sugatsune 5830 CABINET LOCK
Interchangeable cylinder lock with Master Key system.
Easy to replace cylinder by using Change Key 5830-K1 (below).
Reversible key can be removed when locked and unlocked (180degree rotation).
Max. 3,120 key changes available. (Max. 780 key changes/Master Key)
• Interchangeable Cylinder Lock.
• Inner cylinder can be replaced, ideal for
applications where keys are often lost, and key
numbers need to be changed for security.
• Long dead bolt.
• Lock housing, cylinder and 2 keys supplied per set.
• Cylinder housing Diameter: 22 mm (7/8")
• Maximum 3,120 key changes available. (780 per
master key.)
• Master Key, Cylinder Change Key and Cylinder for
replacement sold separately.

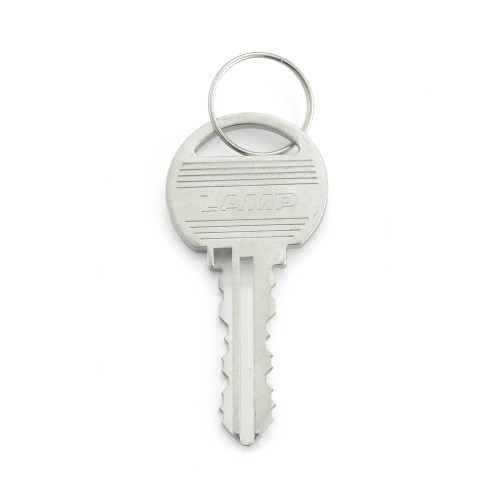

Master Key - 5830-MK1

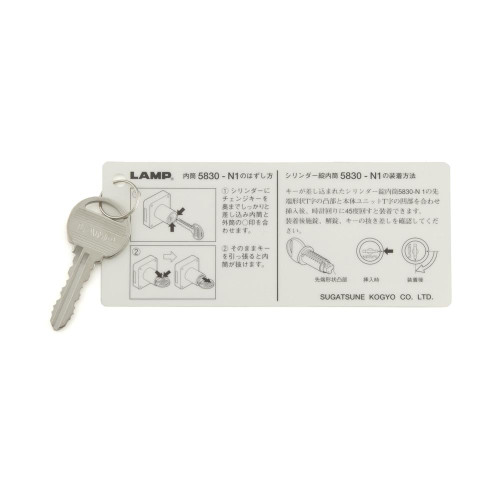

Cylinder Change Key - 5830-K1
Replacement Cylinder - 5830-N1
