Product Description

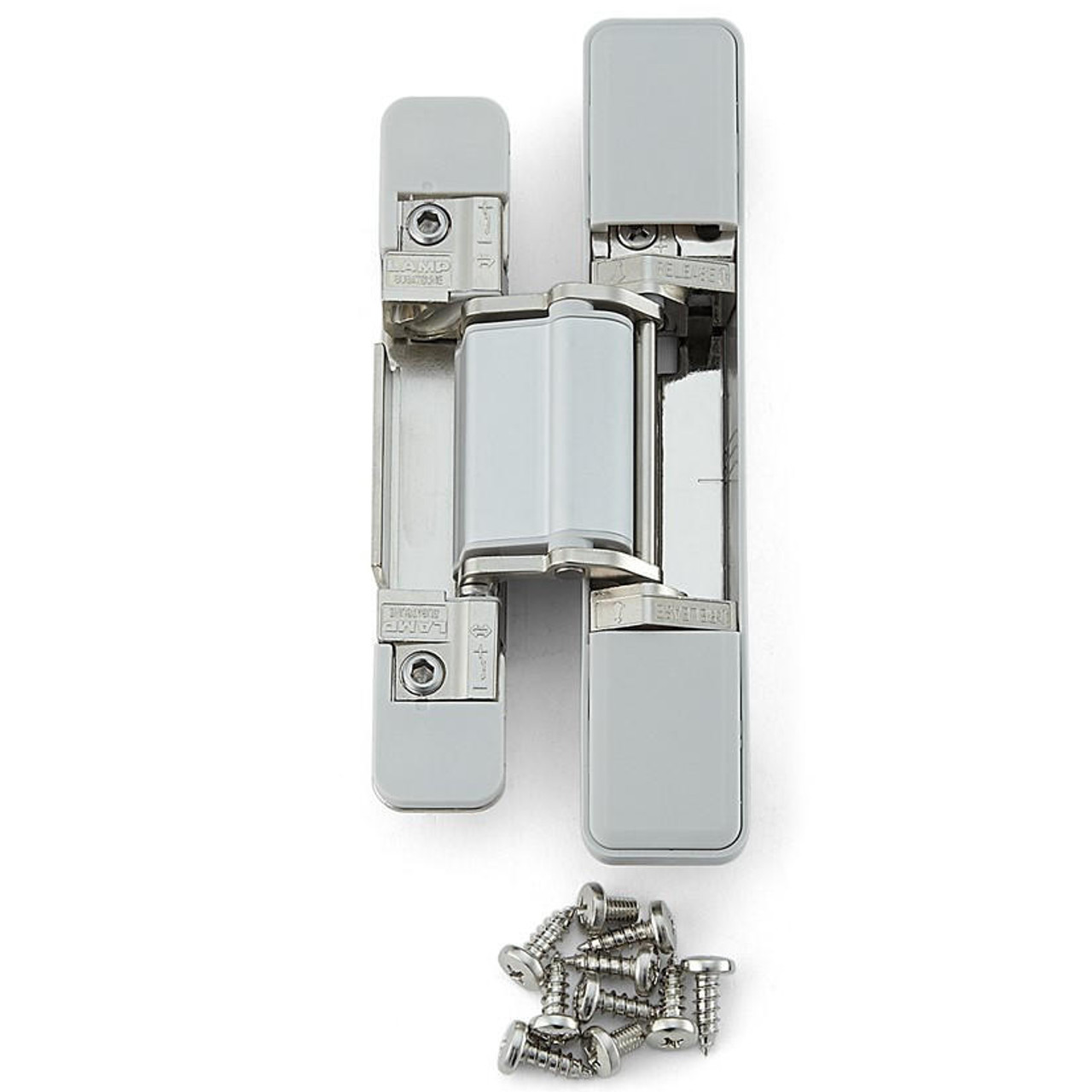

Sugatsune 3-WAY ADJUSTABLE CONCEALED HINGE HES3D-V135LGR
Features
• Small bore depth for compact assembly.
• 3-way adjustment function allows vertical, horizontal, and depth adjustment
after hinge installed.
• Easy installation: Hinge can be split into the door side and the frame side and
has temporary door holding feature.
• Unique seven link structure helps to prevent door sagging.
Remarks
• Our original new link arm mechanism provides different locus from other
products of the same series. Please confirm the position where the door is
opened by 90°on the left figure.
• Can be used with Sugatsune door damper/door closer shown below. Please
check and follow product specifications.
• LAPCON DOOR DAMPER LDD-S
• LAPCON DOOR DAMPER LDD-V
• LAPCON DOOR CLOSER LDC-N2
• Using with other door closers might lead to hinge damage.
• For using Sugatsune door closer, please install the door holder separately at
the stop position.
Parts Included
Binding head tapping screw 5 × 15
Option
Installation template HES3D-V135-TMP

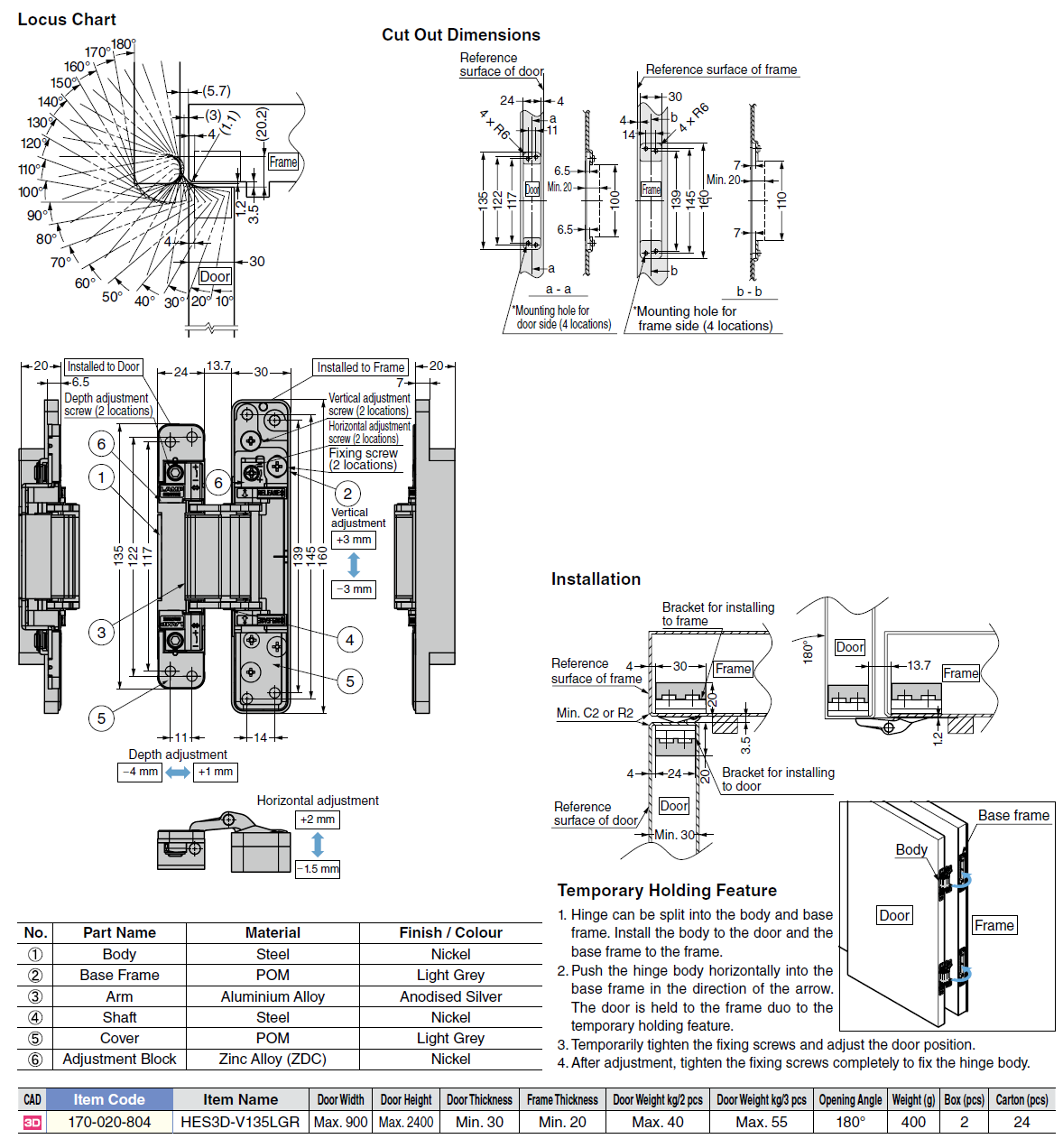

Temporary Holding Feature
1. Hinge can be split into the body and base
frame. Install the body to the door and the
base frame to the frame.
2. Push the hinge body horizontally into the
base frame in the direction of the arrow.
The door is held to the frame duo to the
temporary holding feature.
3. Temporarily tighten the fixing screws and adjust the door position.
4. After adjustment, tighten the fixing screws completely to fix the hinge body.
