Product Description

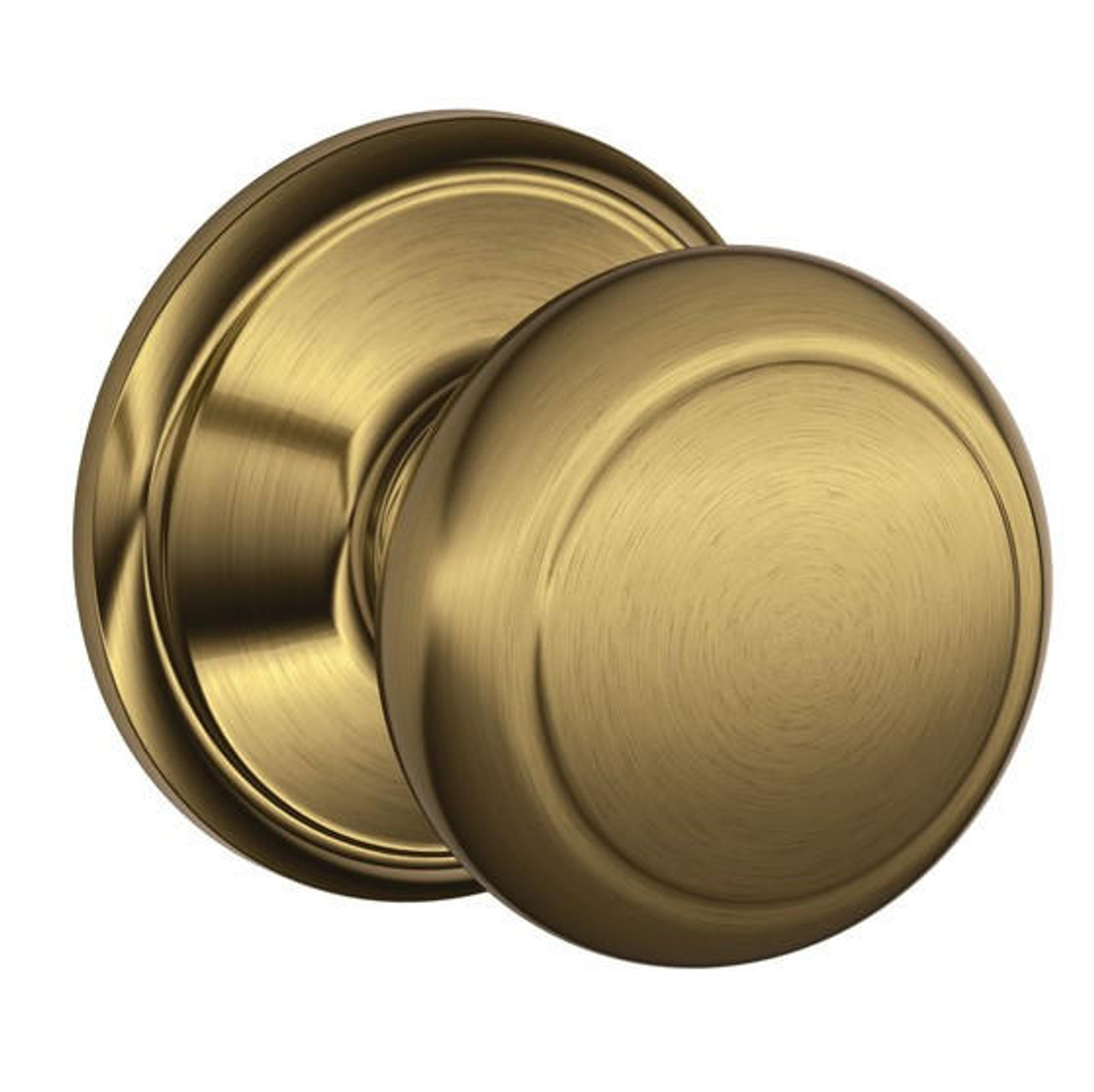

Schlage Lock F-Series Passage Knob Andover Series with a Standard Rosette
Both knobs/levers always unlocked
F-Series Knobs/Decorative Trim
DescriptionCertification:
ANSI/BHMA A156.2-2017 Commercial Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F10, F40 (CSV Only), F51A, F80 functions)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8"
housing diameter, 1/2"
throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip, no box
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section
Latch:
16-080 - Dual Option (Round, Drive-in)
STANDARD
Strike:
10-027 - Round Corner Full Lip
STANDARD
