Product Description

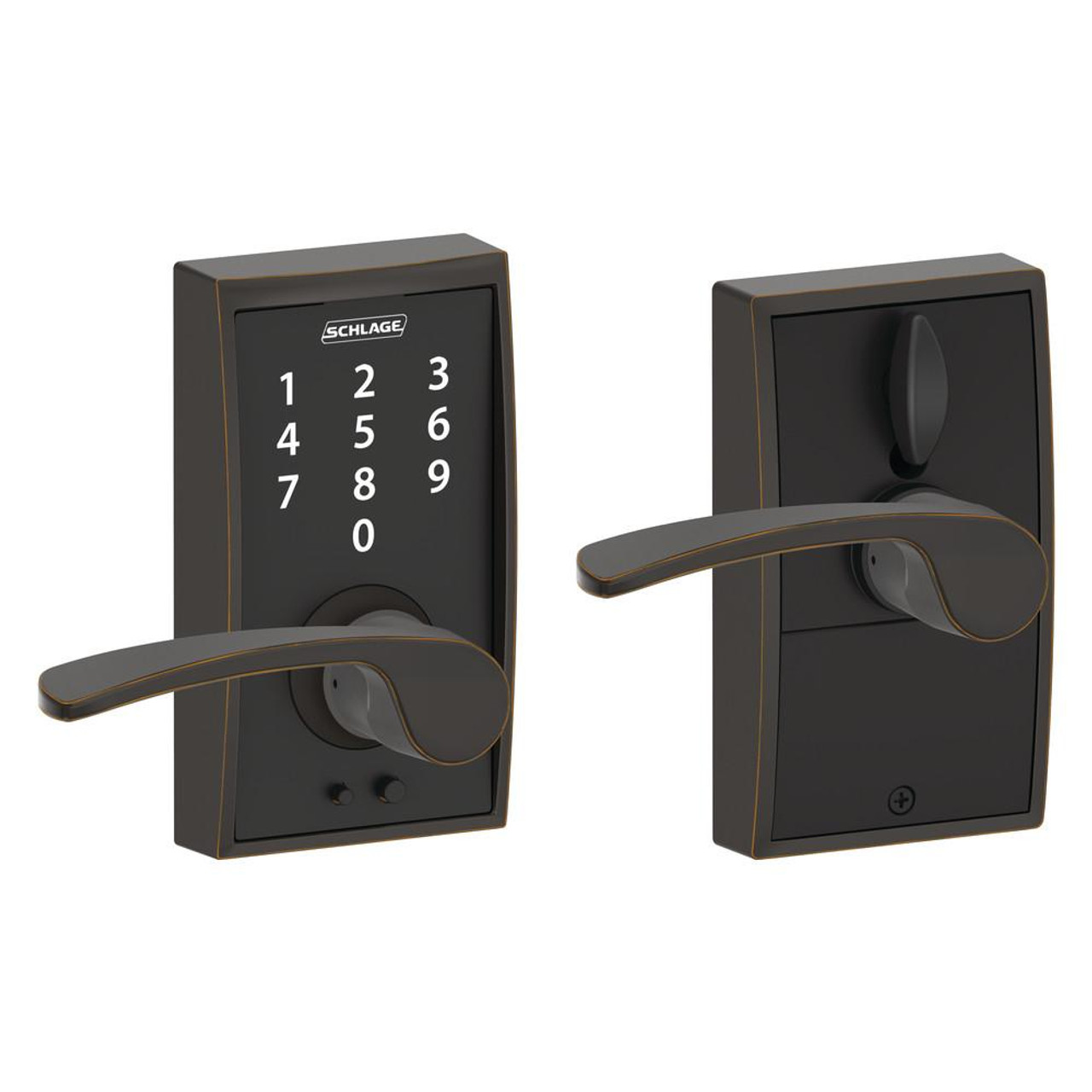

Schlage Touch Electronic Entry Lever FE695
• Unlocked from outside by valid access code
• Inside knob or lever always unlocked
• Interior switch sets lock to unlocked or
automatic re-locking modes
Product Dimensions (inches) (w x h x d) 3 x 5.4 x 7.9
ANSI/BHMA Commercial Grade 2
ANSI/BHMA Residential Grade AAA
Warranty 3 year electronics, limited lifetime
mechanical and finsh
Battery 9V battery (1)
Latch Throw: 1/2” throw, 7/8” housing diameter
Door Thickness: 1 3/8” to 1 3/4”
Cross Bore: 2 1/8”
Latch Faceplate Size: 1” x 2 1/4” radius corner
Latch/Backset 2 3/8” to 2 3/4” adjustable
Latch Faceplate Size: 1” x 2 1/4”
Latch Faceplate Options: Springlatch radius corner and circular drive-in faceplates
Strike: 1 5/8” x 2 1/4”, radius corner,full lip latch strikes
Codes: 2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures:
Outside lock body (exterior mounted): -35C to 66C
Inside lock body (interior mounted): -10C to 50C
Latche: 16-086 - Dual Option (Round, Drive-in) - STANDARD
Strike: 10-027 - Round Corner Full Lip -STANDARD
