Product Description

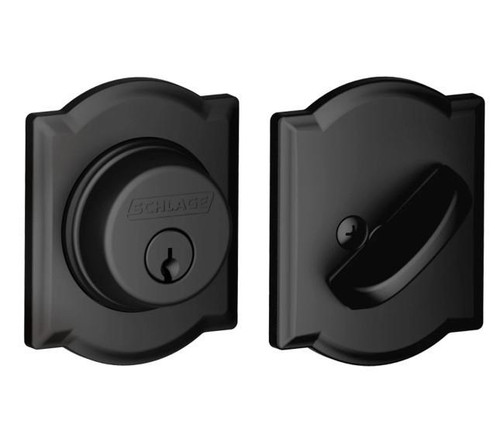

Schlage B60 Series Deadbolts
Grade 1 / AAA deadbolt standard features / configurations
Models: B60, B62, B80, B81
Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (B60, B80 and B81 only)
Deadbolt: 1” x 2 1/4”, radius corner, 1” housing diameter, 1” throw, latch number 12-321
Strike: 1 1/8” x 2 3/4”, 1/4” radius corner, strike number 10-116
Backset: Adjustable for 2 3/8” or 2 3/4”
Cylinder: Standard N: 5-pin, keyed 5-pin, C keyway, keyed alike (KA4)
Optional N6: 5-pin, keyed 5-pin, C keyway, keyed alike (KA4)
Optional N6-5: 6-pin, keyed 5-Pin, C keyway, keyed alike (KA4)
Door Range: Standard 1 3/8” - 1 3/4”, Optional door thickness available up to 2.1/4" for B60.
Keys: Two keys per lock, 5-pin, keyed 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3” screws
