Product Description

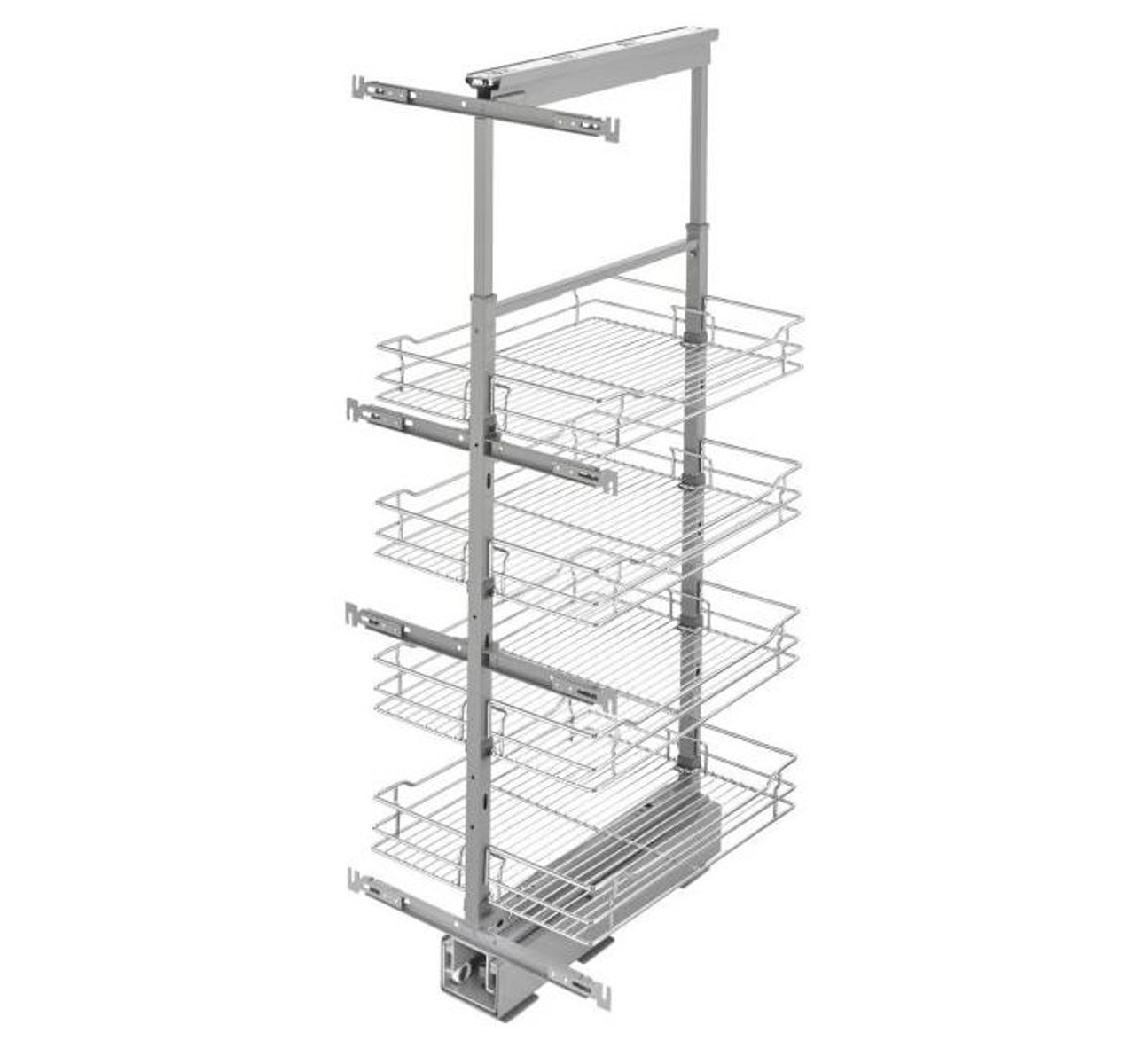

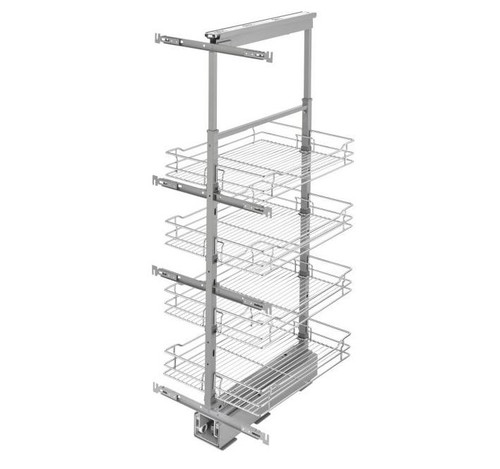

Rev-a-shelf Wire Pantry Pullout 45" Minimum Cabinet Height Several Opening Options 5743 Series
Bring functionality and style to your kitchen with a Chrome Pullout Pantry. Available in an array of sizes you are sure to find the right one for your storage needs. Complete and kit packaged, this beautiful pantry features adjustable door mounting brackets, 250lbs weight rated slide system, top and bottom soft-close slide slides, study frame and stylized wire baskets.
SPECIAL FEATURES:
Available in five widths and four height ranges for 24" deep cabinetry
Full-extension, 250 lb. rated slides with soft-close
Adjustable door mount brackets
Kit packaged with frame, baskets and hardware
Series Name 5743-04-CR-1
Short Description Chrome Wire (4) Shelf Pullout w/Soft-Close for Face Frame 9" Pantry w/Height of 43-13/32" to 50-3/4"
Primary Color Chrome
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 4 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 45"
Frameless Min. Cab. Opening Width (inches) 4 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 45"
Inset Min. Cab. Opening Width (inches) 4 1/2"
Width (min to max): 4 1/2"
Depth (min to max): 21 11/16"
Minimum Height (inches) 43 13/32"
Maximum Height (inches) 50 3/4"
Series Name 5743-08-CR-1
Short Description Chrome Wire (4) Shelf Pullout w/Soft-Close for Face Frame 12" Pantry w/Height of 43-13/32" to 50-3/4"
Primary Color Chrome
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 8 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 45"
Frameless Min. Cab. Opening Width (inches) 8 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 45"
Inset Min. Cab. Opening Width (inches) 8 1/2"
Width (min to max): 8 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 43 13/32"
Maximum Height (inches) 50 3/4"
Series Name 5743-10-CR-1
Short Description Chrome Wire (4) Shelf Pullout w/Soft-Close for Face Frame 15" Pantry w/Height of to 50-3/4"
Primary Color Chrome
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 10 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 45"
Frameless Min. Cab. Opening Width (inches) 10 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 45"
Inset Min. Cab. Opening Width (inches) 10 1/2"
Width (min to max): 10 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 43 13/32"
Maximum Height (inches) 50 3/4"
Series Name 5743-14-CR-1
Short Description Chrome Wire (4) Shelf Pullout w/Soft-Close for Face Frame 18" Pantry w/Height of 43-13/32" to 50-3/4"
Primary Color Chrome
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 14 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 45"
Frameless Min. Cab. Opening Width (inches) 14 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 45"
Inset Min. Cab. Opening Width (inches) 14 1/2"
Width (min to max): 14 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 43 13/32"
Maximum Height (inches) 50 3/4"
Series Name 5743-16-CR-1
Short Description Chrome Wire (4) Shelf Pullout w/Soft-Close for Face Frame 21" Pantry w/Height of 43-13/32" to 50-3/4"
Primary Color Chrome
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 16 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 45"
Frameless Min. Cab. Opening Width (inches) 16 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 45"
Inset Min. Cab. Opening Width (inches) 16 1/2"
Width (min to max): 16 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 43 13/32"
Maximum Height (inches) 50 3/4"
Series Name 5743-20-CR-1
Short Description Chrome Wire (4) Shelf Pullout w/Soft-Close for Face Frame 24" Pantry w/Height of 43-13/32" to 50-3/4"
Primary Color Chrome
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 20 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 45"
Frameless Min. Cab. Opening Width (inches) 20 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 45"
Inset Min. Cab. Opening Width (inches) 20 1/2"
Width (min to max): 20 11/16"
Depth (min to max): 21 11/16"
Minimum Height (inches) 43 13/32"
Maximum Height (inches) 50 3/4"
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet ceiling, door and floor
Number of Shelves 4
Primary Finish Plated
TSCA Title VI No
Order Increment 1
