Product Description

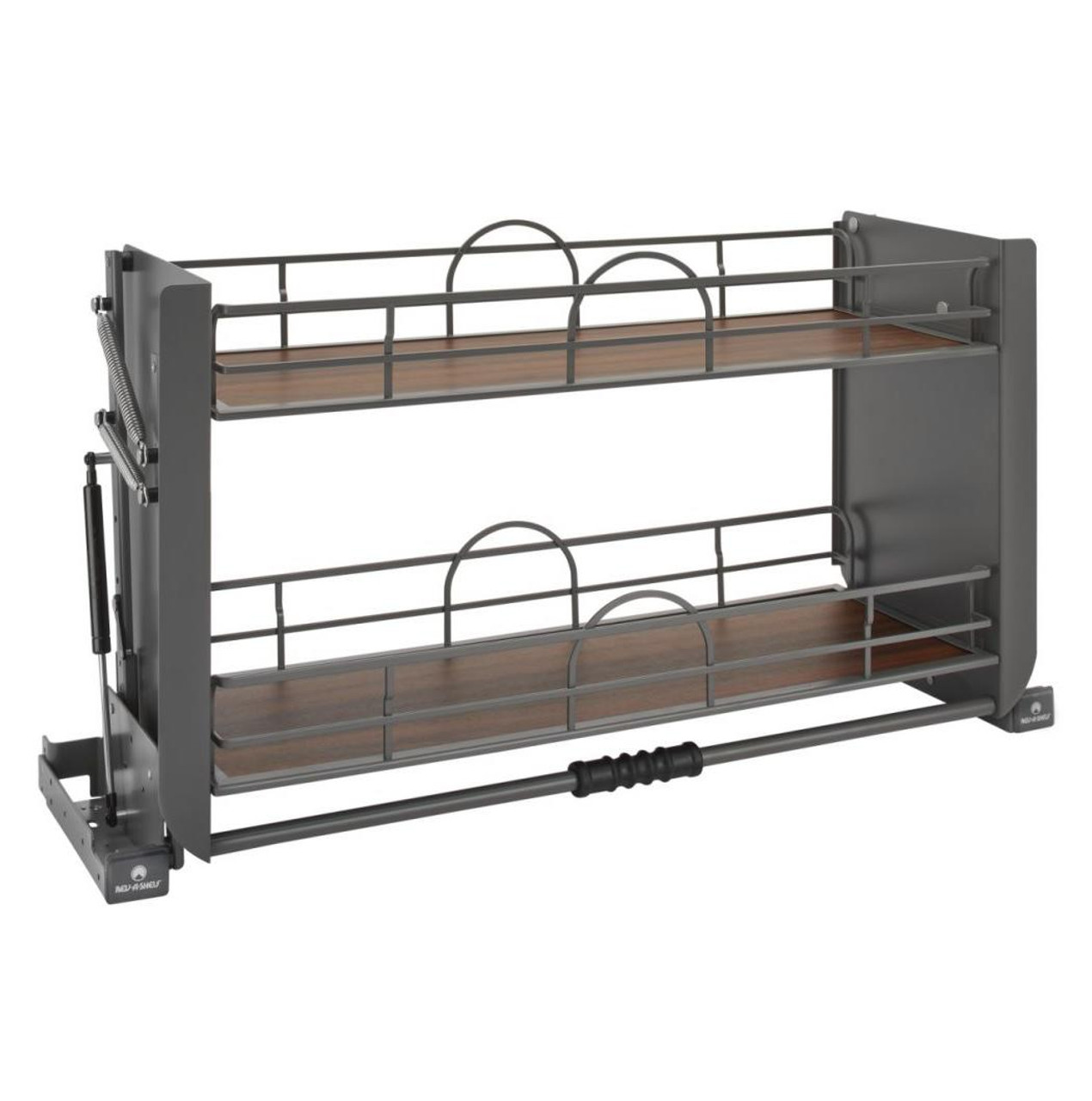

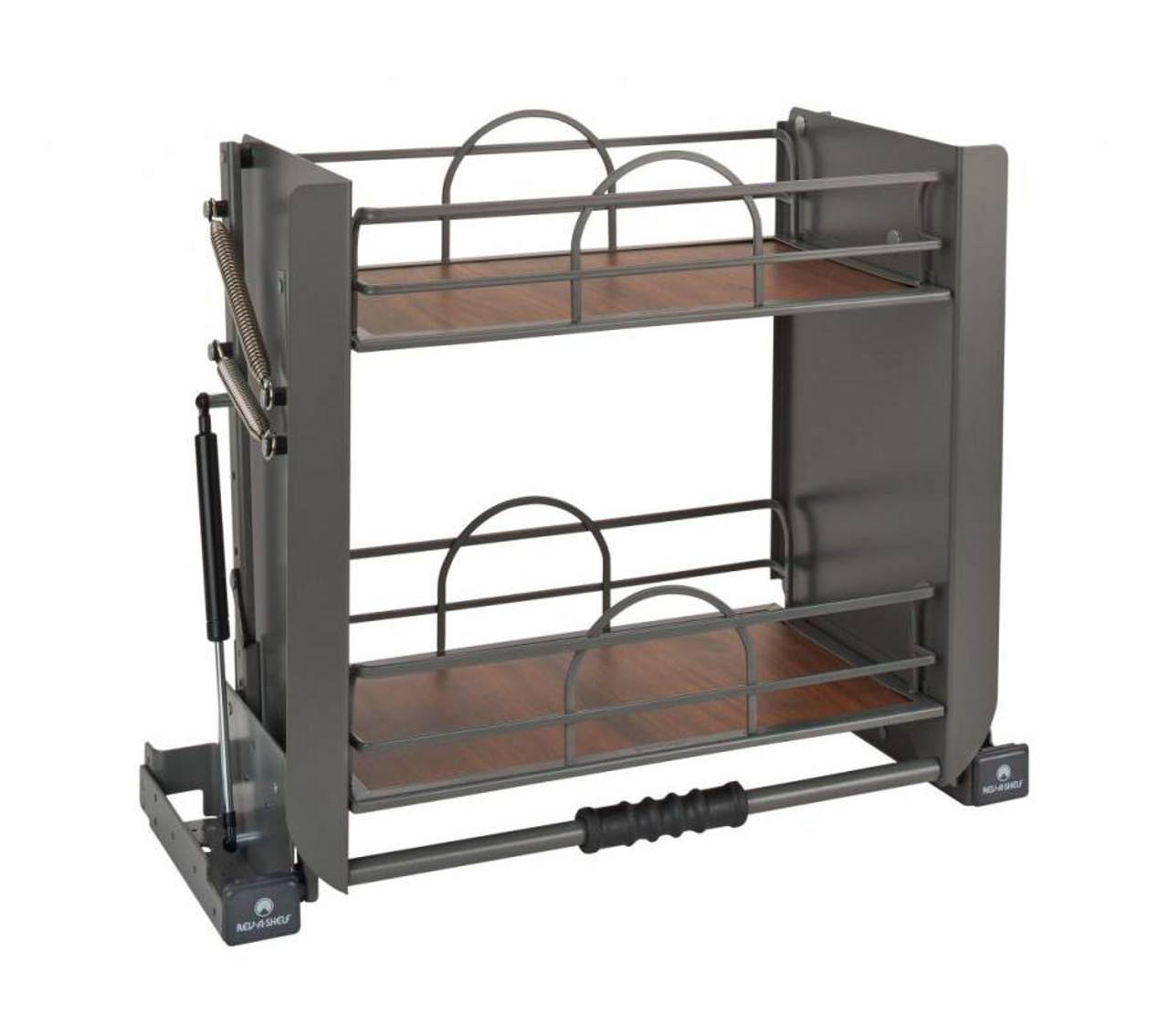

Rev-a-shelf Solid Bottom Pull-Down Shelving System 5PD-XXFOG Series
Are you tired of reaching for the step ladder to access your cabinets? We have the solution with our solid bottom pull-down shelving system designed specifically to bring things out and down from the cabinet. This ingenious accessory is easy to operate and holds up to 26 lbs.
Series Name 5PD-24FOG
Short Description Solid Bottom Pulldown Shelving System for Wall 24"
Primary Color Orion Gray
Primary Material Metal
Face Frame Min. Cab. Opening Width (inches) 21"
Face Frame Min. Cab. Opening Depth (inches) 10 3/4"
Face Frame Min. Cab. Opening Height (inches) 18 1/2"
Frameless Min. Cab. Opening Width (inches) 22 1/2"
Frameless Min. Cab. Opening Depth (inches) 10 3/4"
Frameless Min. Cab. Opening Height (inches) 18 1/2"
Inset Min. Cab. Opening Width (inches) 21"
Inset Min. Cab. Opening Depth (inches) 10 7/8"
Inset Min. Cab. Opening Height (inches) 18 7/32"
Width (min to max): 22 3/16"
Depth (min to max): 10 1/8"
Height (min to max): 18 7/32"
Series Name 5PD-36FOG
Short Description Solid Bottom Pulldown Shelving System for Wall 36"
Primary Color Orion Gray
Primary Material Metal
Face Frame Min. Cab. Opening Width (inches) 33"
Face Frame Min. Cab. Opening Depth (inches) 10 3/4"
Face Frame Min. Cab. Opening Height (inches) 18 1/2"
Frameless Min. Cab. Opening Width (inches) 34 1/2"
Frameless Min. Cab. Opening Depth (inches) 10 3/4"
Inset Min. Cab. Opening Width (inches) 33"
Inset Min. Cab. Opening Depth (inches) 10 7/8"
Inset Min. Cab. Opening Height (inches) 18 7/32"
Width (min to max): 34 1/32"
Depth (min to max): 10 1/8"
Height (min to max): 18 7/32"
Door Mountable No
Installation Type Cabinet Floor/Side Mounted
Mount Type Cabinet floor and side walls
Number of Shelves 2
Primary Finish Polished
TSCA Title VI No
Order Increment 1
SPECIAL FEATURES:
Designed for 24" and 36" wall cabinets
Solid bottom walnut shelves with satin finish with orion gray flat wire accents
Mounts to cabinet floor or sidewalls
Side and bottom mount brackets
Gas-assisted lifting/lowering mechanism
Locks into down position for hands-free accessibility
Pulls down 11-1/2" and out 16-3/4"
TSCA Title VI compliant
