Product Description
Rev-a-shelf Solid Bottom Pantry Pullout 52-1/4" Minimum Cabinet Height Several Opening Options 5350 Series
Rev-A-Shelf’s 5300 Pullout Pantry Series is the answer to your full access (frameless) cabinetry needs. The series offers basket depths for 24” deep cabinetry and comes in five different widths and four height ranges. Available in your choice of beautiful maple or contemporary gray solid bottom to match every kitchen style.
SPECIAL FEATURES:
Available in five widths and four height ranges for full access (frameless) 24" deep cabinetry

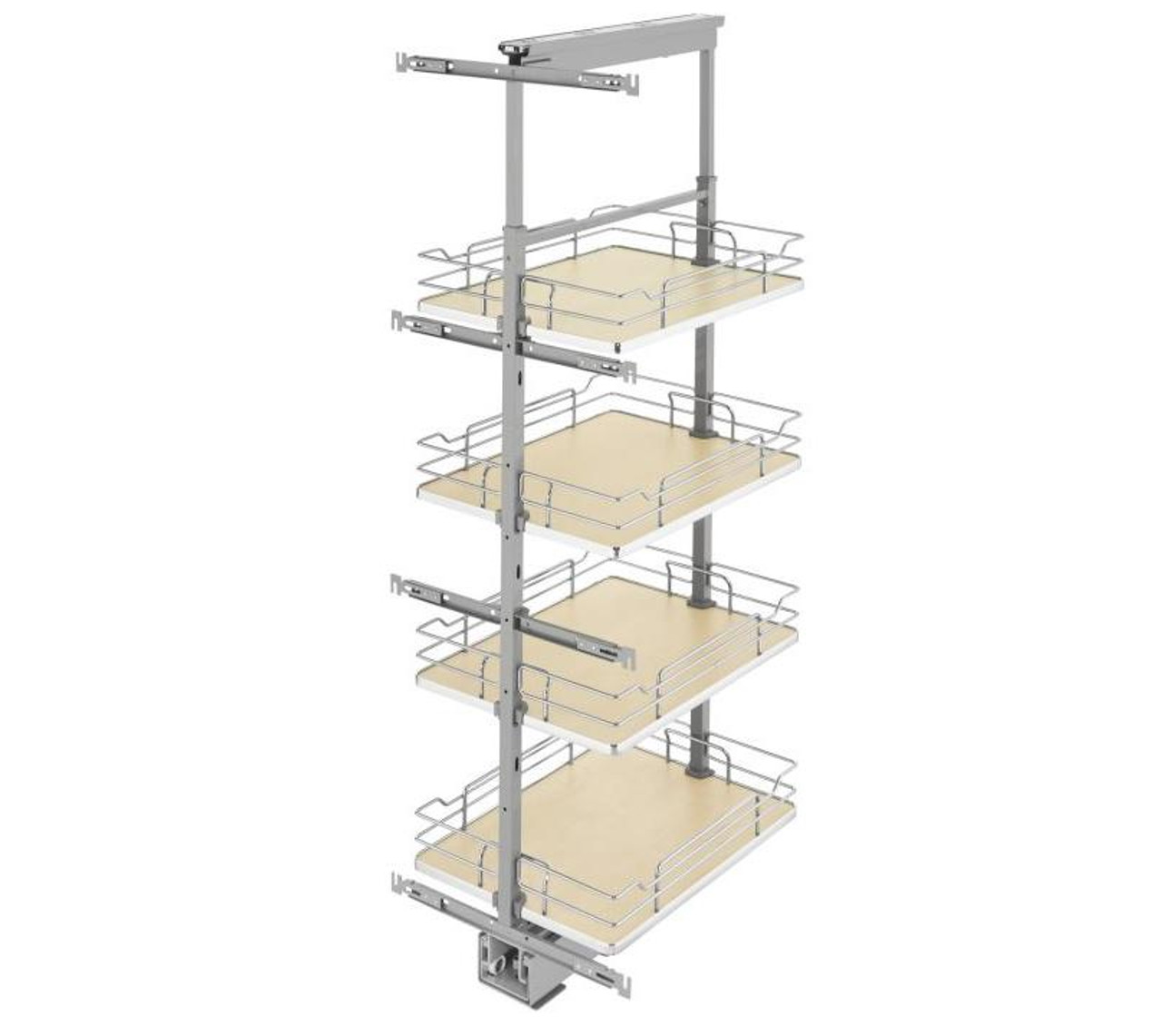

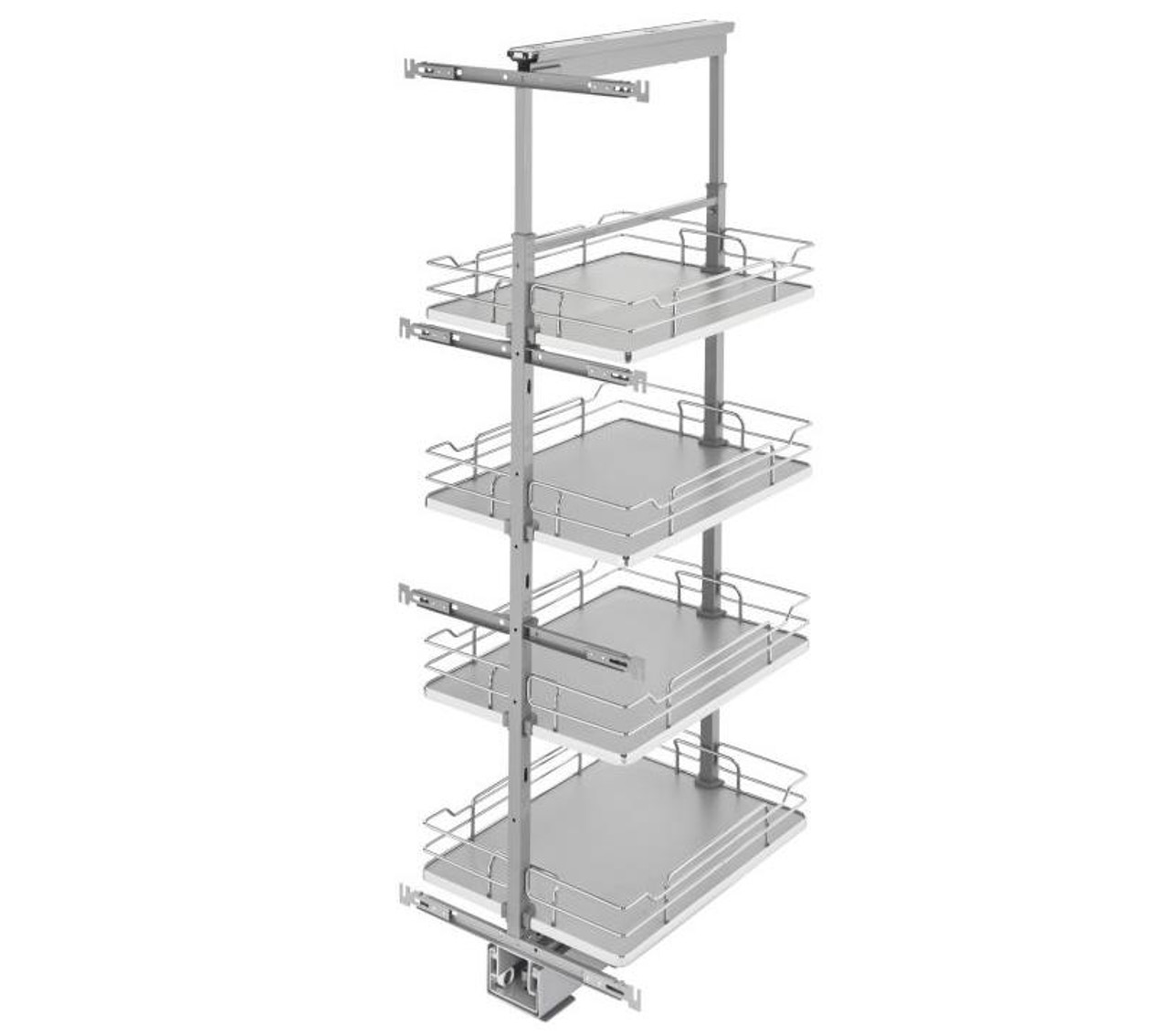

Natural maple or gray solid bottom shelves
Full-extension slides with soft-close, 250 lb. rated
Micro-adjustment door mounting brackets
Kit packaged with frame, baskets and hardware
TSCA Title VI compliant
Series Name 5350-08
Short Description Gray or Natural Maple Solid Bottom (4) Shelf Pullout w/ Soft-Close for Face Frame 12" Pantry w/Height of 50-3/4" to 58-9/32"
Primary Color Gray or Natural Maple
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 8 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 52 1/4"
Frameless Min. Cab. Opening Width (inches) 8 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 52 1/4"
Width (min to max): 8 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 50 3/4"
Maximum Height (inches) 58 9/32"
Series Name 5350-10
Short Description Gray or Natural Maple Solid Bottom (4) Shelf Pullout w/ Soft-Close for Full Access 12" Pantry w/Height of 50-3/4" to 58-9/32"
Primary Color Gray or Natural Maple
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 10 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 52 1/4"
Frameless Min. Cab. Opening Width (inches) 10 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 52 1/4"
Width (min to max): 10 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 50 3/4"
Maximum Height (inches) 58 9/32"
Series Name 5350-13
Short Description Gray or Natural Maple Solid Bottom (4) Shelf Pullout w/ Soft-Close for Full Access 15" Pantry w/Height of 50-3/4" to 58-9/32"
Primary Color Gray or Natural Maple
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 13 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 52 1/4"
Frameless Min. Cab. Opening Width (inches) 13 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 52 1/4"
Width (min to max): 13 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 50 3/4"
Maximum Height (inches) 58 9/32"
Series Name 5350-16
Short Description Gray or Natural Maple Solid Bottom (4) Shelf Pullout w/ Soft-Close for Full Access 18" Pantry w/Height of 50-3/4" to 58-9/32"
Primary Color Gray or Natural Maple
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 16 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 52 1/4"
Frameless Min. Cab. Opening Width (inches) 16 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 52 1/4"
Width (min to max): 16 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 50 3/4"
Maximum Height (inches) 58 9/32"
Series Name 5350-19
Short Description Gray or Natural Maplee Solid Bottom (4) Shelf Pullout w/ Soft-Close for Full Access 18" Pantry w/Height of 50-3/4" to 58-9/32"
Primary Color Gray or Natural Maple
Primary Material Wire
Face Frame Min. Cab. Opening Width (inches) 19 1/2"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 52 1/4"
Frameless Min. Cab. Opening Width (inches) 19 1/2"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 52 1/4"
Width (min to max): 19 1/4"
Depth (min to max): 21 11/16"
Minimum Height (inches) 50 3/4"
Maximum Height (inches) 58 9/32"
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet ceiling, door and floor
Number of Shelves 4
TSCA Title VI Yes
Order Increment 1
