Product Description

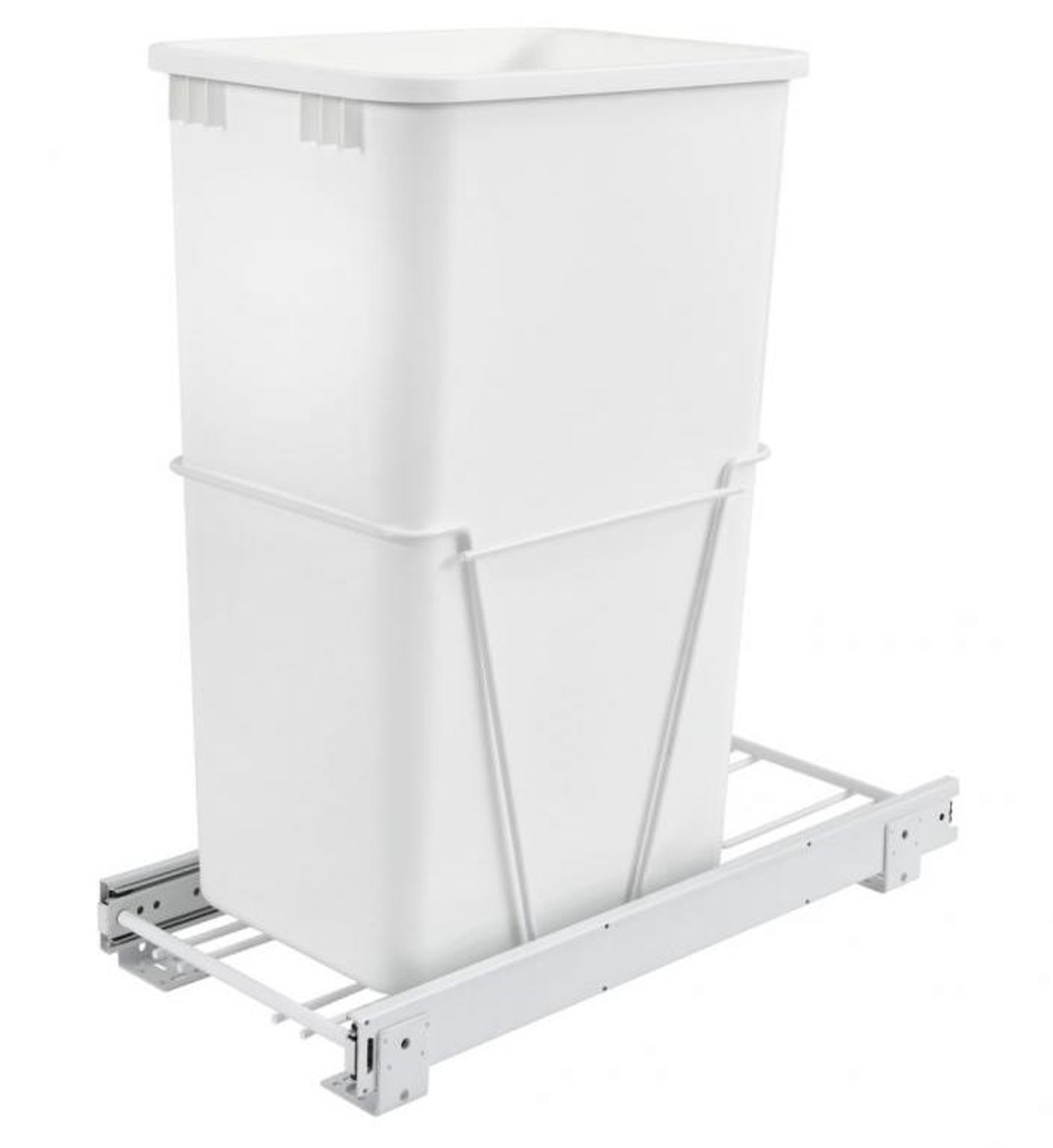

Rev-a-shelf Single 50 Qt. Pull-Out White Waste Container with 3/4 Extension Slide RV-12PB-50
The RV Series of wire frame waste container pullouts offers several sizes, finishes and slide options to accommodate a variety of cabinet openings, styles and price points.
Series Name RV-12PB-50
Short Description Single 50 Qt. Pull-Out White Waste Container with 3/4 Extension Slides
Primary Color White
Frame Color White
Waste Container Color White
Frame Material Wire
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 11 3/8"
Face Frame Min. Cab. Opening Depth (inches) 22 5/16"
Face Frame Min. Cab. Opening Height (inches) 24 5/16"
Frameless Min. Cab. Opening Width (inches) 11 3/8"
Frameless Min. Cab. Opening Depth (inches) 22 5/16"
Frameless Min. Cab. Opening Height (inches) 24 5/16"
Inset Min. Cab. Opening Width (inches) 11 3/8"
Inset Min. Cab. Opening Depth (inches) 23 1/16"
Inset Min. Cab. Opening Height (inches) 24 5/16"
Width (min to max): 10 11/16"
Depth (min to max): 22 5/16"
Height (min to max): 24 1/16"
Door Mountable Yes, Sold Separately
Installation Type Cabinet Floor Mounted
Mount Type Cabinet floor
TSCA Title VI No
Number of Waste Containers 1
Waste Container Capacity 50.000000
Lid Capacity 50.000000
Order Increment 1
Designed for 12", 15" and 18" base cabinets
Single 30, 35 and 50 qt. and double 27 and 35 qt. polymer containers, black, metallic silver or white
4-screw installation
Chrome-plated or white powder coated welded wire frame
2 slide configurations available:
- 3/4 or full-extension, ball-bearing, 100 lb. rated slides
Mounts to cabinet floor
Door mount kit (sold separately)
35 and 50 qt. polymer lids available (sold separately)
- RV-12PB (LE, 50 S, L and 50) come w/ matching lid
