Product Description

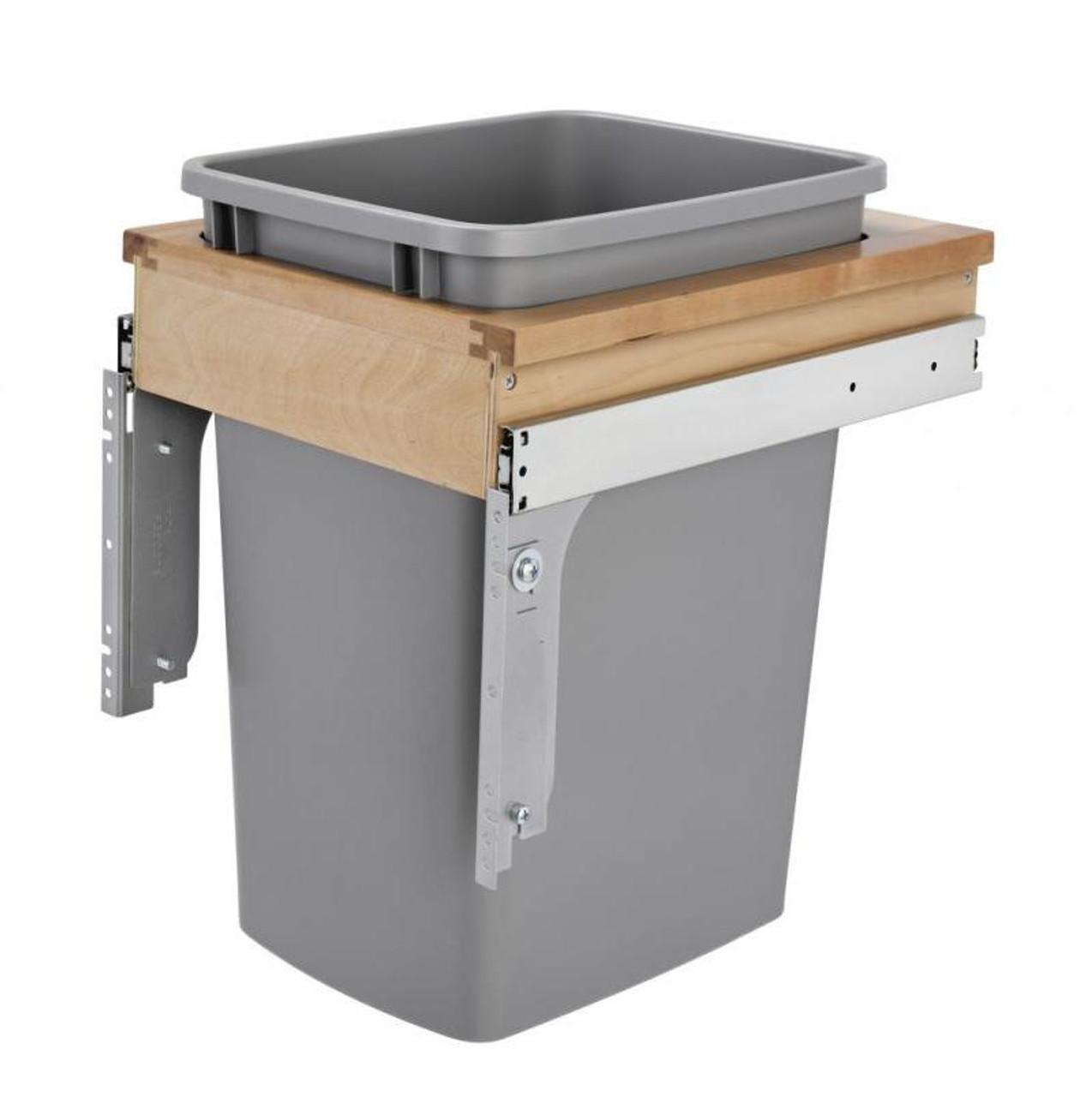

Rev-A-Shelf Single 35 Qt. Pullout Top Mount Wood and Silver Waste Container for 12" W x 18" D 1-1/2" Face Frame Cabinet 4WCTM-1516DM-1
Rev-A-Shelf's 4WCTM Series, designed with durability in mind, is available in a multitude of sizes.
Series Name 4WCTM-1516DM-1
Short Description Single 35 Qt. Pullout Top Mount Wood and Silver Waste Container for 12" W x 18" D 1-1/2" Face Frame Cabinet
Primary Color Natural Maple
Frame Color Natural maple
Waste Container Color Metallic Silver
Frame Material Wood
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 12"
Face Frame Min. Cab. Opening Depth (inches) 16 1/2"
Face Frame Min. Cab. Opening Height (inches) 18"
Frameless Min. Cab. Opening Width (inches) 12"
Frameless Min. Cab. Opening Depth (inches) 16 1/2"
Frameless Min. Cab. Opening Height (inches) 18"
Inset Min. Cab. Opening Width (inches) 12"
Inset Min. Cab. Opening Depth (inches) 17 1/4"
Inset Min. Cab. Opening Height (inches) 18"
Width (min to max): 12"
Minimum Depth (inches) 16 7/16"
Maximum Depth (inches) 17 1/2"
Height (min to max): 17 7/8"
Door Mountable Required, Included
Installation Type Cabinet Side Mounted
Mount Type Cabinet door and side walls
Primary Finish Semi-gloss
TSCA Title VI Yes
Number of Waste Containers 1
Waste Container Capacity 35.000000
Order Increment 1
Designed for 15", 18", 21", 24", and 27" base cabinets
Single 35 and 50 qt., double 27, 35 and 50 qt. and quadruple 27 qt. polymer containers, metallic silver or white
(2) finishes available:
- Natural maple dovetail frame with semi-gloss finish
-Walnut dovetail frame with satin finish
Full-extension with 1-1/2" over-travel, ball-bearing, 150 lb. rated slides (soft-close options available)
RM units feature patented Rev-A-Motion soft-open/soft-close slides (US Patent No. 8,297,722)
Rear storage with all single units
Side storage with 4WCTM-2450BBSCDM
- Storage can be accessed right or left handed based on slide installation
Mounts to cabinet door, rear* and side walls (quadruple 27 qt. does NOT mount to cabinet door)
Adjustable rear mount brackets on face frame units*
Pre-assembled door mount brackets
35 and 50 qt. polymer lids available (sold separately)
TSCA Title VI compliant
