Product Description
Rev-a-shelf Natural Maple Tiered Combination Drawer28-1/2" Minimum Opening w/ BLUMOTION Soft-Close for Full Access 30" Base 4WTCD-724HFLSC-1

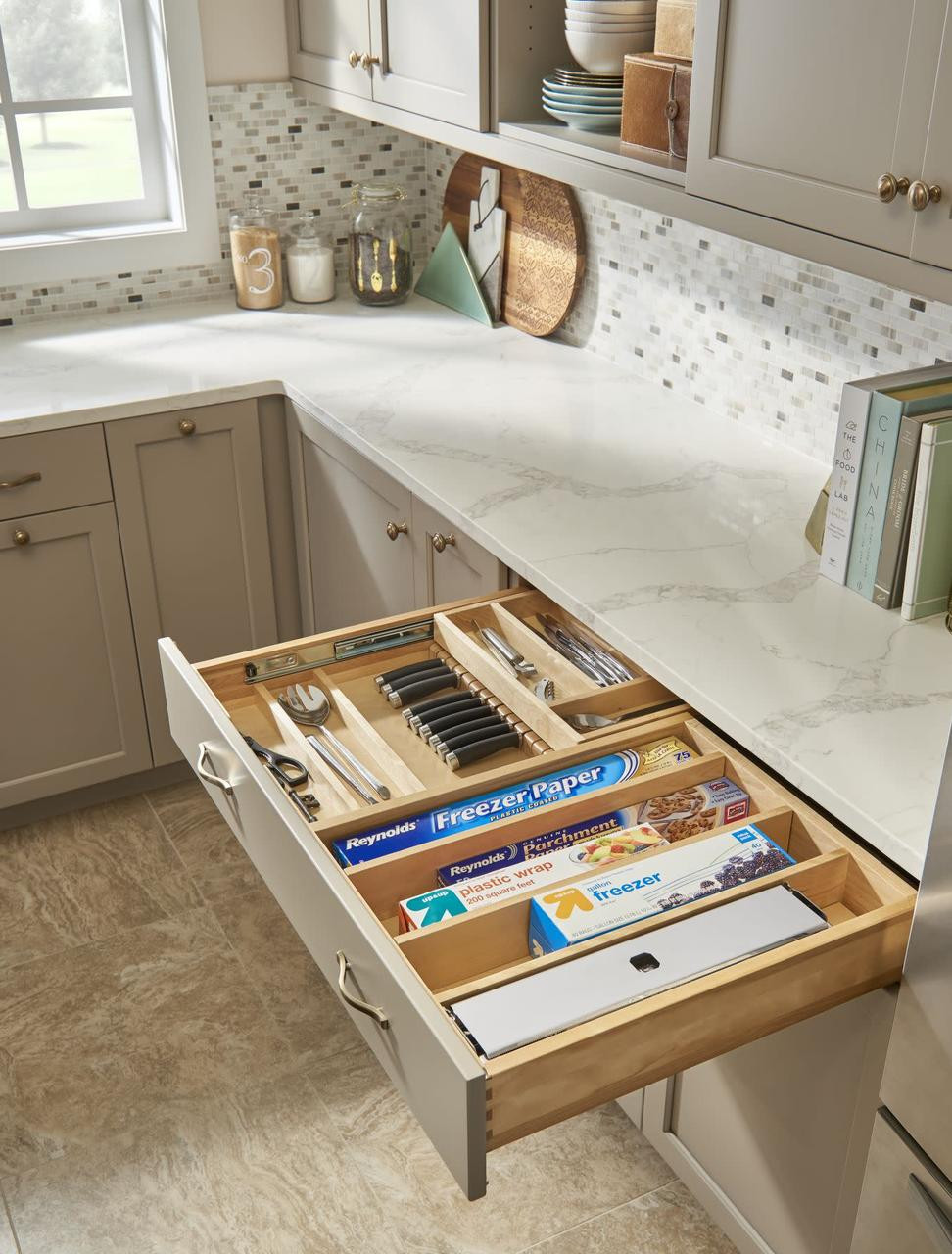

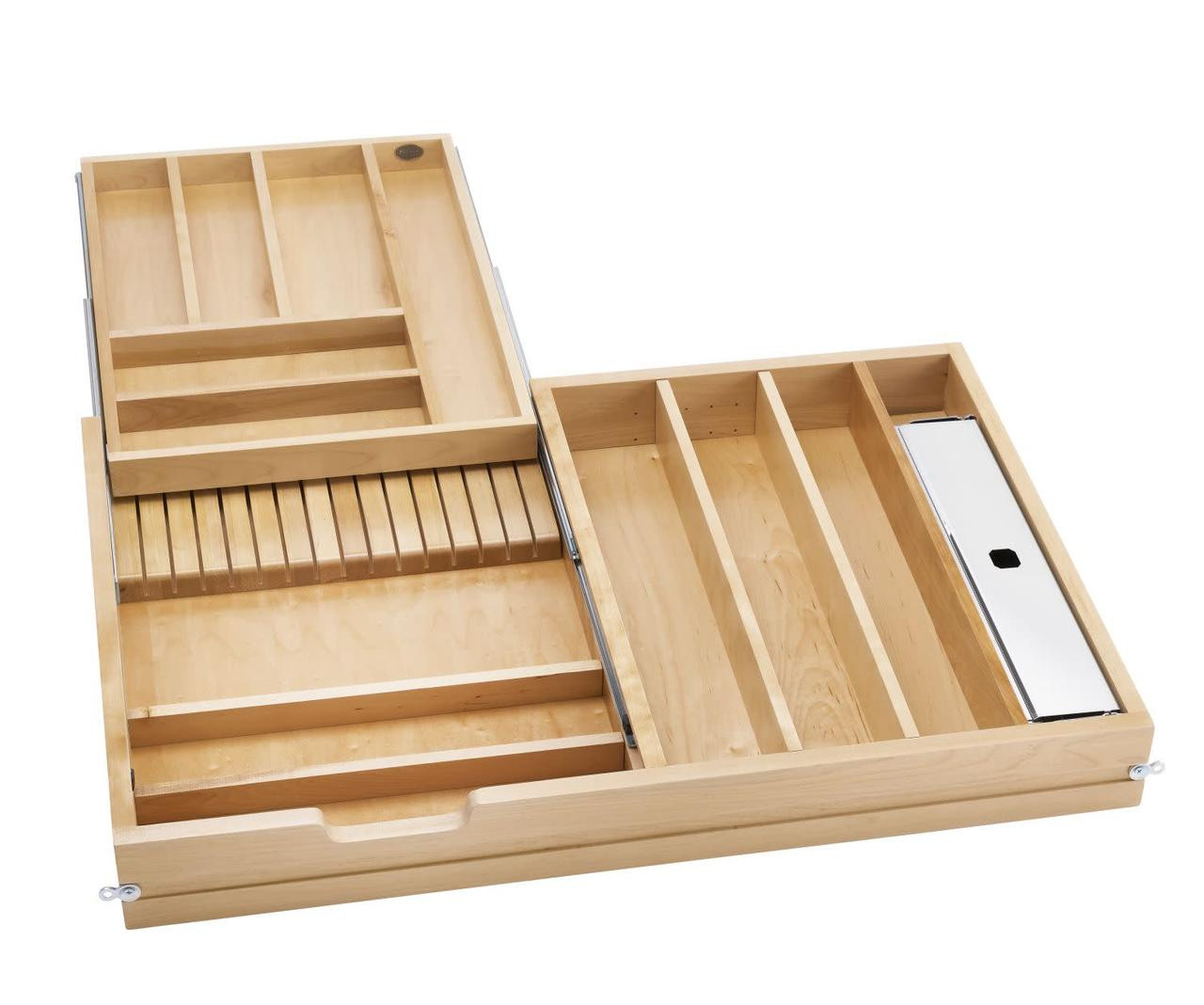

The Rev-A-Shelf® Tiered Cutlery Drawer transforms everyday drawer storage into a smarter, more efficient solution. With options designed for face frame or frameless cabinets, this fully assembled maple drawer replaces your existing drawer box and fits seamlessly into the same cabinet space. The innovative two-tier design allows the top tier to slide smoothly back into the cabinet on ball-bearing slides, providing clear access to utensils stored below. Adjustable door-mount brackets are included and required for proper operation, while the durable semi-gloss finish delivers lasting beauty and performance. Available with or without slides to create a truly customized organization solution.
Series Name 4WTCD-724HFLSC-1
Short Description Natural Maple Tiered Combination Drawer w/ BLUMOTION Soft-Close for Full Access 30" Base
Primary Color Natural Maple
Primary Material Wood
Frameless Min. Cab. Opening Width (inches) 28 1/2"
Frameless Min. Cab. Opening Depth (inches) 22 1/2"
Frameless Min. Cab. Opening Height (inches) 4 1/2"
Inset Min. Cab. Opening Width (inches) 28 1/2"
Inset Min. Cab. Opening Depth (inches) 23 1/4"
Inset Min. Cab. Opening Height (inches) 4 1/2"
Width (min to max): 28 1/2"
Depth (min to max): 22 3/16"
Height (min to max): 4 7/16"
Door Mountable Yes, Included
Installation Type Drawer Replacement
Mount Type Cabinet door, rear and side walls
Drawer Compartments (5) compartments and built-in knife organizer
Primary Finish Semi-gloss
TSCA Title VI Yes
Order Increment 1
Patent Number D843,791
SPECIAL FEATURES:
Designed for 30" and 36" base cabinet drawers
Complete drawer system, just add your drawer front
Easy installation
5/8" drawer side material, natural maple construction with semi-gloss finish
Full-extension, TANDEM, 90 lb. rated, concealed slides with BLUMOTION soft-close
Drawer features up to (6) compartments and built-in knife organizer
Sliding top tray features up to (5) compartments
Mounts to cabinet drawer front, rear and side walls
Figure 8 door mount brackets
(1) Foil wrap insert
Patent No. D789,750S1
TSCA Title VI compliant
