Product Description

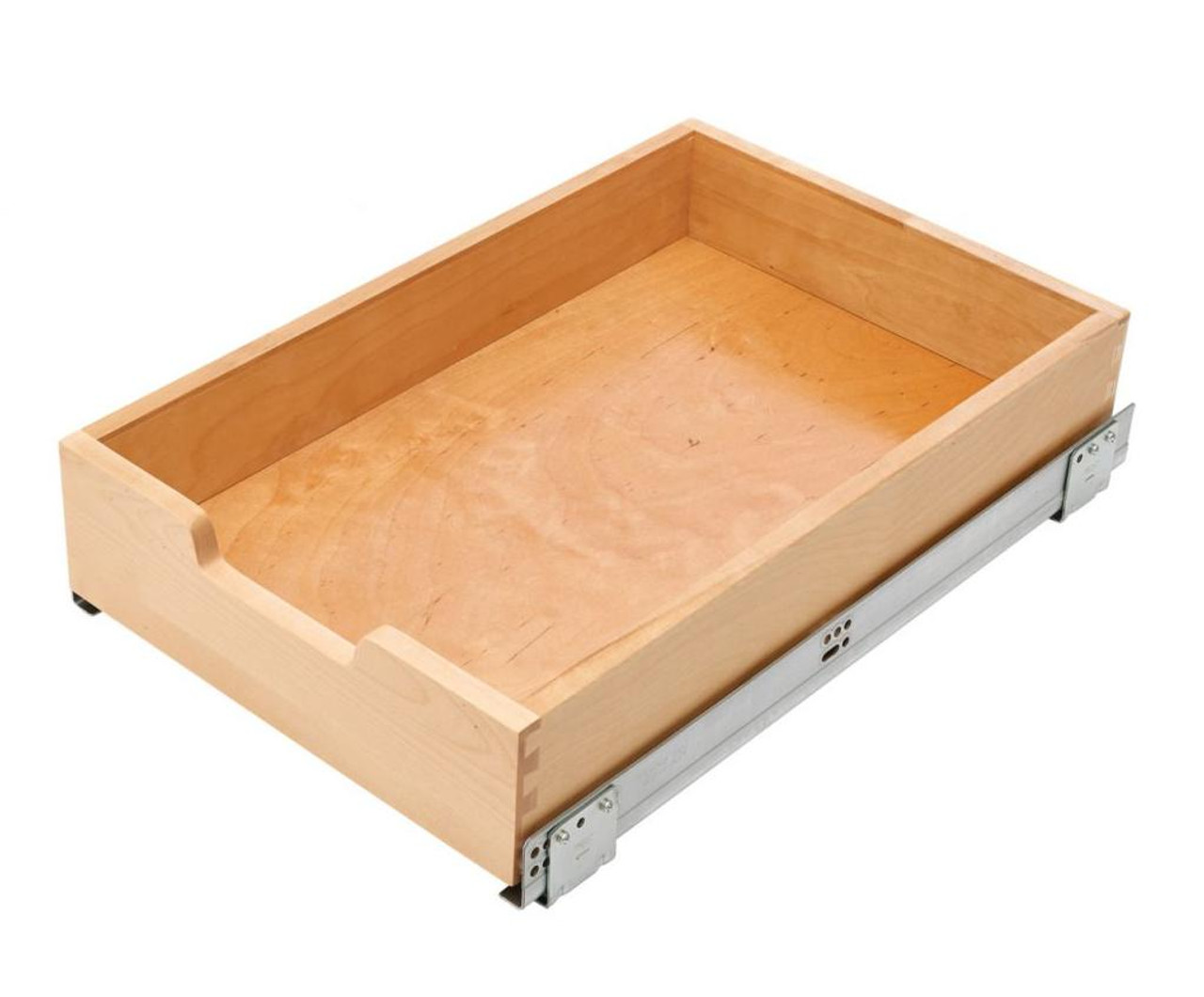

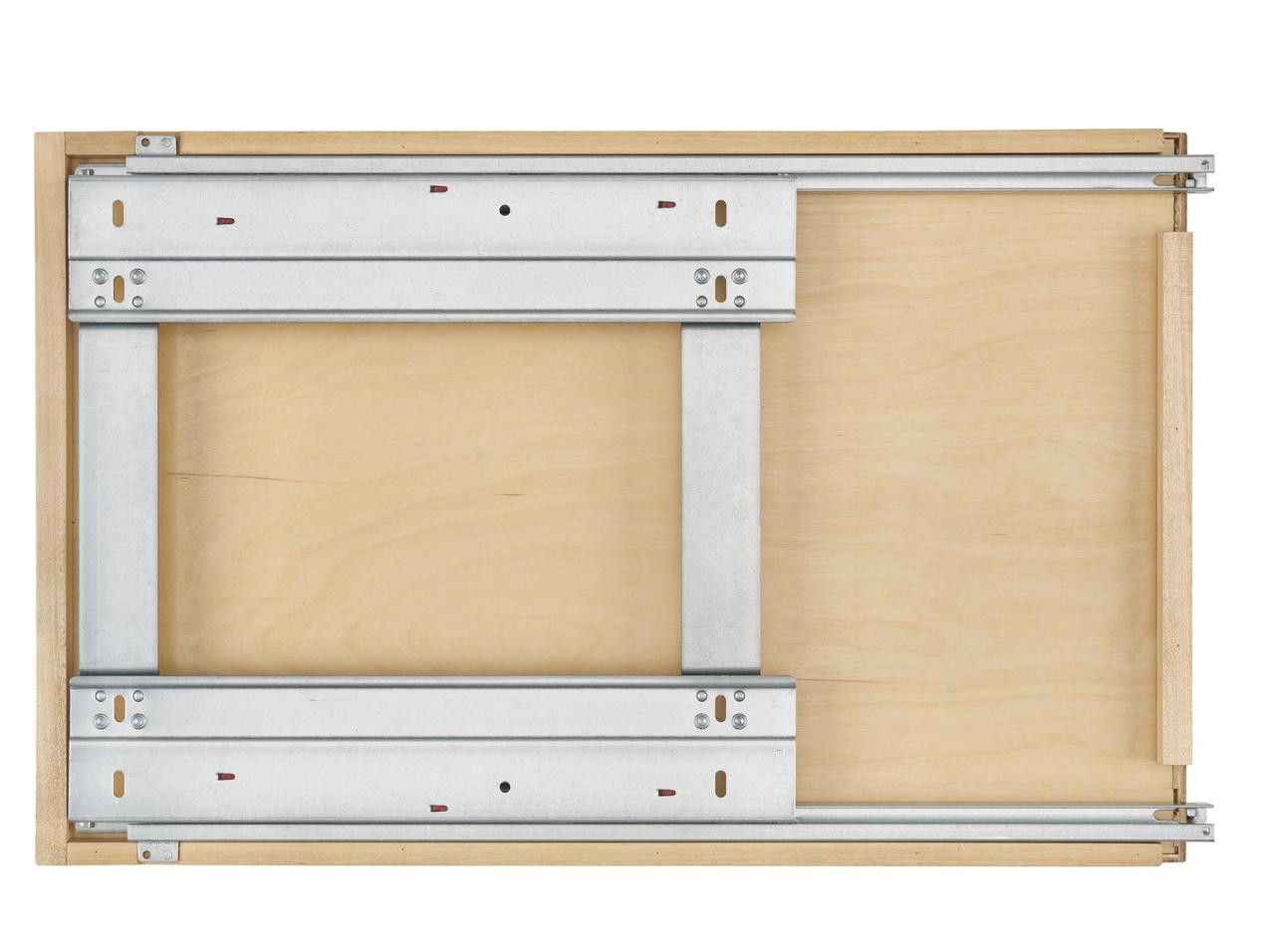

Rev-a-shelf Natural Maple Standard Drawer Box w/ BLUMOTION Soft-Close for 18" Drawer/Door Base 4WDB4-18SC-1
The simple but effective wood pullout drawer by Rev-A-Shelf brings hard to reach items to your fingertips. Available with 3/4 extension soft-close, or full-extension BLUMOTION soft-close slides it comes fully assembled and features simple installation with only 4-screws.
Series Name 4WDB4-18SC-1
Short Description Natural Maple Standard Drawer Box w/ BLUMOTION Soft-Close for 18" Drawer/Door Base
Primary Color Natural Maple
Primary Material Wood
Face Frame Min. Cab. Opening Width (inches) 15"
Face Frame Min. Cab. Opening Depth (inches) 21 3/4"
Face Frame Min. Cab. Opening Height (inches) 5"
Frameless Min. Cab. Opening Width (inches) 15"
Frameless Min. Cab. Opening Depth (inches) 21 3/4"
Frameless Min. Cab. Opening Height (inches) 5"
Inset Min. Cab. Opening Width (inches) 15"
Inset Min. Cab. Opening Depth (inches) 22 1/2"
Inset Min. Cab. Opening Height (inches) 5"
Width (min to max): 14 1/16"
Depth (min to max): 21 21/32"
Height (min to max): 4 27/32"
Door Mountable No
Installation Type Cabinet Floor Mounted
Mount Type Cabinet floor
Number of Shelves 1
Primary Finish Semi-gloss
TSCA Title VI Yes
Order Increment 1
SPECIAL FEATURES
–
Designed for 15", 18", 21" and 24" base cabinets
15" is available in 18" or 22" depths
Veneer plywood dovetail construction

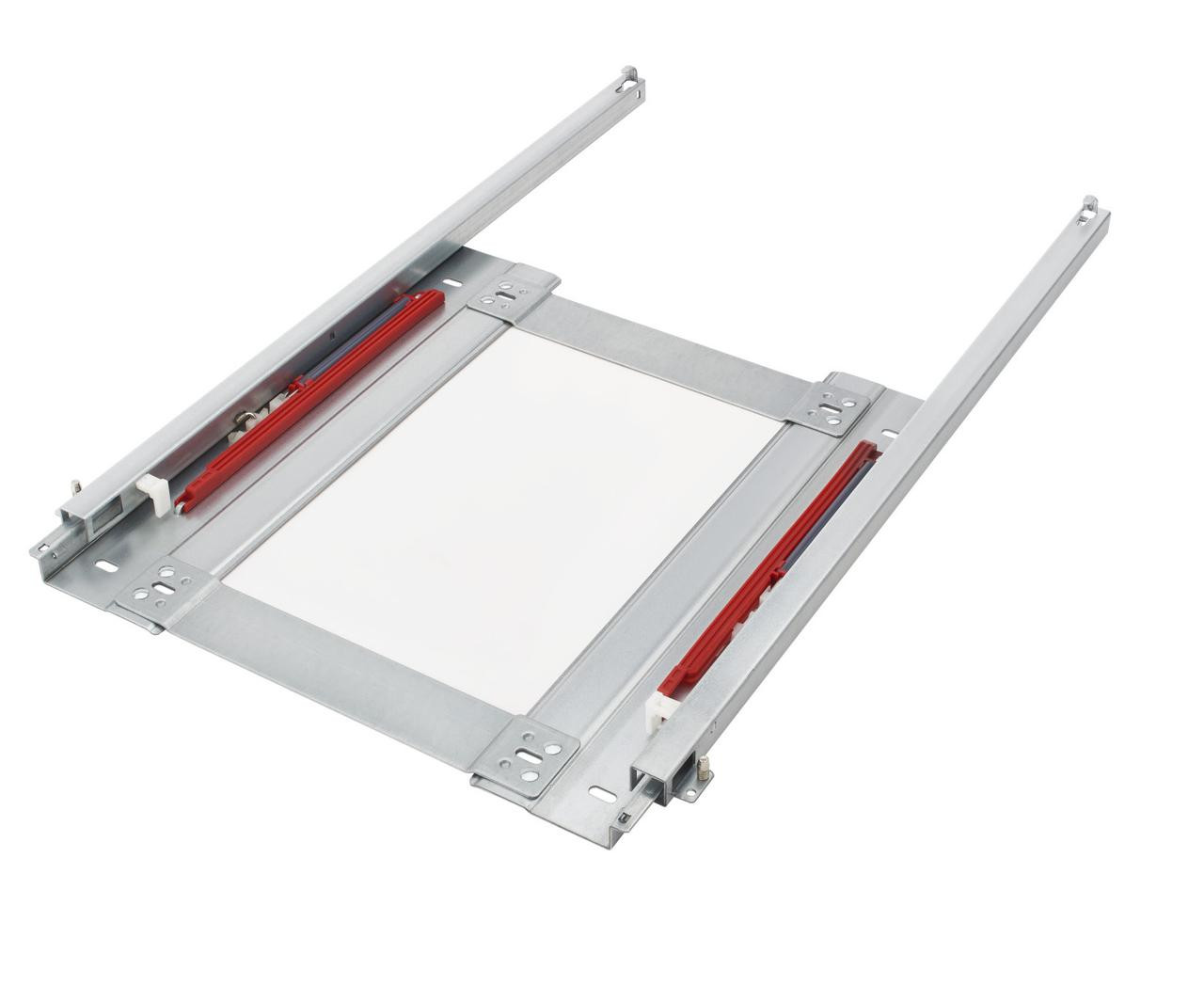

(2) slide configurations:
- 3/4- extension, 33 lb. rated slides with soft-close
- Full-extension, 90 lb. rated slides with BLUMOTION soft-close
Tall drawers feature pegboard bottoms with (3,4) pegs and (6,8) maple pegs
TSCA Title VI compliant
