Product Description

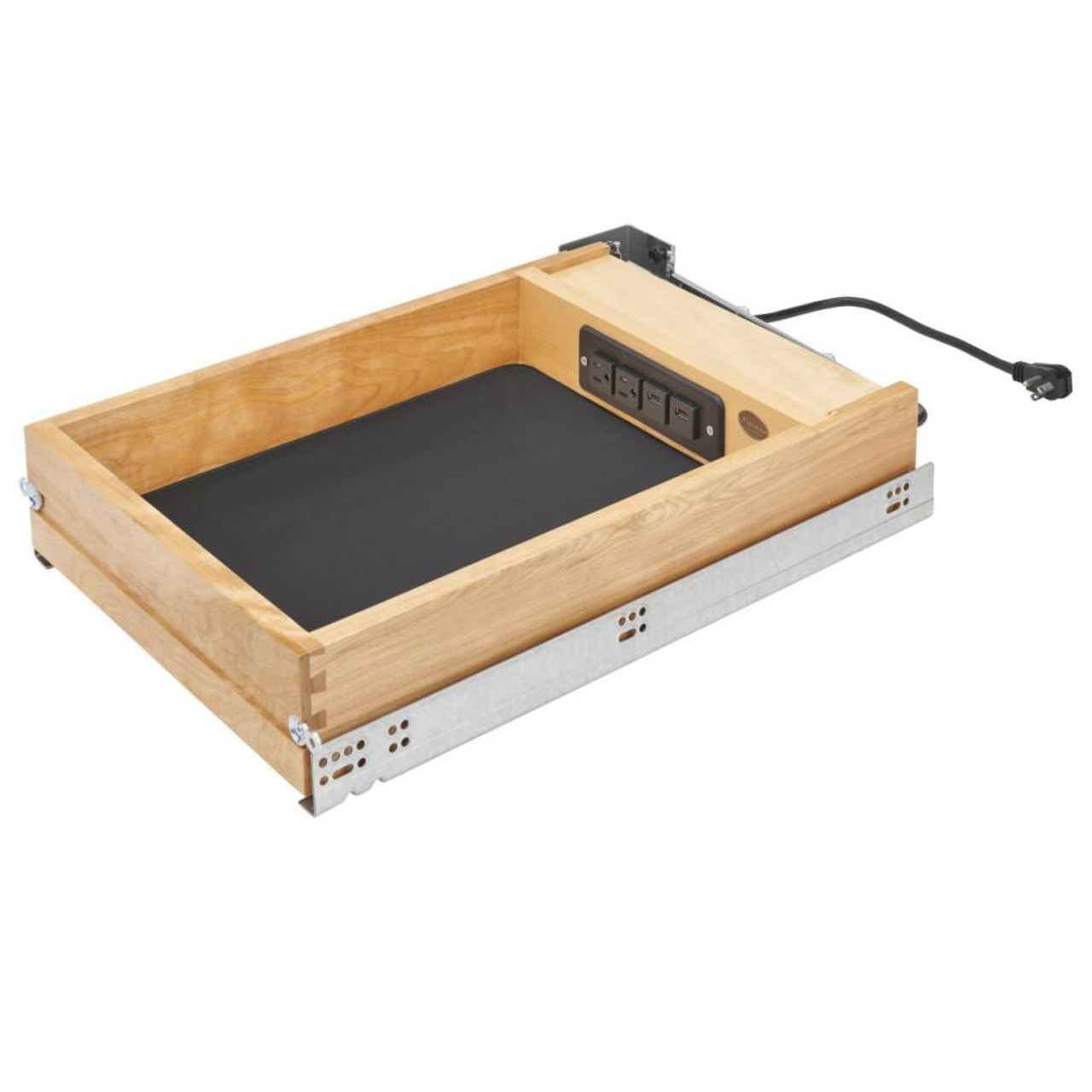

Rev-a-shelf Natural Maple Charging Drawer for Face Frame 18" BCD with Slides 4WCDB-18HSC-1
Charge all your electronics together in one location with Rev-A-Shelf's 4WCDBH Series Charging Drawer System.
Series Name 4WCDB-18HSC-1
Short Description Natural Maple Charging Drawer for Face Frame 18" BCD with Slides
Primary Color Natural Maple
Primary Material Wood
Face Frame Min. Cab. Opening Width (inches) 15"
Face Frame Min. Cab. Opening Depth (inches) 22 3/4"
Face Frame Min. Cab. Opening Height (inches) 4 1/2"
Inset Min. Cab. Opening Width (inches) 15"
Inset Min. Cab. Opening Depth (inches) 23 1/4"
Inset Min. Cab. Opening Height (inches) 4 1/2"
Width (min to max): 15"
Depth (min to max): 22 3/4"
Maximum Depth (inches) 23 3/4"
Height (min to max): 4 5/16"
Door Mountable Required, Included
Installation Type Drawer Replacement
Mount Type Cabinet door, rear and side walls
Drawer Compartments (1) compartment
Primary Finish Semi-gloss
TSCA Title VI Yes
Order Increment 1
SPECIAL FEATURES:
Designed for 18" base cabinet
drawers
Drawer front not included
5/8" drawer side material, natural maple construction with semi-gloss finish
Full-extension, TANDEM, 90 lb. rated, concealed slides with BLUMOTION soft-close
(2) charging configurations:
- (2) 120V plugs and (2) 2.1 amp USB ports
- (4) 2.1 amp USB-A ports w/(1) USB-C adapter
Tamper resistant outlets
Max Current: AC: 12 amps @ 120VAC; USB 2.1 amp & 5 VDC
UL recognized to UL962/CSA-C22.2 No. 0-10
Power cord with NEMA 5 - 15
plug
Integrated cord guide to ensure safe operation
Door mount brackets
Shock absorbent mat, black
Overall safety of this product is determined by its end use
TSCA Title VI compliant
