Product Description

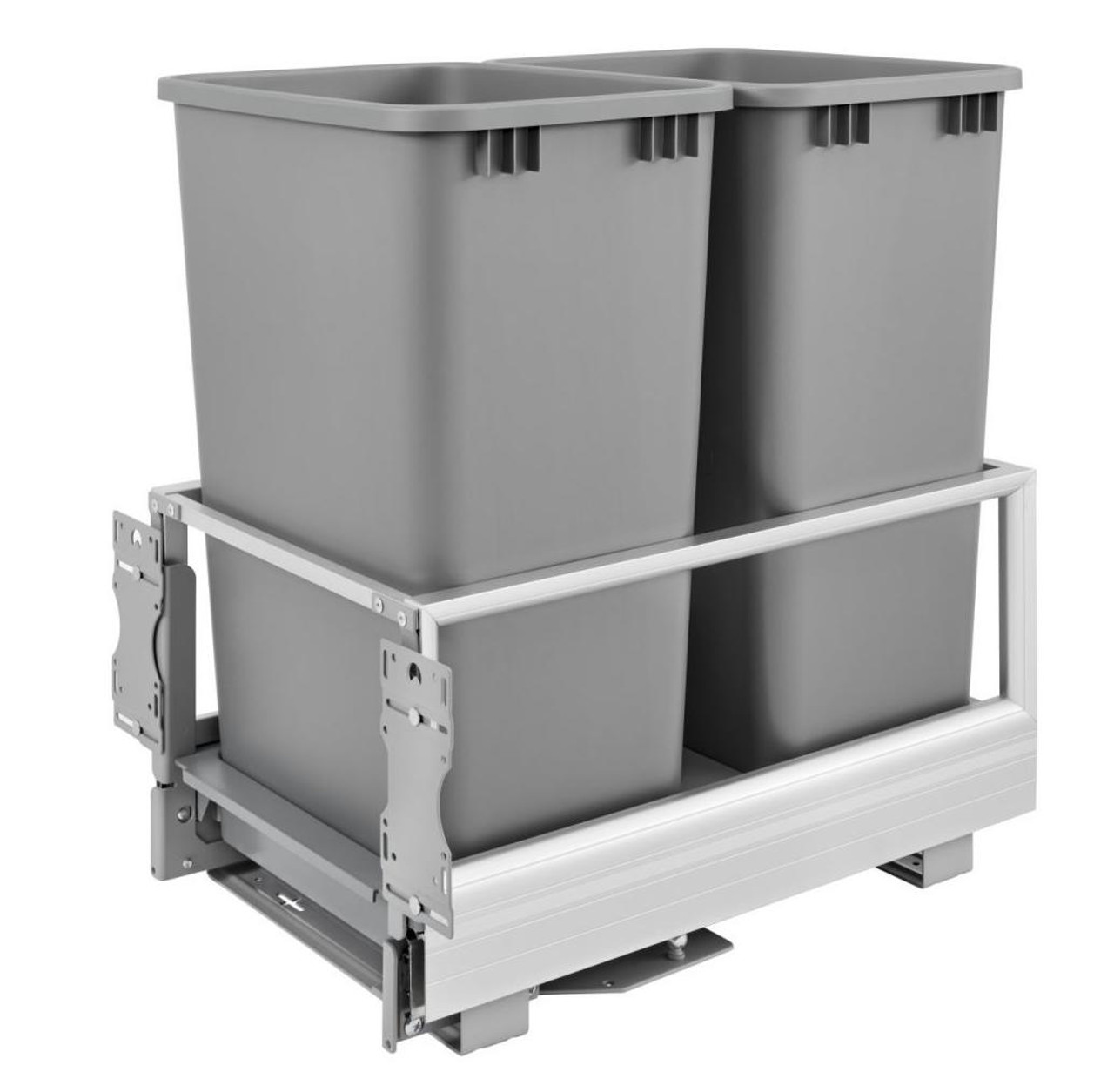

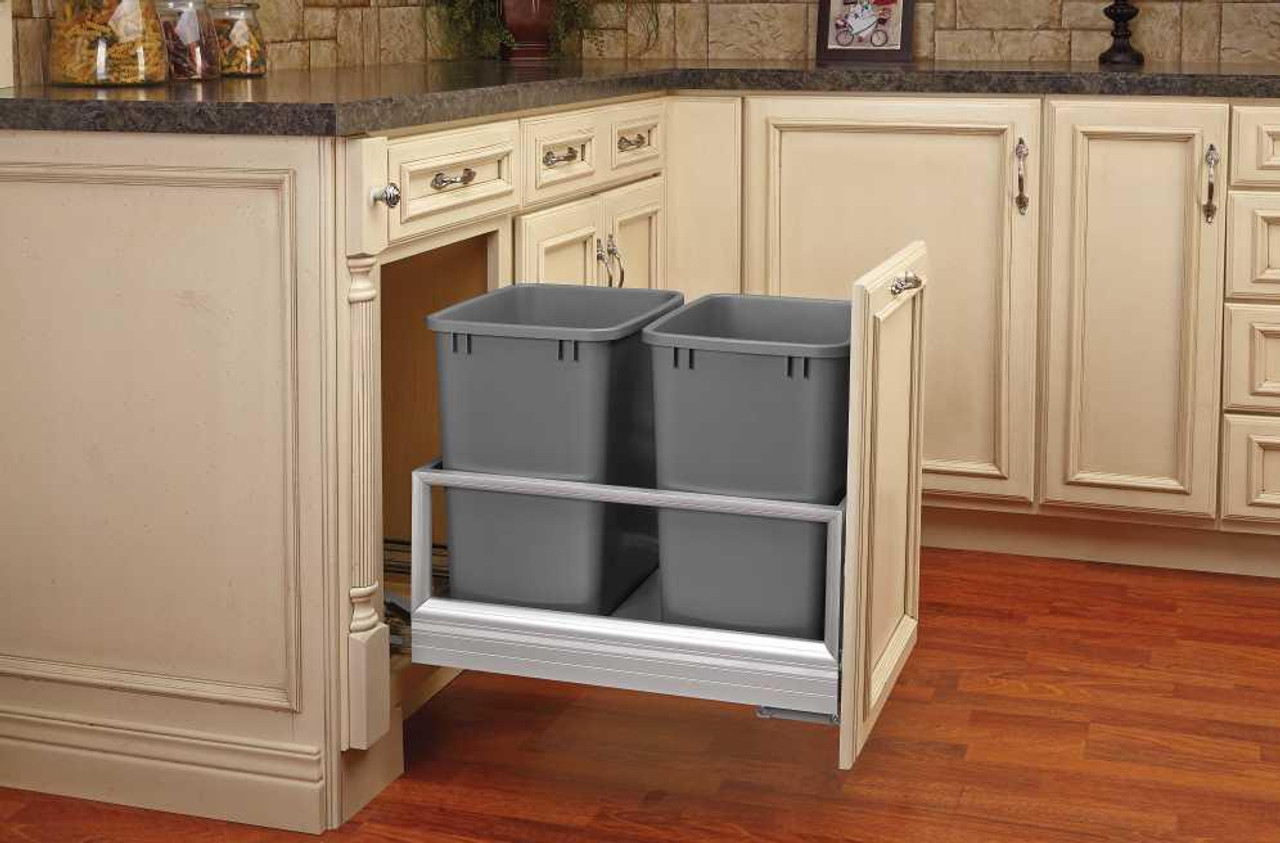

Rev-a-shelf Double 50 Qt. Pull-Out Brushed Aluminum and Silver Waste Container with Rev-A-Motion 5149-2150DM-217
Rev-A-Shelf's 5149 series adds a pinch of luxury to your trash. The sleek anodized aluminum frame glides in and out on the patented soft-close slide system. Door mount brackets included and can adjust to almost any door style.
Series Name 5149-2150DM-217
Short Description Double 50 Qt. Pull-Out Brushed Aluminum and Silver Waste Container with Rev-A-Motion
Primary Color Aluminum
Frame Color Aluminum
Frame Base Color Metallic Silver
Waste Container Color Metallic Silver
Frame Material Aluminum
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 15 3/4"
Face Frame Min. Cab. Opening Depth (inches) 22 1/4"
Face Frame Min. Cab. Opening Height (inches) 23 1/2"
Frameless Min. Cab. Opening Width (inches) 15 3/4"
Frameless Min. Cab. Opening Depth (inches) 22 1/4"
Frameless Min. Cab. Opening Height (inches) 23 1/2"
Inset Min. Cab. Opening Width (inches) 15 3/4"
Inset Min. Cab. Opening Depth (inches) 23"
Inset Min. Cab. Opening Height (inches) 23 1/2"
Width (min to max): 15 19/32"
Depth (min to max): 22 1/32"
Height (min to max): 23 9/32"
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet door and floor
Primary Finish Anodized
TSCA Title VI No
Number of Waste Containers 2
Waste Container Capacity 50.000000
Order Increment 1
Patent Number 8,939,526|9,049,930|8,091,971
Designed for 15", 18" and 21" base cabinets
Single 35 and 50 qt. and double 27, 35 and 50 qt. polymer containers, metallic
silver or white
Single and double 32 qt. stainless steel containers

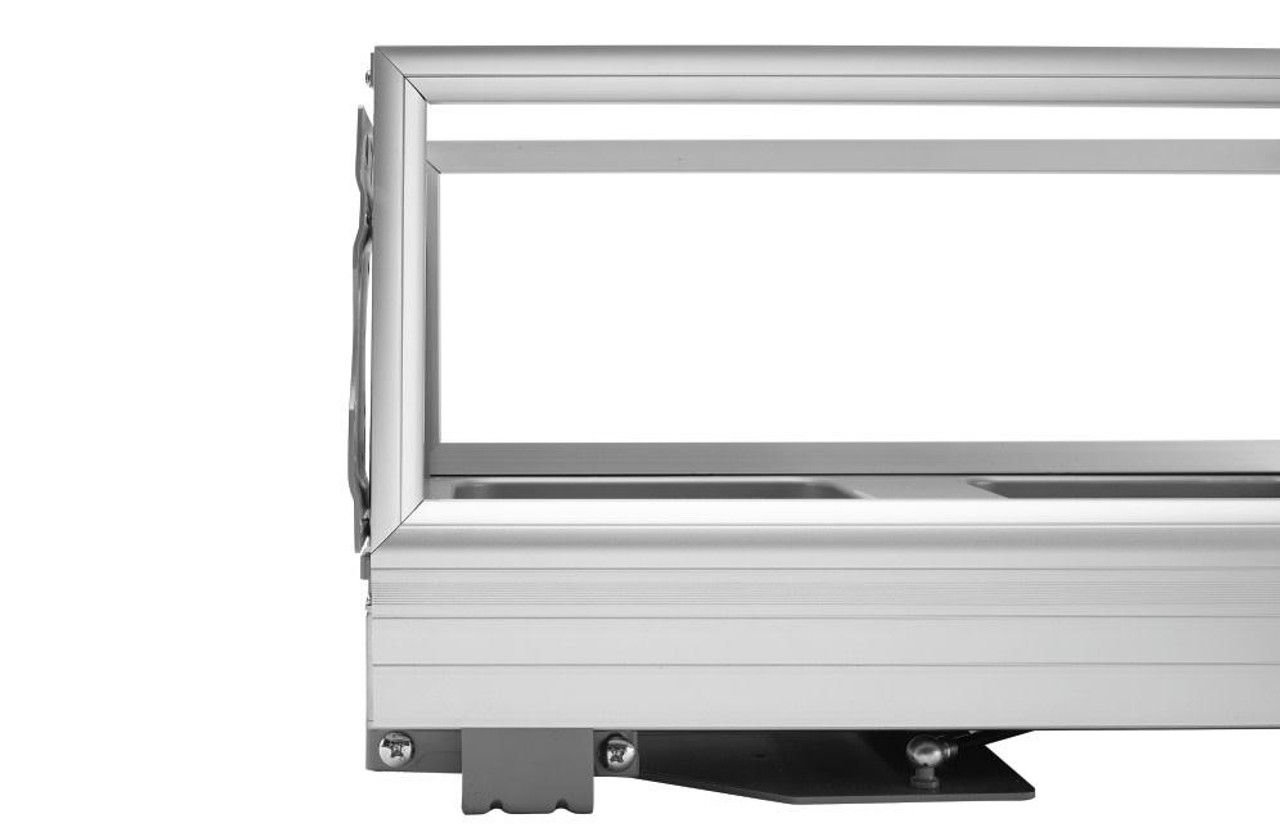

Patented anodized aluminum frame, metallic silver or white base (US Patent No. 9,049,930)
Full-extension with 1-1/2" over-travel, ball-bearing, 150 lb. rated, concealed slides with Rev-A-Motion soft-open/soft-close (US Patent No. 8,091,971)
Rear storage with all single units

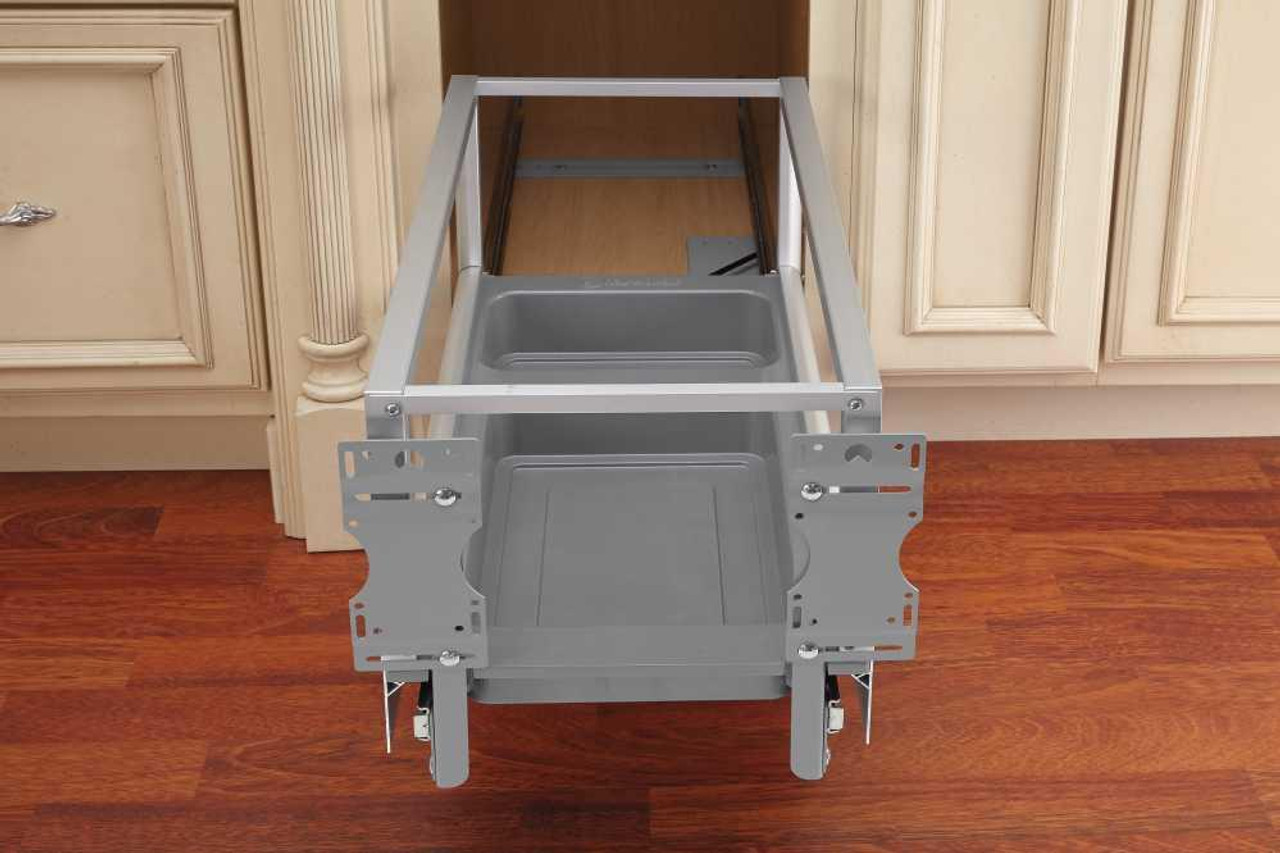

Mounts to cabinet door and floor

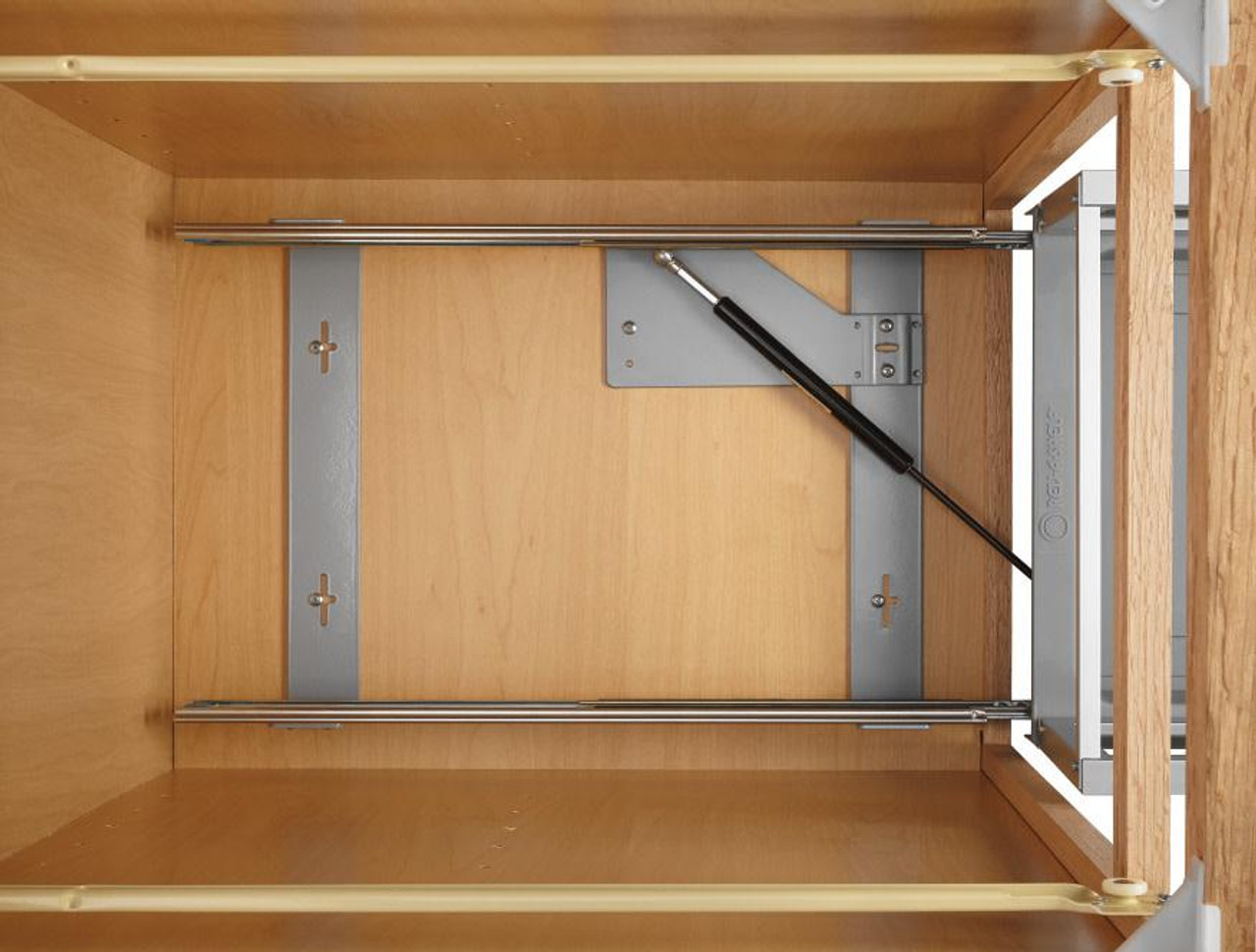

Patented door mount brackets with 5" of adjustability (US Patent No. 8,939,526)
35 and 50 qt. polymer lids available (sold separately)
