Product Description

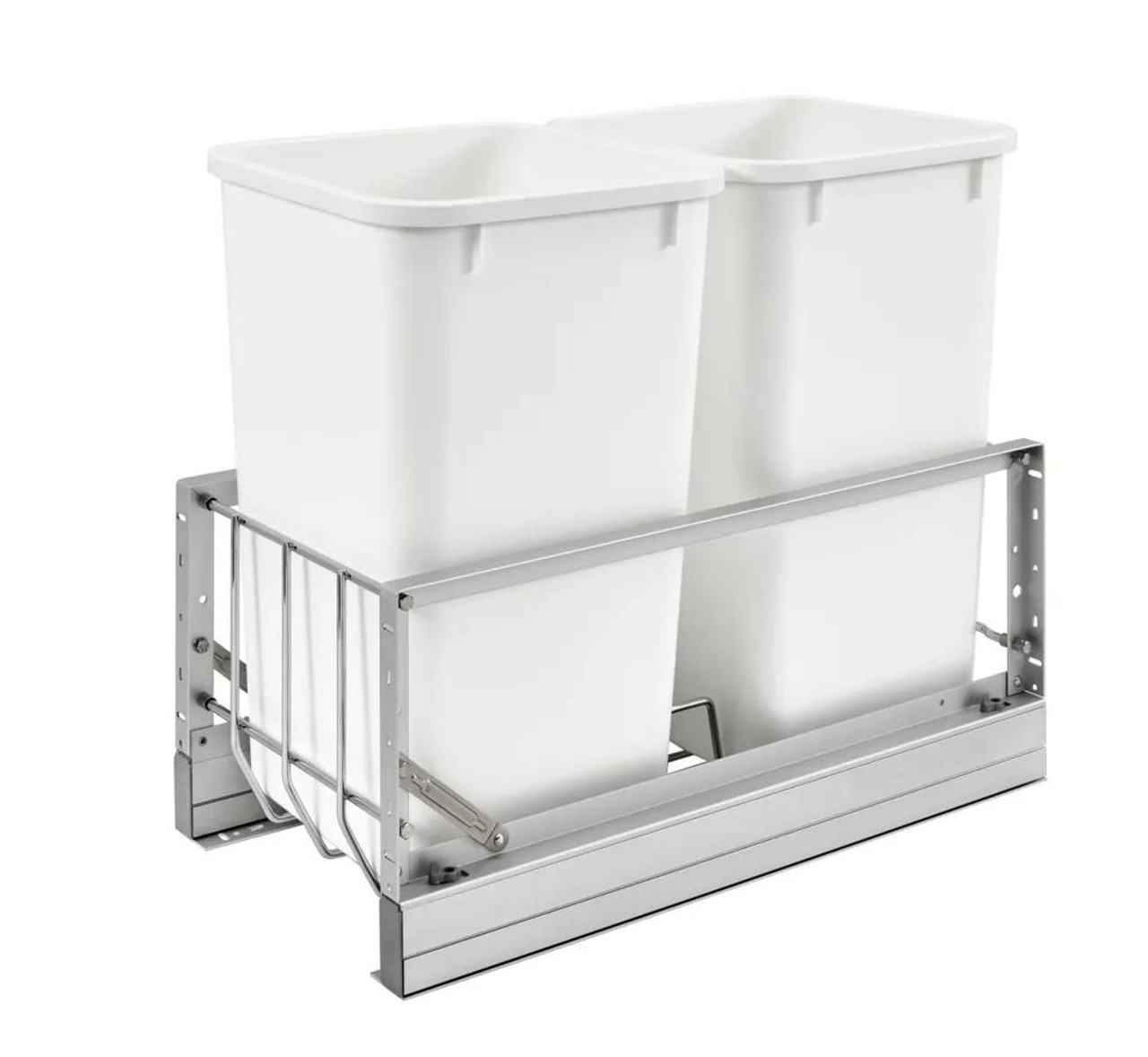

Rev-a-shelf Double 27 Qt. Pull-Out Brushed Aluminum and Silver Waste Container 5349-1527DM-217
Rev-A-Shelf's 5349 series waste containers are definitely the premiere waste containers. These units are manufactured with Italian influences with brushed aluminum frame and a soft closing slides that glide in and out with complete ease. The included door mount hardware finish the look and allow you to mount your existing cabinet door directly to the waste container. Get your waste container off the floor and hide it inside one of your base cabinets.
Series Name 5349-1527DM-217
Short Description Double 27 Qt. Pull-Out Brushed Aluminum and Silver Waste Container
Primary Color Aluminum
Frame Color Aluminum
Waste Container Color Metallic Silver
Frame Material Aluminum
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 12"
Face Frame Min. Cab. Opening Depth (inches) 22 1/2"
Face Frame Min. Cab. Opening Height (inches) 19 1/2"
Frameless Min. Cab. Opening Width (inches) 12"
Frameless Min. Cab. Opening Depth (inches) 22 1/2"
Frameless Min. Cab. Opening Height (inches) 19 1/2"
Inset Min. Cab. Opening Width (inches) 12"
Inset Min. Cab. Opening Depth (inches) 23 1/4"
Inset Min. Cab. Opening Height (inches) 19 1/2"
Width (min to max): 11 21/32"
Depth (min to max): 22 7/32"
Height (min to max): 18 29/32"
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet door and floor
Primary Finish Anodized
TSCA Title VI No
Number of Waste Containers 2
Waste Container Capacity 27.000000
Order Increment 1
Designed for 15", 18" and 21" base cabinets
Single 35 and 50 qt. and double 27, 35 and 50 qt. polymer containers, metallic silver or white
10" high door mountable aluminum frame
Full-extension with 1-1/2" over-travel, brushed aluminum, 85 lb. rated slides with soft-close
Rear storage with all single units
Mounts to cabinet door and floor
Built-in door mount brackets
35 and 50 qt. polymer lids available (sold separately)
Door Mount Extension
Bracket:
Designed for our 5349 Aluminum Bottom Mount Series
Extension brackets attach to the existing door brackets
Eliminates need for a sub door
Allow adjustment from 3/4" - 2-1/2" per side
