Rev-a-shelf Deluxe Sink Front Tip-Out Trays 22" - 24" - 30" LD-6591 Series

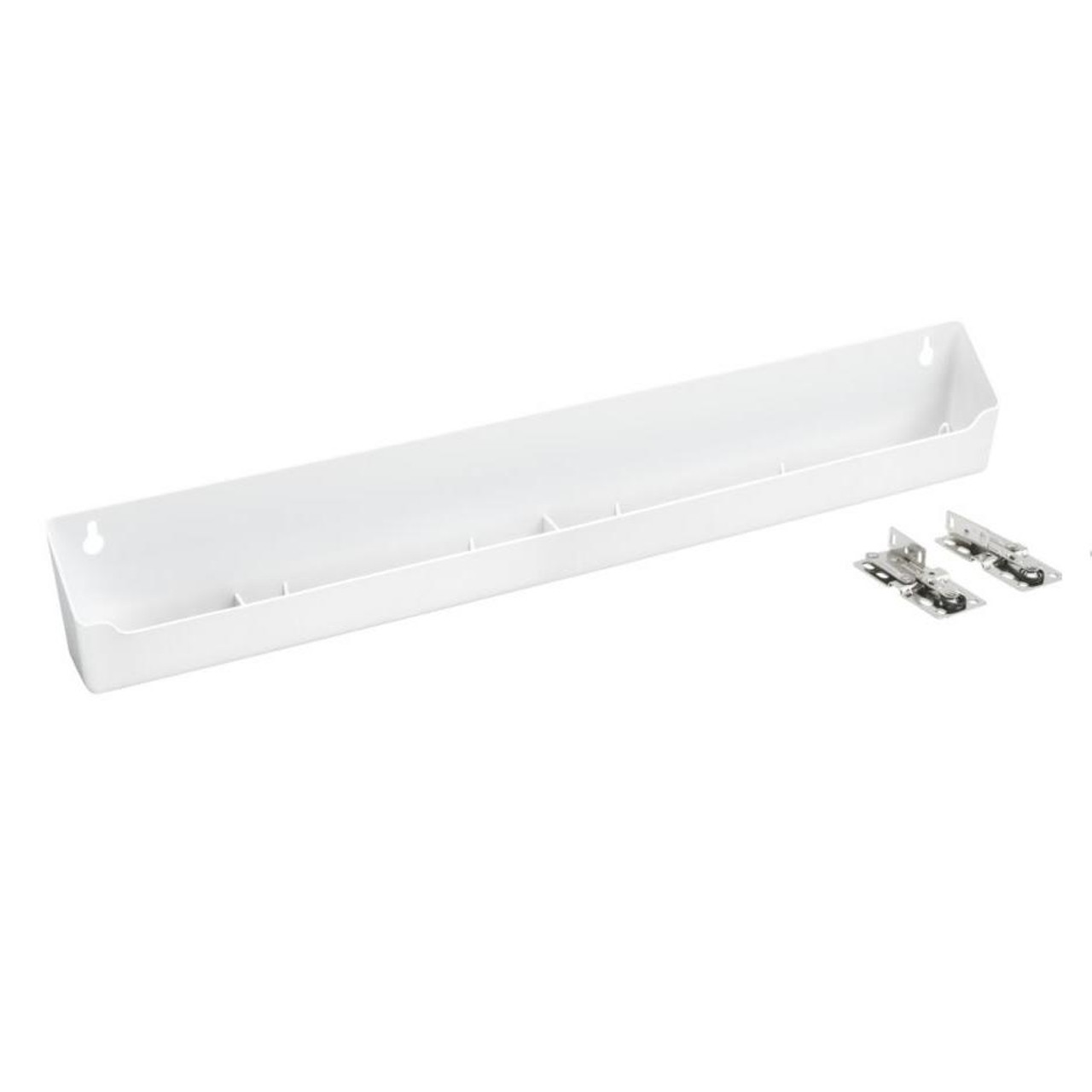

Wasted space is a thing of the past with the addition of our economical deluxe molded sink front trays. The three custom widths 22", 24" and 30-1/2" are available in white or almond. Sold individually with 45 degree pivot hinges.
Series Name LD-6591-22-11-1
Short Description 22" White Tip-Out Tray LD Deluxe w/2 Pair of 45 Degree Hinges for Sink Base
Primary Color White
Primary Material Polymer
Face Frame Min. Cab. Opening Width (inches) 24 1/4"
Face Frame Min. Cab. Opening Depth (inches) 2 3/8"
Face Frame Min. Cab. Opening Height (inches) 3 7/8"
Frameless Min. Cab. Opening Width (inches) 24 1/4"
Frameless Min. Cab. Opening Depth (inches) 2 3/8"
Frameless Min. Cab. Opening Height (inches) 3 7/8"
Inset Min. Cab. Opening Width (inches) 24 1/4"
Inset Min. Cab. Opening Depth (inches) 3 1/8"
Inset Min. Cab. Opening Height (inches) 3 7/8"
Width (min to max): 22"
Series Name LD-6591-24-11-1
Short Description 24" White Tip-Out Tray LD Deluxe w/2 Pair of 45 Degree Hinges for Sink Base
Primary Color White
Primary Material Polymer
Face Frame Min. Cab. Opening Width (inches) 26 1/2"
Face Frame Min. Cab. Opening Depth (inches) 2 3/8"
Face Frame Min. Cab. Opening Height (inches) 3 7/8"
Frameless Min. Cab. Opening Width (inches) 26 1/2"
Frameless Min. Cab. Opening Depth (inches) 2 3/8"
Frameless Min. Cab. Opening Height (inches) 3 7/8"
Inset Min. Cab. Opening Width (inches) 26 1/2"
Inset Min. Cab. Opening Depth (inches) 3 1/8"
Inset Min. Cab. Opening Height (inches) 3 7/8"
Width (min to max): 24 5/16"
Series Name LD-6591-30-11-1
Short Description 30" White Tip-Out Tray LD Deluxe w/2 Pair of 45 Degree Hinges for Sink Base
Primary Color White
Primary Material Polymer
Face Frame Min. Cab. Opening Width (inches) 32 3/4"
Face Frame Min. Cab. Opening Depth (inches) 2 3/8"
Face Frame Min. Cab. Opening Height (inches) 3 7/8"
Frameless Min. Cab. Opening Width (inches) 32 3/4"
Frameless Min. Cab. Opening Depth (inches) 2 3/8"
Frameless Min. Cab. Opening Height (inches) 3 7/8"
Inset Min. Cab. Opening Width (inches) 32 3/4"
Inset Min. Cab. Opening Depth (inches) 3 1/8"
Inset Min. Cab. Opening Height (inches) 3 7/8"
Width (min to max): 30 7/16"
All Trays:
Depth (min to max): 2 1/8"
Height (min to max): 3 13/16"
Installation Type Door/Wall Mount
Mount Type Sink front panels
Primary Finish Glossy
TSCA Title VI No
Order Increment 1
Patent Number 7,635,171
Glossy polymer construction, almond or white
Each set: (1) standard tray with ring holder and soap dish
Mounts to sink front panels
(1) pair of 45-degree patented LD pivot hinges (US Patent No. 7,635,171)
