Product Description

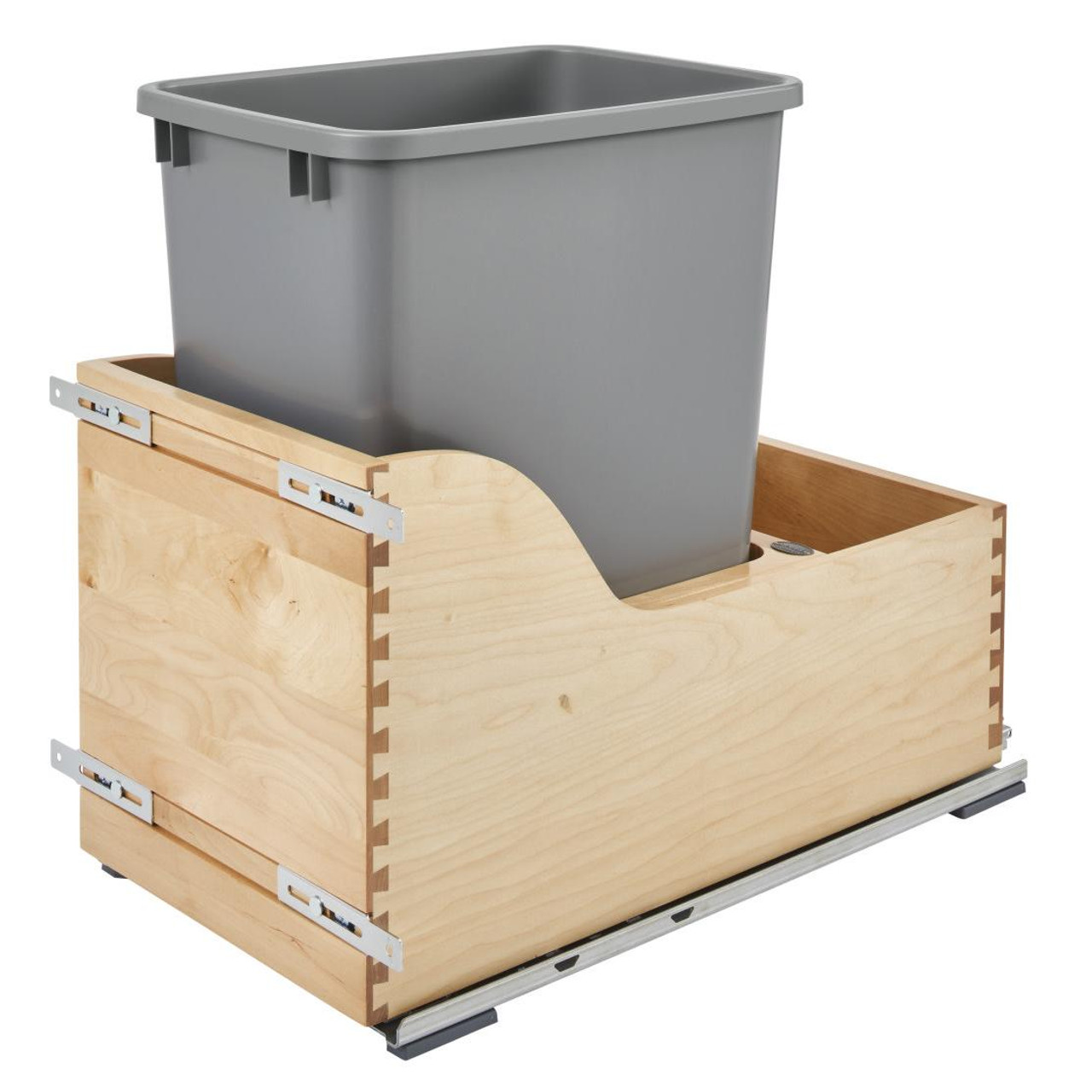

Rev-A-Shelf 35 Quart Single Container Wood Bottom Mount Waste Container with BLUMOTION Soft-Close 4WCSC-1535DM19-1
Series Name 4WCSC-1535DM19-1
Short Description Natural Maple Reduced Depth Bottom Mount Waste Pullout with Single Metallic Silver 35 qt. Container and TANDEM Soft-Close
Primary Color Natural Maple
Frame Color Natural maple
Waste Container Color Metallic Silver
Frame Material Wood
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 12"
Face Frame Min. Cab. Opening Depth (inches) 18 21/32"
Face Frame Min. Cab. Opening Height (inches) 19 3/4"
Frameless Min. Cab. Opening Width (inches) 12"
Frameless Min. Cab. Opening Depth (inches) 18 21/32"
Frameless Min. Cab. Opening Height (inches) 19 3/4"
Inset Min. Cab. Opening Width (inches) 12"
Inset Min. Cab. Opening Depth (inches) 19 1/2"
Inset Min. Cab. Opening Height (inches) 19 3/4"
Width (min to max): 12"
Depth (min to max): 18 21/32"
Maximum Depth (inches) 18 5/8"
Height (min to max): 19 1/2"
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet door and floor
Primary Finish Semi-gloss
TSCA Title VI Yes
Number of Waste Containers 1
Waste Container Capacity 35.000000
Order Increment 1
Patent Number 8,047,621|8,388,076|7,204,569|9,756,941
Designed for 15", 18" and 21" base cabinets
Single 32 qt., polymer container, gray or Single and double 35 and 50 qt. polymer containers, metallic silver
- 4WCSC-128 single 8 L polymer container, metallic silver
Natural maple dovetail frame with semi-gloss finish
Full-extension with 3/4" over-travel, MOVENTO, 135 lb. rated, concealed slides with BLUMOTION soft-close
- 4WCSC-128 full-extension, 90 lb. rated, concealed slides with BLUMOTION soft-close
Available with Blum SERVO-DRIVE technology, uses standard 110V wall socket. (Not available on 4WCSC-128)
Rear storage with all single 35 and 50 qt. units
Mounts to cabinet door and floor
- 4WCSC-128 mounts to cabinet floor
Patented door mount brackets with micro-adjustment (US Patent No. 8,388,076) (Not available on 4WCSC-128)
SERVO-DRIVE and TIP-ON technology available (sold separately)
4WCSC-128 includes lid, white
35 and 50 qt. polymer lids available (sold separately)
Depending on cabinet construction and pull hardware, a lid on the rear waste bin may not fully function
TSCA Title VI Compliant
