Product Description

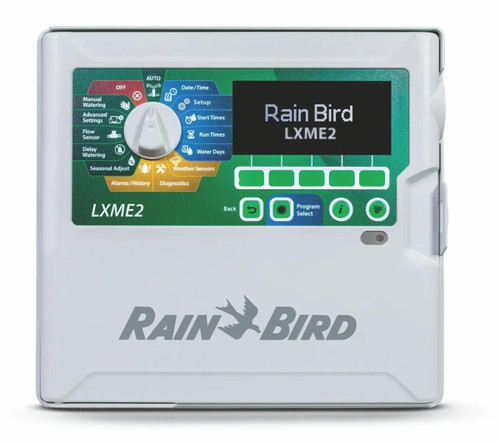

RainBird ESPLXME2P Controller 12-station base unit expandable to 48 stations
Water Management Features
Station Count: 12 Station Base Unit, Expandable Up to 48 Stations. (12 Station Expansion Modules)
FloZones (Master Valve + Flow Sensor.): 1 (One)
Booster Pump:V. 2/P for Station Level Booster Pump Control
Programs: 40
Simulstations: 5
Start Times: 10 Per Program
Flow Management: Yes (Factory Installed PRO Smart Module)
Optional Accessories: Powder-Coated or Stainless Steel Metal Cabinets and Pedestals.
Controller Features
Large backlit LCD display with easy to navigate softkey user interface
Hot-swappable modules, no need to power down the controller to add/remove modules
MV1 – Normally closed or Normally open Master valve/pump start circuit
Master valve delay and inter-station delay
6 user-selectable languages
Non-Volatile (100- year) program memory
Standard 10kV surge protection
The front panel is removable and programmable under battery power
Model ESPLXME2P
Zones/Stations 12-48 expandable
Indoor/Outdoor Indoor/Outdoor
Controller Type Modular/Expandable
Dimensions
Width: 14.32 in. (36,4 cm) Height:12.69 in. (32,2 cm) Depth: 5.50 in. (14,0 cm)
Features Flow Sensing
Electrical Specifications
Input required: 120 VAC ± 10%, 60Hz; 230 VAC +10% -6%, 50 Hz.
Output: 26.5 VAC 1.9A
Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
Multi-valve capacity: Maximum five 24 VAC, 7 VA solenoid valves simultaneous operation including the master valve, maximum two solenoid valves per station module
