Product Description

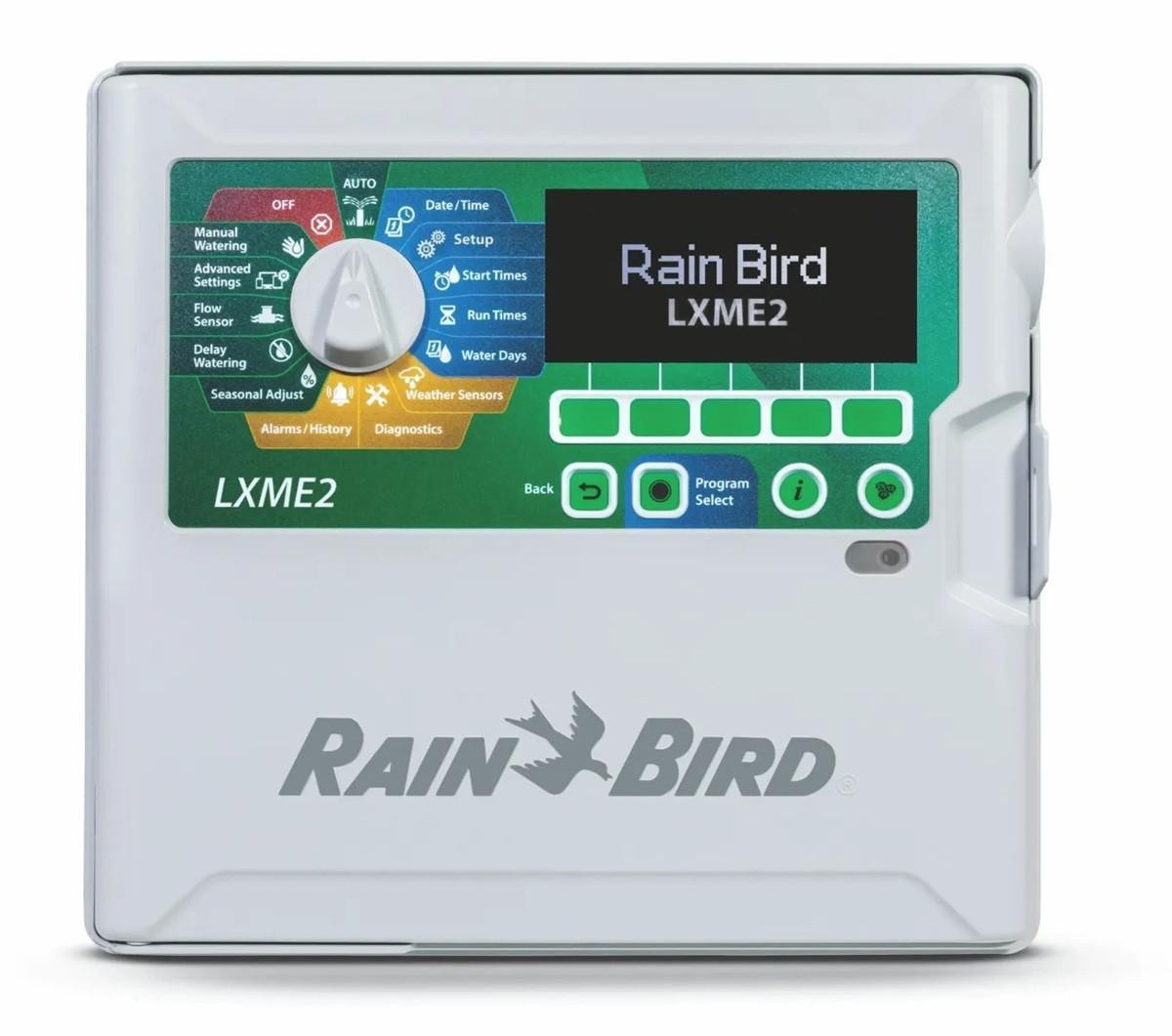

RainBird ESPLXME2 Controller 12-station base unit expandable to 48 stations
Water Management Features
Programs: 40
Start Times: 10 Per Program
SimulStations™ are programmable to allow up to 5 stations to operate at the same time
Water Windows by program plus Manual MV Water Window
Cycle+Soak™ by station
Rain Delay
365-Day Calendar Day Off
Programmable Station Delay by program
Weather Sensor programmable by station to prevent or pause watering
Program or Global Monthly Seasonal Adjust
Controller Features
Large backlit LCD display with easy to navigate softkey user interface
Hot-swappable modules, no need to power down the controller to add/remove modules
MV1 – Normally closed or Normally open Master valve/pump start circuit
Master valve delay and inter-station delay
6 user-selectable languages
Non-Volatile (100- year) program memory
Standard 10kV surge protection
The front panel is removable and programmable under battery power
Model ESPLXME2
Zones/Stations 12-48 expandable
Indoor/Outdoor Indoor/Outdoor
Controller Type Modular/Expandable
Dimensions
Width: 14.32 in. (36,4 cm) Height:12.69 in. (32,2 cm) Depth: 5.50 in. (14,0 cm)
Features Battery Backup, Battery-programmable, Cycle+Soak, Delay Between Stations
Electrical Specifications
Input required: 120 VAC ± 10%, 60Hz; 230 VAC +10% -6%, 50 Hz.
Output: 26.5 VAC 1.9A
Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
Multi-valve capacity: Maximum five 24 VAC, 7 VA solenoid valves simultaneous operation including the master valve, maximum two solenoid valves per station module
