Product Description

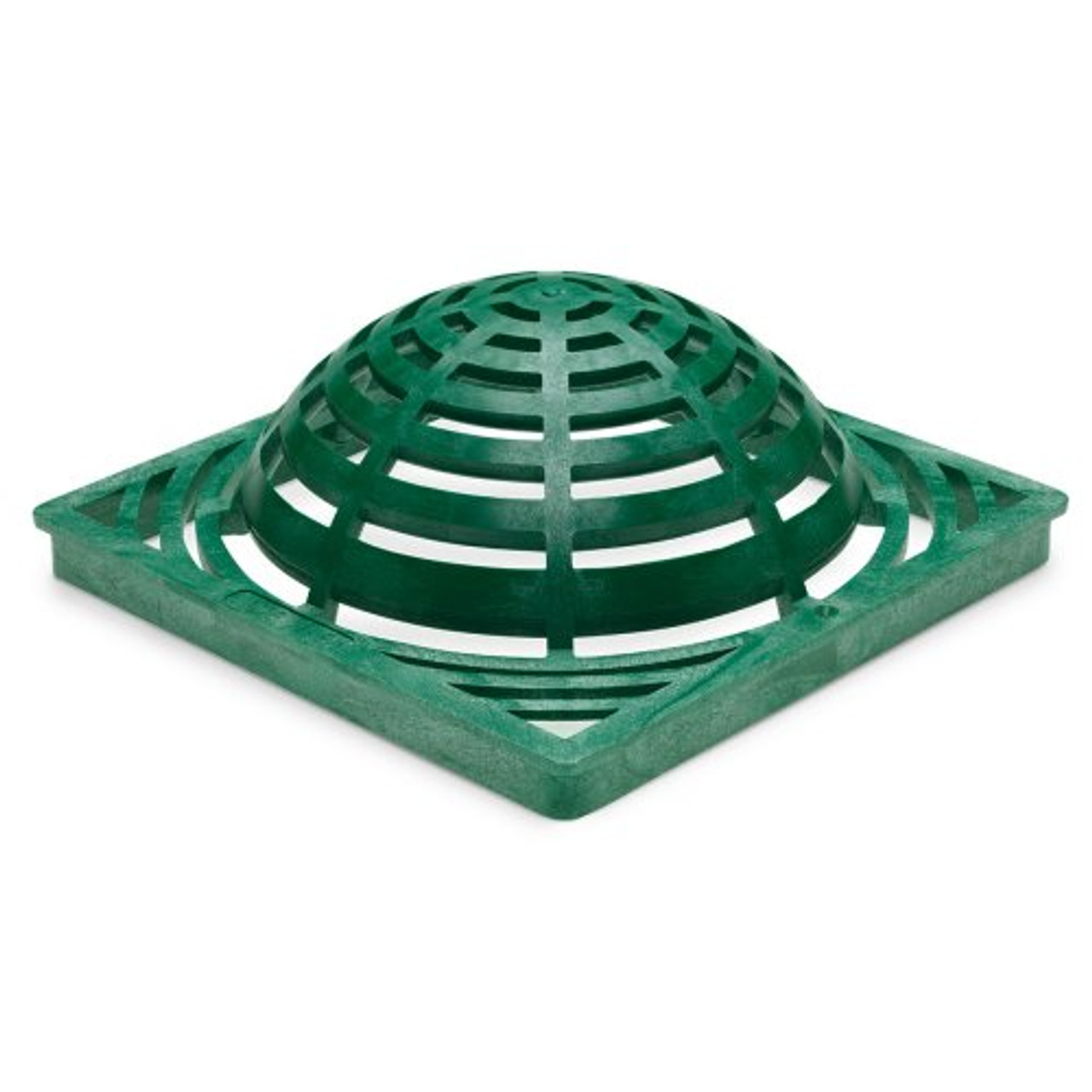

RainBird DG12SAG - 12 inch Plastic Square Atrium Drainage Grate - Green
Manufactured from structurally foamed High-Density Polyethylene (HDPE)
UV stabilized to protect from sun degradation
Atrium (domed) profile fits 12" Square Catch Basins and 12" Square Low-Profile Basins
Includes two screw holes to secure to basin. Use #6 1.5" long Phillips flat head stainless screws (not included)
Made in the USA
A rugged square grate designed to be used in conjunction with a catch basin. This grate is manufactured from a structurally foamed High Density Polyethylene (HDPE) with a UV inhibitor to reduce sun damage. This grate has large opening slots for maximum flow while still preventing large debris from entering the drainage system. Typical application would be areas where floating debris would block a flat grate. For safety reasons and to prevent vandalism or theft the grate has two holes enabling it to be screwed onto the basin.
Specifications
Maximum flow rating: 65 GPM
Open surface area: 50 sq in
Open slot width: 7/16 in
Grate Type Atrium
Grate Shape Square
Size 12 inch
Color Green
