Product Description
RainBird 200PEB 2" PEB/PESB Series Electric Valve
Best-in-class Professional Series Plastic Irrigation Valves
Features
• Durable glass-filled nylon construction with fabric-reinforced rubber
diaphragm for long life and reliable performance
• Globe configuration
• Normally closed, forward flow design
• Slow closing to prevent water hammer and subsequent system damage
• Low flow capability for a wide range of applications
• One-piece solenoid design with captured plunger and spring for easy
servicing. Prevents loss of parts during field service
• Flow control handle adjusts water flows as needed
• Manual internal bleed manually operates the valve without allowing
water into the valve box; allows pressure regulator to be adjusted
without turning the valve on at the controller first
• Manual external bleed permits flushing debris from the system.
Recommended for system start up and after repairs
• Stainless steel studs molded into the body. Bonnet can be attached and
removed more easily and more often without damaging threads
• Nylon scrubber scrapes a stainless steel screen to clean and break down
grit and plant material. Prevents debris build-up and clogging (PESB
Series only)
• Five-year trade warranty
Specifications
• Pressure: 20 to 200 psi (1.4 to 13.8 bar)
• Flow without PRS-D option: 0.25 to 200 GPM (0.06 to 45 m3/h;
0.02 to 12.60 l/s)
• Flow with PRS-D option: 5 to 200 GPM (1.14 to 45 m3/h;
0.32 to 12.60 l/s)
• Temperature: Up to 150° F (66° C)
• 24VAC 50/60Hz (cycles/sec) solenoid power requirement
• Inrush current: 0.41A (9.9VA) at 50/60Hz
• Holding current: 0.14A (3.43VA) at 50/60Hz
• Solenoid coil resistance: 30-39 Ohms, nominal
Options
• Accommodates optional, field installed PRS-D pressure regulating
module to ensure optimum sprinkler performance. Regulates up to 100
psi (6.9 bar)
• Accepts latching solenoid for use with Rain Bird battery-operated
controllers up to 150 psi (10,35 bar)
• Compatible with ESP-LXD decoders
• Optional purple flow control handle for non-potable water applications
PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1 1/2" and 2")
Dimensions
Model Height Length Width
• 100-PEB and 100-PESB: 61⁄2" (16.5 cm) 4" (10.2 cm) 4" (10.2 cm)
• 150-PEB and 150-PESB: 8" (20.3 cm) 6" (15.2 cm) 6" (15.2 cm)
• 200-PEB and 200-PESB: 8" (20.3 cm) 6" (15.2 cm) 6" (15.2 cm)
Note: The PRS-Dial option adds 2" (5.1 cm) to valve height
Models
• 100-PEB and 100-PESB: 1" NPT
• 150-PEB and 150-PESB: 11⁄2" NPT
• 200-PEB and 200-PESB: 2" NPT
BSP threads available; specify when ordering

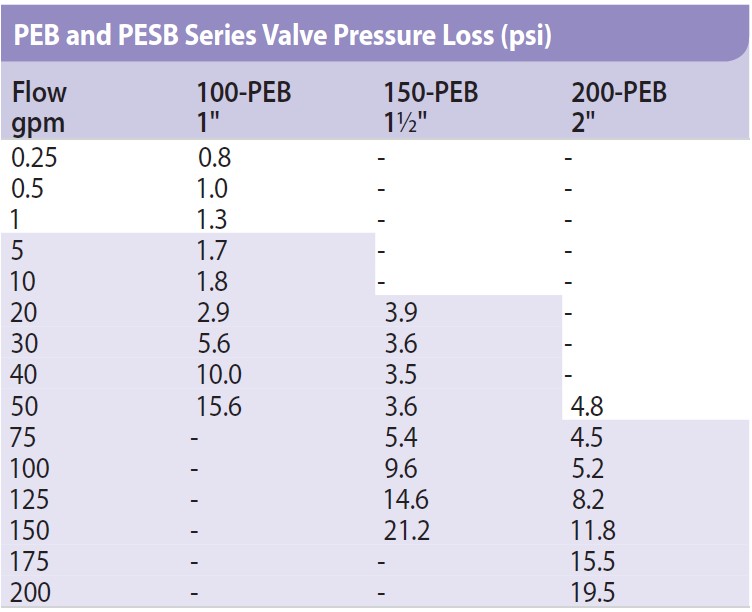

Recommendations
1. Rain Bird recommends flow rates in the supply line not to exceed 7.5 ft/sec
(2.29 m/s) in order to reduce the effects of water hammer
2. For flows below 5 gpm (1.14 m3⁄h; 19.2 l/m), Rain Bird recommends use of upstream filtration to prevent
debris from collecting below the diaphragm
3. For flows below 10 gpm (2.27 m3⁄h; 37.8 l/m) Rain Bird recommends the flow
control stem be turned down two full turns from the fully open position
4. For PRS-Dial applications, Rain Bird recommends the installation of a pressure-regulating master valve
or inline pressure regulator when the inlet pressure exceeds 100 psi (6.9 bar)
